170 - CONTROL VALVE COMPONENTS (TOP AND BOTTOM, RELIEF VALVES)

Запчасти John Deere 0 170 - CONTROL VALVE COMPONENTS (TOP AND BOTTOM, RELIEF VALVES) 3360 Hydraulic System

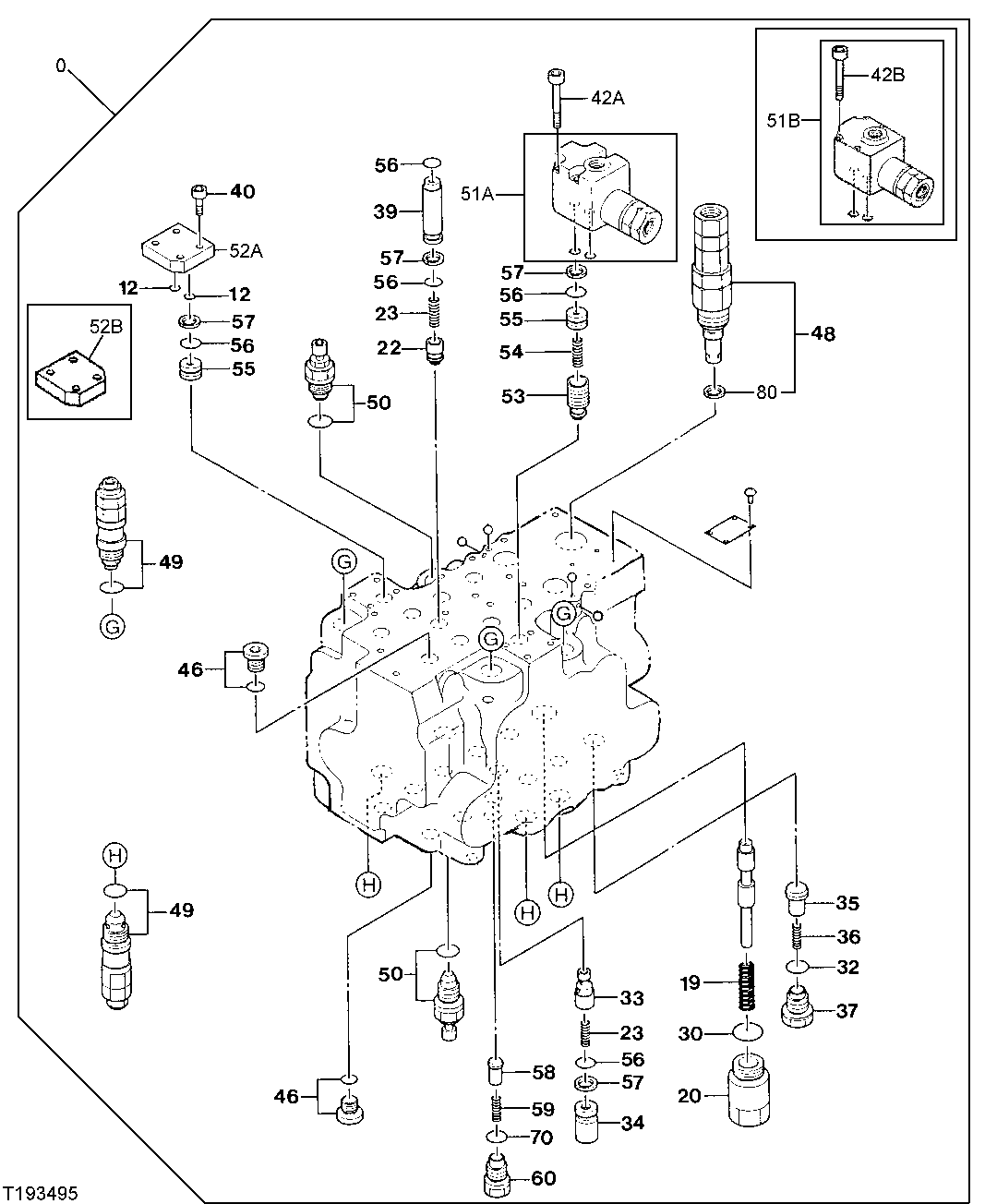

Схема запчастей John Deere 0 - 170 - CONTROL VALVE COMPONENTS (TOP AND BOTTOM, RELIEF VALVES) 3360 Hydraulic System
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

4368270

Hyd Actuated Control Valve

(WITHOUT OFFSET BOOM) (SUB FOR AP 35928 (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTE D ON PREVIOUS AND FOLLOWING PAGES) )

1шт.

4401863

Hyd Actuated Control Valve

(WITH OFFSET BOOM) (ADDITION AL COMPONENTS ON OTHER PAGES)

1шт.

12

CH11568

Packing

2шт.

19

0714601

Spring

(SUB FOR AT250534)

1шт.

20

0714602

Fitting Plug

(SUB FOR AT250535)

1шт.

22

0332941

Poppet

(SUB FOR TH110342)

1шт.

23

0455207

Spring

(SUB FOR AT200323)

2шт.

30

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

32

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

33

0455204

Poppet

(SUB FOR AT200320)

1шт.

34

0455205

Piston

(SUB FOR AT200321)

1шт.

35

0714503

Poppet

(SUB FOR AT250531)

1шт.

36

0225209

Spring

(SUB FOR TH105754)

1шт.

37

0714504

Fitting Plug

(SUB FOR AT250532)

1шт.

39

0714603

Spool

(SUB FOR AT250536)

1шт.

40

19M7603

Screw

M6 X 20

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7105

Washer

6 X 12 X 1.600 mm

4шт.

42A

0714404

Screw

4шт.

42B

0617208

Screw

4шт.

46

0695007

Fitting Plug

(SUB FOR AT250518)

2шт.

48

0714604

Pressure Relief Valve

(SUB FOR AT250537)

1шт.

49

4608478

Pressure Relief Valve

(SUB FOR AT250689 OR 4396776)

6шт.

50

0714605

Flow Control Hyd. Valve

(SUB FOR AT250538)

2шт.

51A

Valve

(NLA ) (SUB 0714612)

1шт.

51B

0714612

Valve

1шт.

52A

Plate

NLA (SUB 0714613)

1шт.

52B

0714613

Plate

1шт.

53

0714608

Poppet

(SUB FOR AT250541)

1шт.

54

0714609

Spring

(SUB FOR AT250542)

1шт.

55

0714610

Spacer

(SUB FOR AT250543)

2шт.

56

4140438

O-Ring

12.300 X 2.400 mm (31/64" X 3/32") (SUB FOR TH110456)

5шт.

57

4040813

Back-Up Ring

(SUB FOR TH110449)

4шт.

58

0455201

Poppet

(SUB FOR AT200317)

1шт.

59

0455202

Spring

(SUB FOR AT200318)

1шт.

60

0714611

Fitting Plug

(SUB FOR AT250544)

1шт.

70

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

80

4500216

O-Ring

1шт.
