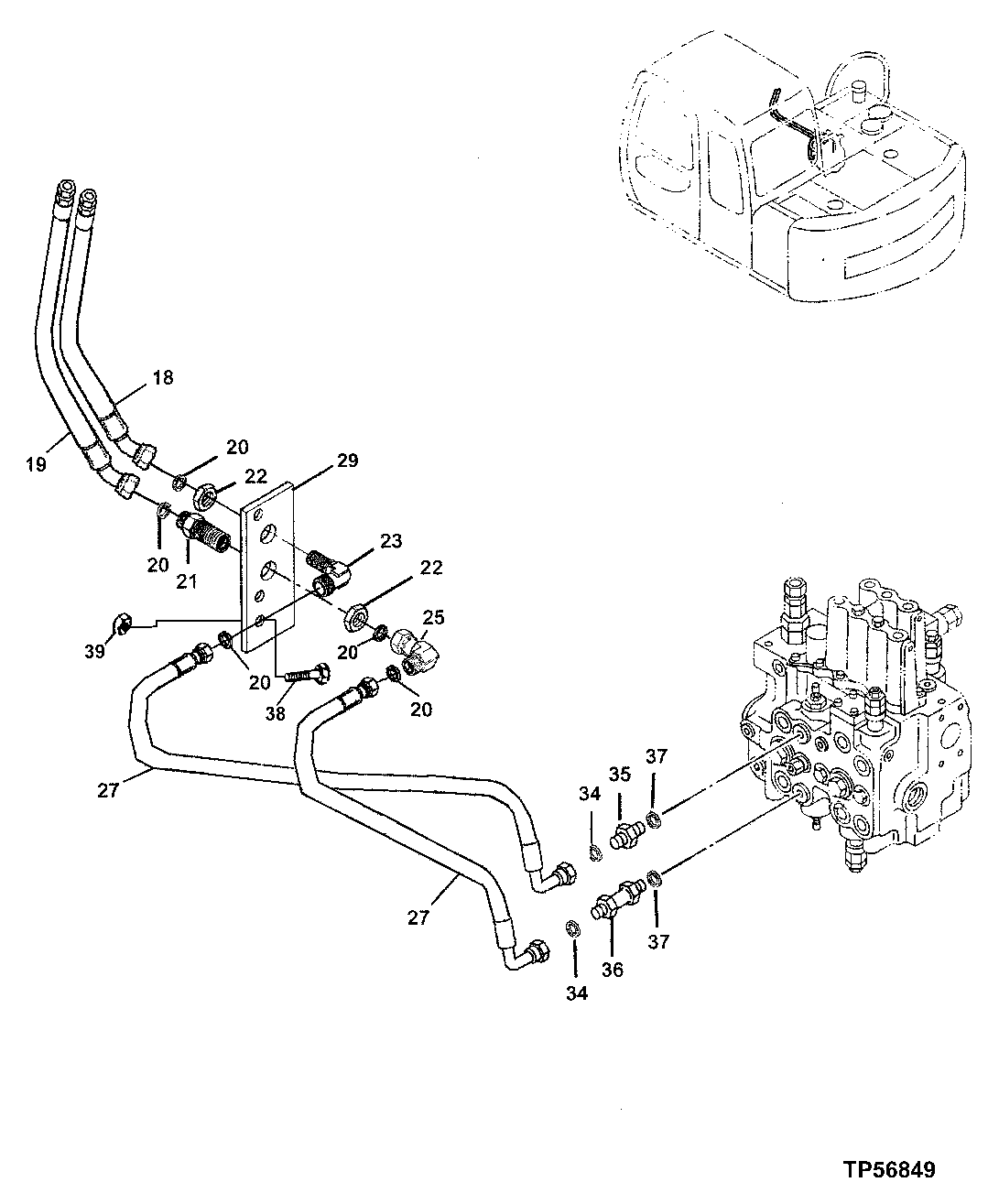

Запчасти John Deere 0 165 - CONTROL VALVE TO BOOM LINE HOSES (AUXILIARY FUNCTION LINES) 3360 Hydraulic System

18

AT186391

Hydraulic Hose

1шт.

19

AT186392

Hydraulic Hose

1шт.

20

T77932

O-Ring

3шт.

21

38H1286

Adapter Fitting

1шт.

22

14H876

Nut

1"

2шт.

23

38H1362

Elbow Fitting

1шт.

25

38H1096

Elbow Fitting

1шт.

27

AT186433

Hydraulic Hose

1шт.

29

T161082

Strap

1шт.

34

T77857

O-Ring

2шт.

35

4189602

Fitting

(SUB FOR TH108350)

1шт.

36

4199247

Adapter Fitting

(SUB FOR TH110569)

1шт.

37

4506418

O-Ring

(SUB FOR U46489)

2шт.

38

19M7493

Cap Screw

M12 X 40

2шт.

39

14M7275

Nut

M12

2шт.
