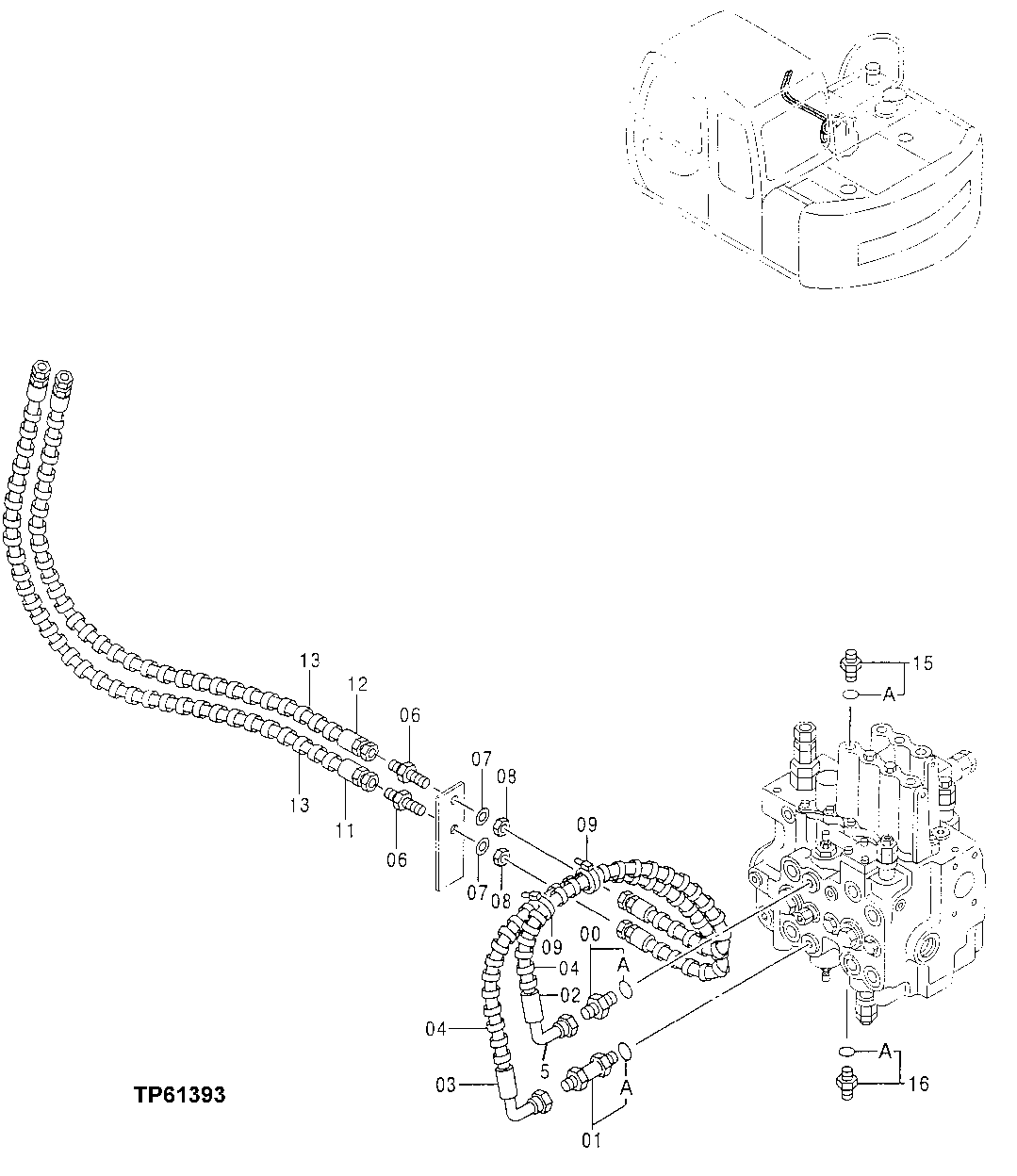

Запчасти John Deere 0 164 - CONTROL VALVE TO BOOM LINE HOSES (OFFSET BOOM CYLINDER) 3360 Hydraulic System

0

4200469

Adapter Fitting

(SUB FOR TH108400)

1шт.

0A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

1

4304367

Adapter Fitting

(SUB FOR AT200542)

1шт.

1A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

2

AT57860

Hydraulic Hose

9/16" X 1016 mm (40") X 9/16"

1шт.

3

4359370

Hydraulic Hose

(SUB FOR AP36022)

1шт.

4

TH100996

Hose Guard

4шт.

5

AE24616

Elbow Fitting

1шт.

6

R27238

Fitting

2шт.

7

J222014

Washer

(SUB FOR AT200011)

2шт.

8

14H888

Nut

9/16"

2шт.

9

H77698

Tie Band

2шт.

11

AT46299

Hydraulic Hose

9/16" X 1150 mm (45-1/4") X 9/16"

1шт.

12

AT57860

Hydraulic Hose

9/16" X 1016 mm (40") X 9/16"

1шт.

13

Hose Guard

( XHG-075,CTL) (SUB FOR AT138222)

4шт.

15

AT318019

Adapter Fitting

(SUB FOR 4255792, AT213811)

1шт.

15A

M800650

Packing

1шт.

16

4200465

Adapter Fitting

(SUB FOR TH108328)

1шт.

16A

M800650

Packing

1шт.
