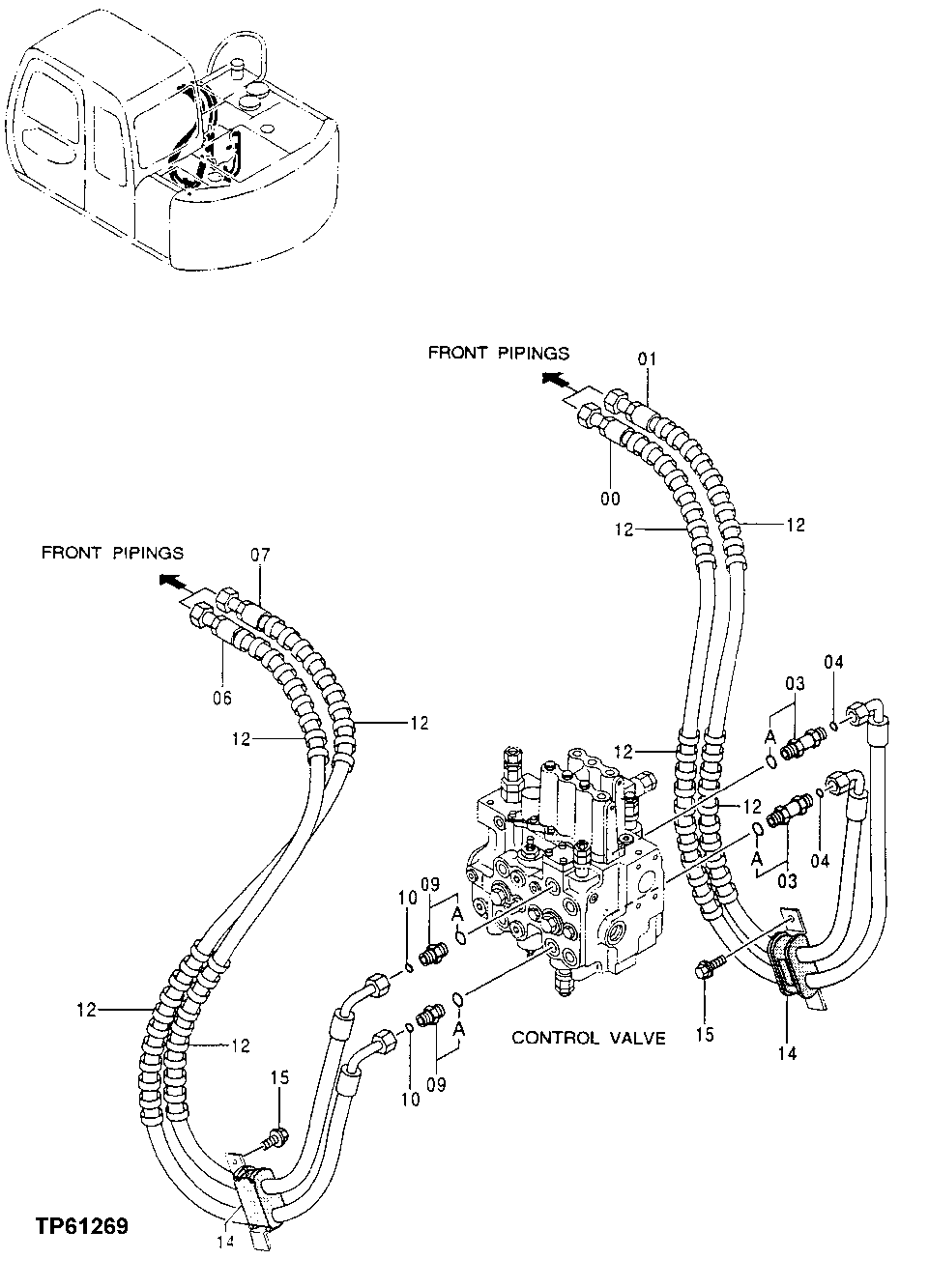

Запчасти John Deere 0 161 - Control Valve Hoses To Boom Lines (Arm and Bucket Cylinder) 3360 Hydraulic System

0

AT200732

Hydraulic Hose

13/16" X 1400 mm (55") X 13/16"

1шт.

1

AT200732

Hydraulic Hose

13/16" X 1400 mm (55") X 13/16"

1шт.

3

4199247

Adapter Fitting

(SUB FOR TH110569)

2шт.

3A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

4

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

2шт.

6

AT200732

Hydraulic Hose

13/16" X 1400 mm (55") X 13/16"

1шт.

7

AT200732

Hydraulic Hose

13/16" X 1400 mm (55") X 13/16"

1шт.

9

4189602

Fitting

(SUB FOR TH108350)

2шт.

9A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

10

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

2шт.

12

Hose Guard

(MAKE FROM XHG-075, BULK MATE RIAL, CTL) (SUB FOR AT138222)

8шт.

14

3038206

Bushing

(SUB FOR TH110422)

2шт.

15

19M7872

Cap Screw

M12 X 25

2шт.

12H301

Lock Washer

1/2"

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.
