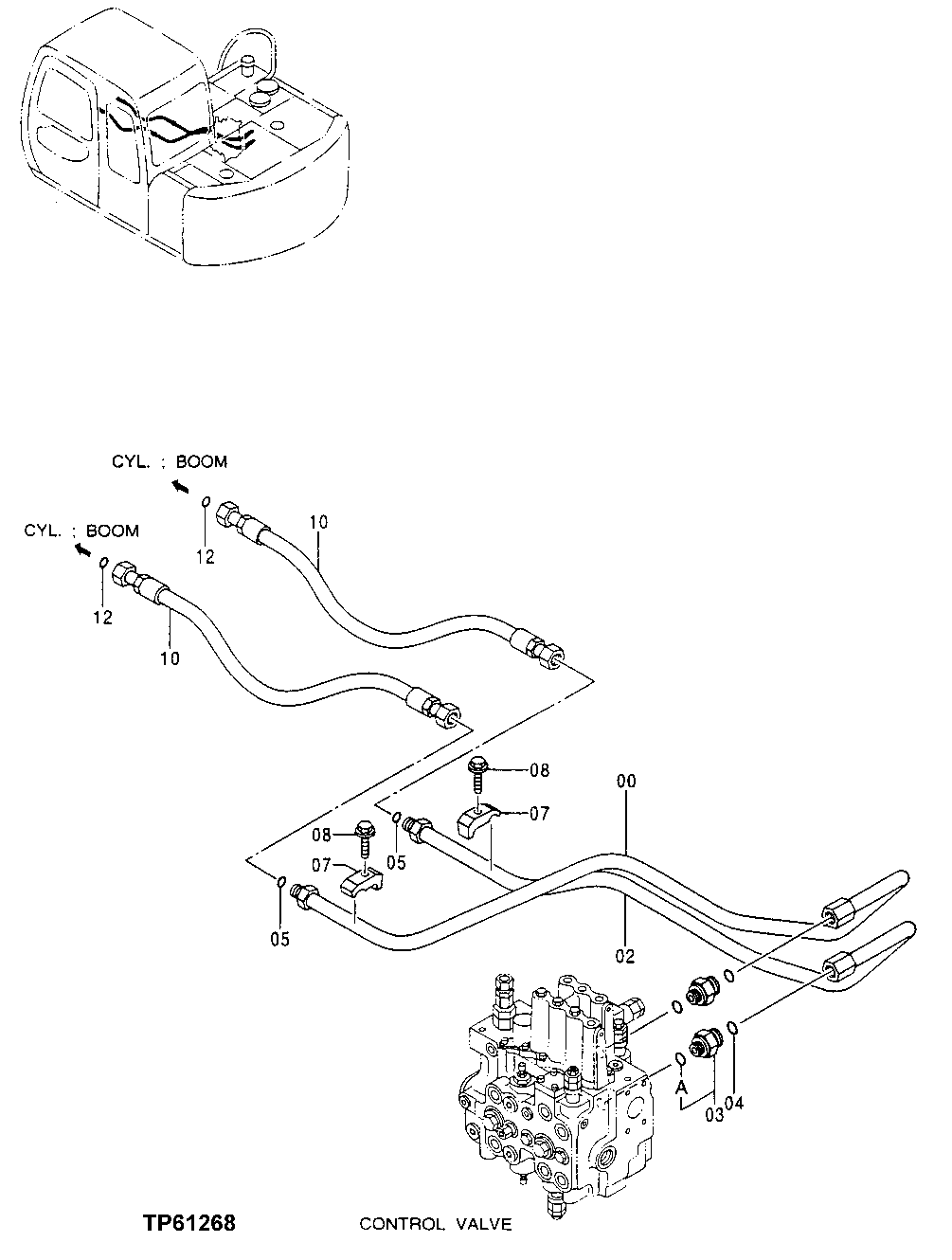

Запчасти John Deere 0 160 - Hydraulic Lines (Control Valve To Boom Cylinder Lines) 3360 Hydraulic System

0

8066839

Oil Line

(SUB FOR AP35915)

1шт.

2

8050829

Line

(SUB FOR AT200655)

1шт.

3

4197530

Adapter Fitting

(SUB FOR TH109595)

2шт.

3A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

4

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

5

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

2шт.

7

4190125

Clamp

(SUB FOR TH108960)

2шт.

8

19M7496

Cap Screw

M12 X 45

2шт.

10

AT200731

Hydraulic Hose

13/16" X 750 mm (29-1/2") X 13/16"

2шт.

12

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

2шт.
