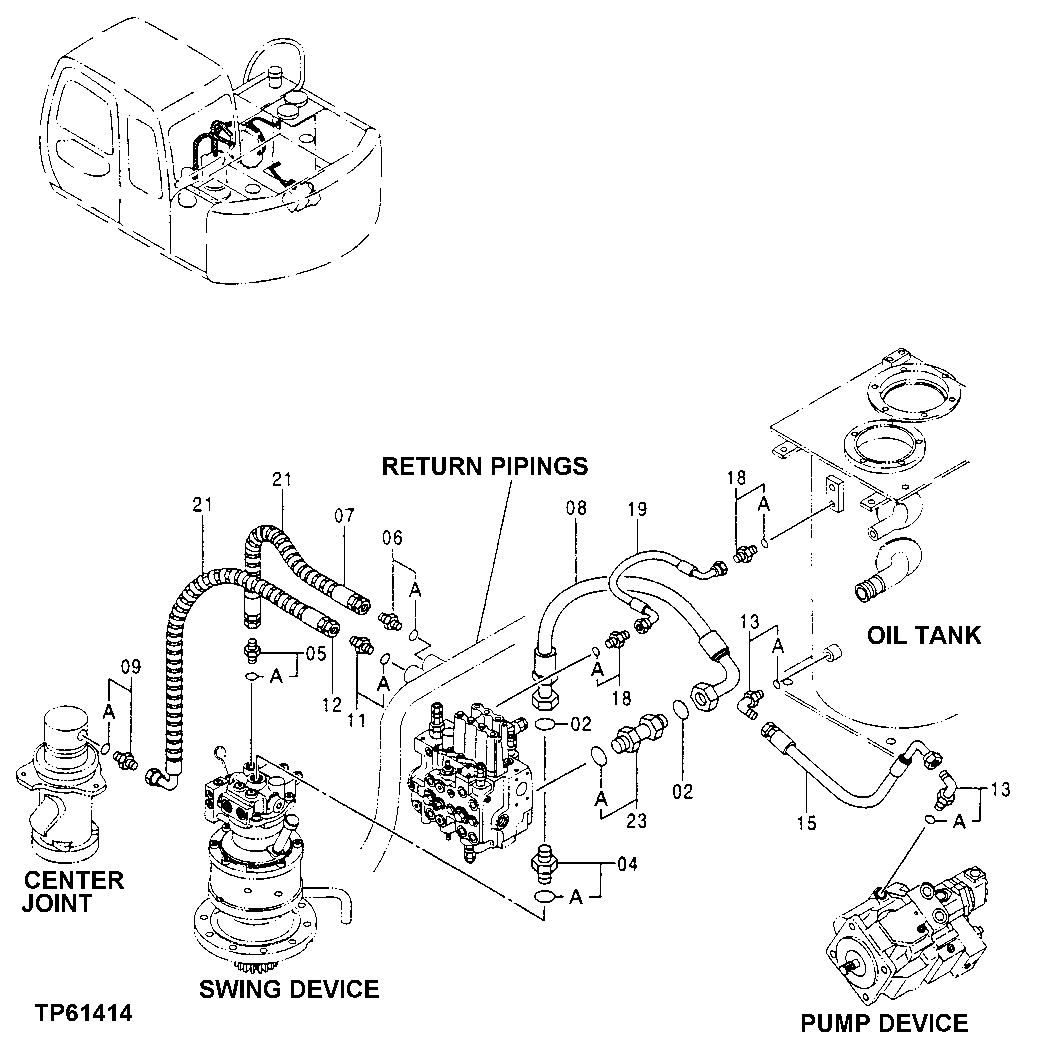

Запчасти John Deere 0 159 - Hydraulic System - Return Lines 3360 Hydraulic System

2

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

4

A853166

Adapter Fitting

SUB FOR AT107392 OR 4189619

1шт.

4A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.

5

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

5A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

6

4200469

Adapter Fitting

SUB FOR TH108400

1шт.

6A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

7

AP35908

Hydraulic Hose

1шт.

8

AP35909

Hydraulic Hose

1шт.

9

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

9A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

11

4200469

Adapter Fitting

SUB FOR TH108400

1шт.

11A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

12

AP35911

Hydraulic Hose

1шт.

13

4154672

Elbow Fitting

SUB FOR TH101008

2шт.

13A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

15

AP35910

Hydraulic Hose

1шт.

18

4200465

Adapter Fitting

SUB FOR TH108328

2шт.

18A

M800650

Packing

1шт.

19

AP35912

Hydraulic Hose

1шт.

21

4327315

Hose Guard

4327293 NLA, SUB FOR TH106022 OR 4133527

4шт.

23

4189539

Adapter Fitting

SUB FOR AT107393

1шт.

23A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.
