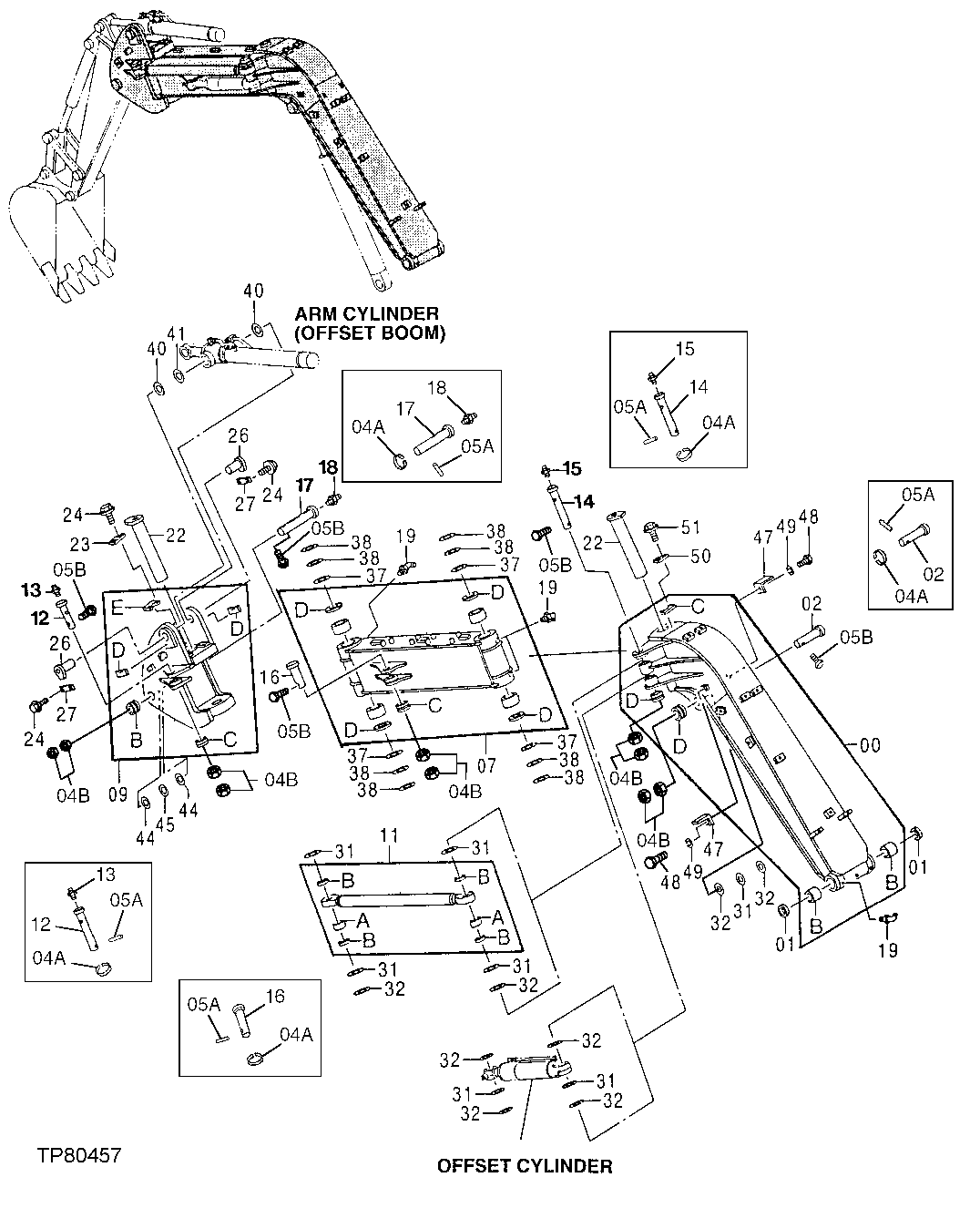

Запчасти John Deere 0 157 - OFFSET BOOM AND PINS 3344 Boom

0

7033619

Excavator Boom

(SUB FOR AP35970) (OFFSET, LOWER ASSEMBLY)

1шт.

0B

4445478

Bushing

(SUB FOR (2) 4334422 ) (SUB FOR P65778)

2шт.

0C

4400016

Plate

(SUB FOR AT250755)

1шт.

0D

4197031

Bushing

(USE WITH TH100624 AND TH100625 ) (SUB P66187 ) (SUB FOR TH110546)

2шт.

P66187

Bushing

(SUB FOR TH110546 ) (USE WI TH 19M7941 AND (2) 14M7276)

2шт.

1

TH105979

Seal

2шт.

2

3055536

Pin Fastener

(SUB FOR AT200379)

1шт.

4A

4065688

Retainer

(SUB FOR TH100624)

5шт.

4B

14M7276

Nut

M16

10шт.

5A

4065689

Pin Fastener

5шт.

5B

19M8351

Cap Screw

M16 X 125

5шт.

7

8070002

Excavator Boom

(SUB FOR AP35972) (OFFSET, UPPER ASSEMBLY)

1шт.

4355877

Bushing

4шт.

7C

4197031

Bushing

(USE WITH TH100624 AND TH100625 ) (SUB P66187 ) (SUB FOR TH110546)

1шт.

P66187

Bushing

(SUB FOR TH110546 ) (USE WI TH 19M7941 AND (2) 14M7276)

1шт.

7D

TH102411

Seal

4шт.

9

7033623

Support

(SUB FOR AP35971)

1шт.

9B

4197032

Bushing

(USE WITH TH100624 AND TH100625 ) (SUB P60783 ) (SUB FOR TH110547)

1шт.

P60783

Bushing

(SUB FOR TH110547 ) (USE WI TH 19M7941 AND (2) 14M7276)

1шт.

9C

4197031

Bushing

(USE WITH TH100624 AND TH100625 ) (SUB P66187 ) (SUB FOR TH110546)

1шт.

P66187

Bushing

(SUB FOR TH110546 ) (USE WI TH 19M7941 AND (2) 14M7276)

1шт.

9D

4400064

Plate

(SUB FOR AT250756)

2шт.

9E

4400016

Plate

(SUB FOR AT250755)

1шт.

11

9163869

Rod

(SUB FOR AP36005)

1шт.

11A

4345470

Bushing

(SUB FOR AT250757)

2шт.

11B

4117954

Seal

(SUB FOR TH106006)

4шт.

12

3040621

Pin Fastener

55 X 161 mm (2.165" X 6. 339") (SUB FOR TH110440)

1шт.

13

TH100074

Lubrication Fitting

1шт.

14

3040620

Pin Fastener

55 X 326 mm (2.165" X 12 .835") (SUB FOR TH110439)

1шт.

15

TH100074

Lubrication Fitting

1шт.

16

3055930

Pin Fastener

(SUB FOR AT200382)

1шт.

17

3037344

Pin Fastener

(SUB FOR TH110416)

1шт.

18

TH100074

Lubrication Fitting

1шт.

19

T116334

Lubrication Fitting

7шт.

22

8069883

Pin

(SUB FOR P65741)

2шт.

23

P65740

Plate

1шт.

24

19M7402

Cap Screw

M10 X 25

6шт.

12M7066

Lock Washer

10 mm

6шт.

26

8069904

Pin

(SUB FOR P65742)

2шт.

27

4390505

Plate

(SUB FOR P65737)

2шт.

31

4374459

Plate

(SUB FOR P65704) (1.0)

10шт.

32

4374437

Plate

(SUB FOR P65703) (2.0)

5шт.

37

4375134

Plate

(SUB FOR P65735) (1.0)

4шт.

38

4375136

Plate

(SUB FOR P65736) (2.0)

8шт.

40

4366694

Plate

(SUB FOR P60447) (1.0)

2шт.

41

4367411

Plate

(SUB FOR P60449) (2.0)

1шт.

44

4394384

Plate

(SUB FOR P65707) (1.0)

2шт.

45

4394385

Plate

(SUB FOR P65708) (2.0)

1шт.

47

4224631

Angle

(SUB FOR TH111685)

2шт.

48

J901425

Cap Screw

(SUB FOR TH104071)

2шт.

49

12H317

Lock Washer

9/16"

2шт.

50

4411463

Plate

(SUB FOR AT250758)

1шт.

51

19M7550

Cap Screw

M10 X 35

2шт.

12M7066

Lock Washer

10 mm

2шт.
