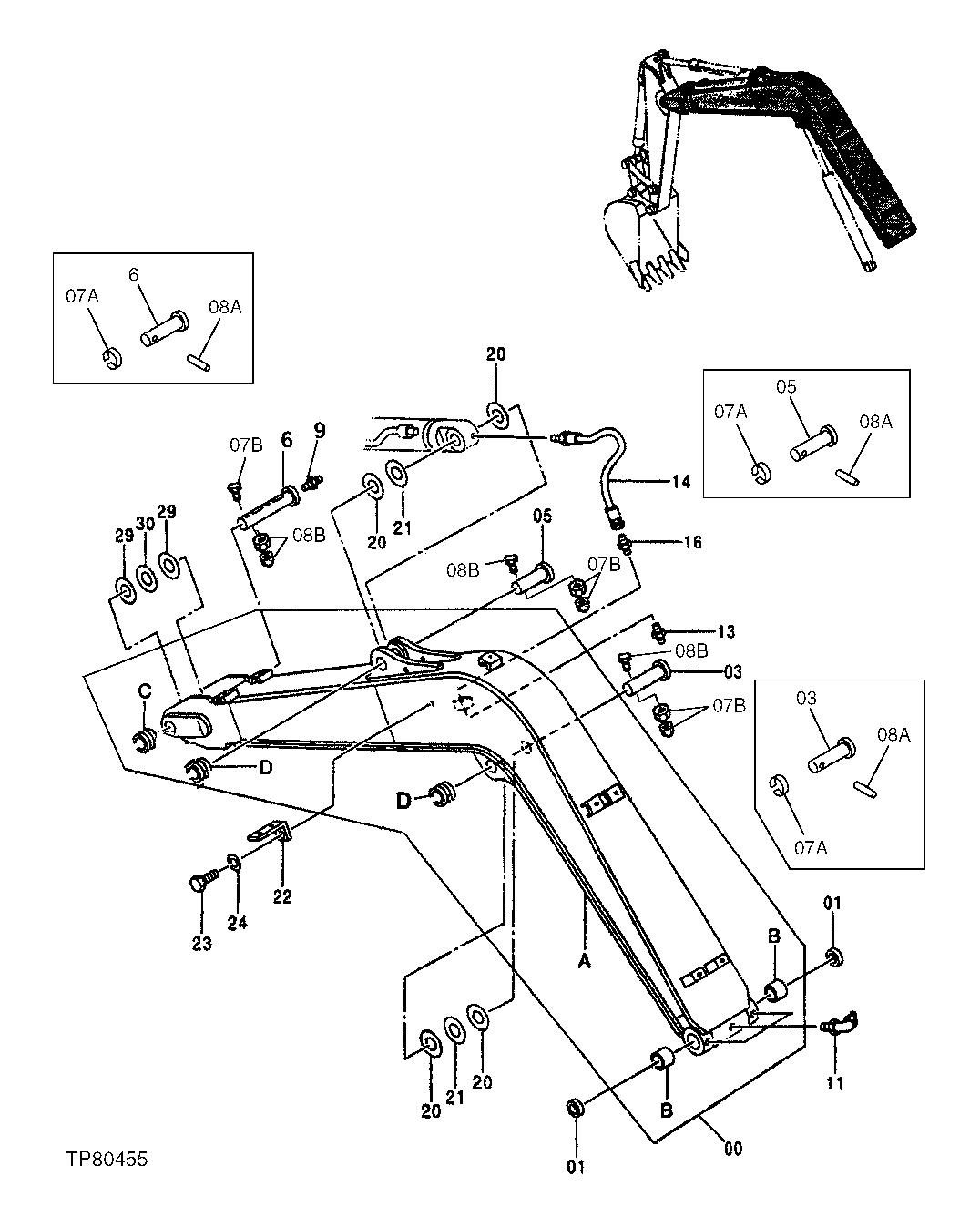

Запчасти John Deere 0 156 - Excavator Boom Assembly, Bushings and Pins 3344 Boom

0

AP36037

Excavator Boom

1шт.

0A

Excavator Boom

1шт.

0B

4197840

Bushing

(SUB FOR TH110556)

2шт.

0C

P60783

Bushing

1шт.

0D

4197031

Bushing

(USE WITH TH100624 AND TH100625 ) (SUB P66187 ) (SUB FOR TH110546)

2шт.

P66187

Bushing

(SUB FOR TH110546 ) (USE WI TH 19M7941 AND (2) 14M7276)

2шт.

1

TH105979

Seal

2шт.

3

3055536

Pin Fastener

(SUB FOR AT200379)

1шт.

5

3076942

Pin

(SUB FOR P65734)

1шт.

6

3037344

Pin Fastener

(SUB FOR TH110416)

1шт.

7A

4065688

Retainer

(SUB FOR TH100624)

3шт.

7B

14M7276

Nut

M16

6шт.

8A

4065689

Pin Fastener

(SUB FOR TH100625)

3шт.

8B

19M8351

Cap Screw

M16 X 125 (SUB FOR 19M7941)

3шт.

9

TH100074

Lubrication Fitting

1шт.

11

T116334

Lubrication Fitting

3шт.

13

TH100074

Lubrication Fitting

1шт.

14

4129123

Hydraulic Hose

(SUB FOR AP36335)

1шт.

16

X4-4FTX-S

Adapter Fitting

(SUB FOR X0103-4-4 ) (SUB FOR TH100963)

1шт.

20

4374459

Plate

(SUB FOR P65704)

4шт.

21

4374437

Plate

(SUB FOR P65703)

2шт.

22

4224631

Angle

(SUB FOR TH111685)

1шт.

23

J901425

Cap Screw

(SUB FOR TH104071)

1шт.

24

12H317

Lock Washer

9/16"

1шт.

29

4394384

Plate

(SUB FOR P65707)

2шт.

30

4394385

Plate

(SUB FOR P65708)

1шт.
