Запчасти John Deere 0 153 - Standard Arm 1.62m 3340 Backhoe & Excavator Frames

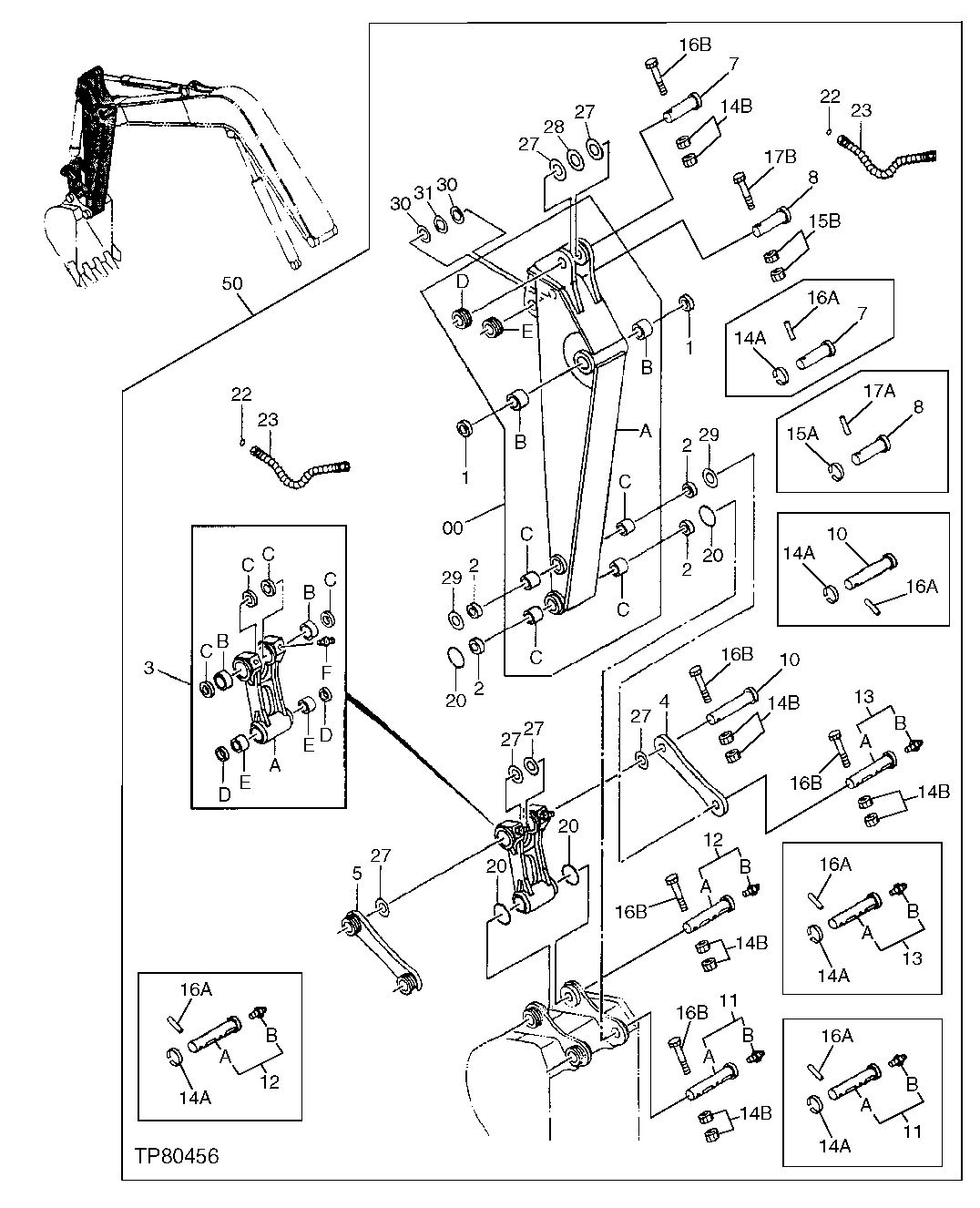

Схема запчастей John Deere 0 - 153 - Standard Arm 1.62m 3340 Backhoe & Excavator Frames

Артикул

Название

Примечание

Количество

0

7032148

Dipperstick

Convenience Assembly (SUB FOR AT250734)

1шт.

0A

Arm

1шт.

0B

4445477

Bushing

(SUB FOR P65748, 4334423 OR 4365456)

2шт.

0C

4356103

Bushing

(SUB FOR P65749 OR 4374061)

4шт.

0D

4197031

Bushing

(USE WITH TH100624 AND TH100625 ) (SUB P66187 ) (SUB FOR TH110546)

1шт.

P66187

Bushing

(SUB FOR TH110546 ) (USE WI TH 19M7941 AND (2) 14M7276)

1шт.

0E

4197029

Bushing

(USE WITH TH106053 AND TH106052 ) (SUB P65093 ) (SUB FOR TH110545)

1шт.

Spacer

( P65093 NLA ) (SUB FOR TH110545 ) (USE WITH 19M8020 AND (2) 14M7276)

1шт.

1

TH105979

Seal

2шт.

2

4349913

Seal

(SUB FOR P65743)

4шт.

3

8066896

Link

(SUB FOR AP35994)

1шт.

3A

Link

1шт.

3B

4445476

Bushing

(SUB FOR 4356105 ) (SUB FOR P65761)

2шт.

3C

4117954

Seal

(SUB FOR TH106006)

4шт.

3D

4349913

Seal

(SUB FOR P65743)

2шт.

3E

4356103

Bushing

(SUB FOR P65749 OR 4374061)

2шт.

3F

TH100074

Lubrication Fitting

2шт.

4

3076932J

Link

(SUB FOR P65733 OR 3076932)

1шт.

5

8066904

Link

(SUB FOR P65766)

1шт.

7

3076942

Pin

(SUB FOR P65734)

1шт.

8

3076944

Pin

(SUB FOR P65738)

1шт.

10

3076951

Pin

(SUB FOR P65739)

1шт.

11

Pin

1шт.

11A

3076955

Pin

(SUB FOR P65763)

1шт.

11B

TH100074

Lubrication Fitting

1шт.

12

Pin

1шт.

12A

3076954

Pin

(SUB FOR P65764)

1шт.

12B

TH100074

Lubrication Fitting

1шт.

13

Pin

1шт.

13A

3076948

Pin

(SUB FOR P65765)

1шт.

13B

TH100074

Lubrication Fitting

1шт.

14A

4065688

Retainer

(SUB FOR TH100624)

5шт.

14B

14M7276

Nut

M16

10шт.

15A

4141000

Ring

(SUB FOR TH106052)

1шт.

15B

14M7276

Nut

M16

2шт.

16A

4065689

Pin Fastener

17.500 X 81 mm (0.689" X 3.189") (SUB FOR TH100625)

5шт.

16B

19M8351

Cap Screw

M16 X 125 (SUB FOR 19M7941)

5шт.

17A

4141001

Pin

16 X 62 mm (0.630" X 2. 441") (SUB FOR TH106053)

1шт.

17B

19M8020

Cap Screw

M16 X 100

1шт.

20

P65747

O-Ring

(USE IF AVAILABLE)

4шт.

4406388

O-Ring

(SUB FOR P65747 OR P662 60 ) (SUB FOR AT250759)

4шт.

22

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

2шт.

23

AP36006

Hydraulic Hose

2шт.

27

4374459

Plate

(SUB FOR P65704) (1.0)

6шт.

28

4374437

Plate

(SUB FOR P65703) (2.0)

1шт.

29

P65745

Plate

(1.0)

2шт.

30

P65746

Plate

(1.0)

2шт.

31

P65744

Plate

(2.0)

1шт.

50

AT186052

Arm

WHOLE GOODS (WHOLE GOODS)

1шт.

Выбрано товаров: 49
