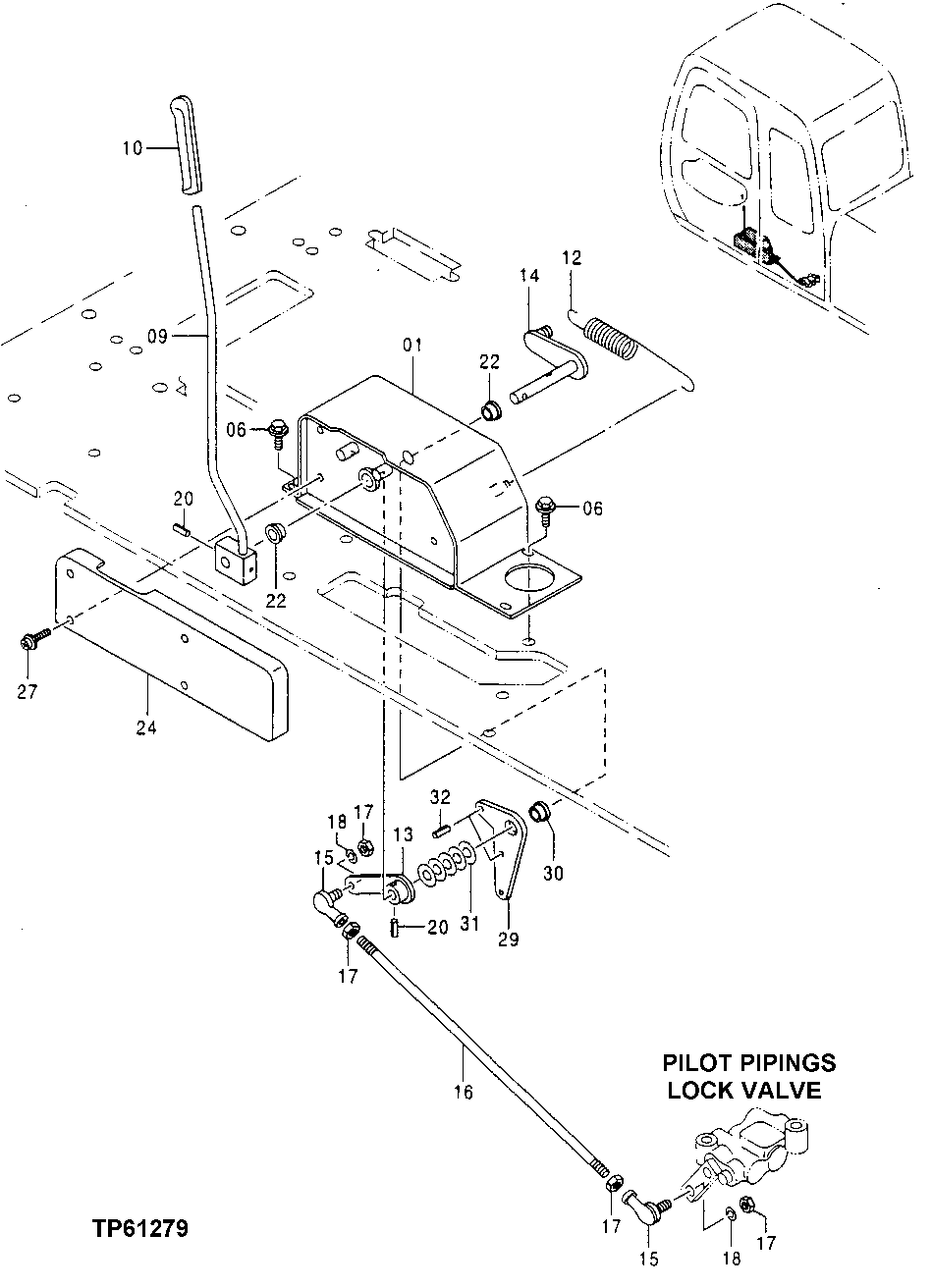

Запчасти John Deere 0 151 - PILOT SHUT-OFF AND PROPEL LOCK LEVER 3315 Control Linkage

1

7033291

Case

SUB FOR AT250736

1шт.

6

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

9

8061138

Lever

SUB FOR AT214361

1шт.

10

3051611

Grip

SUB FOR AT154122

1шт.

12

4375224

Spring

SUB FOR AT250644

1шт.

13

9743595

Lever

SUB FOR AT177400

1шт.

14

8068949

Bellcrank

SUB FOR AT250744

1шт.

15

T110021

Ball Joint Socket

2шт.

16

4259591

Rod

SUB FOR AT154262

1шт.

17

14M7273

Nut

M8

4шт.

18

Washer

12M7065 NLA

2шт.

20

34M7225

Spring Pin

8 X 28 mm SUB FOR 34M6402

2шт.

22

4341810

Bushing

16.100 X 20.100 X 12 mm (0.634" X 0.791" X 0.472") SUB FOR AT177401

2шт.

24

2037246

Cover

SUB FOR AT213737

1шт.

27

J680640

Screw With Washer

SUB FOR AT213612

4шт.

29

4374438

Bellcrank

SUB FOR AT250641

1шт.

30

4341810

Bushing

16.100 X 20.100 X 12 mm (0.634" X 0.791" X 0.472") SUB FOR AT177401

1шт.

31

4081592

Shim

SUB FOR TH102030

5шт.

32

4144354

Spring Pin

SUB FOR AT250596

2шт.
