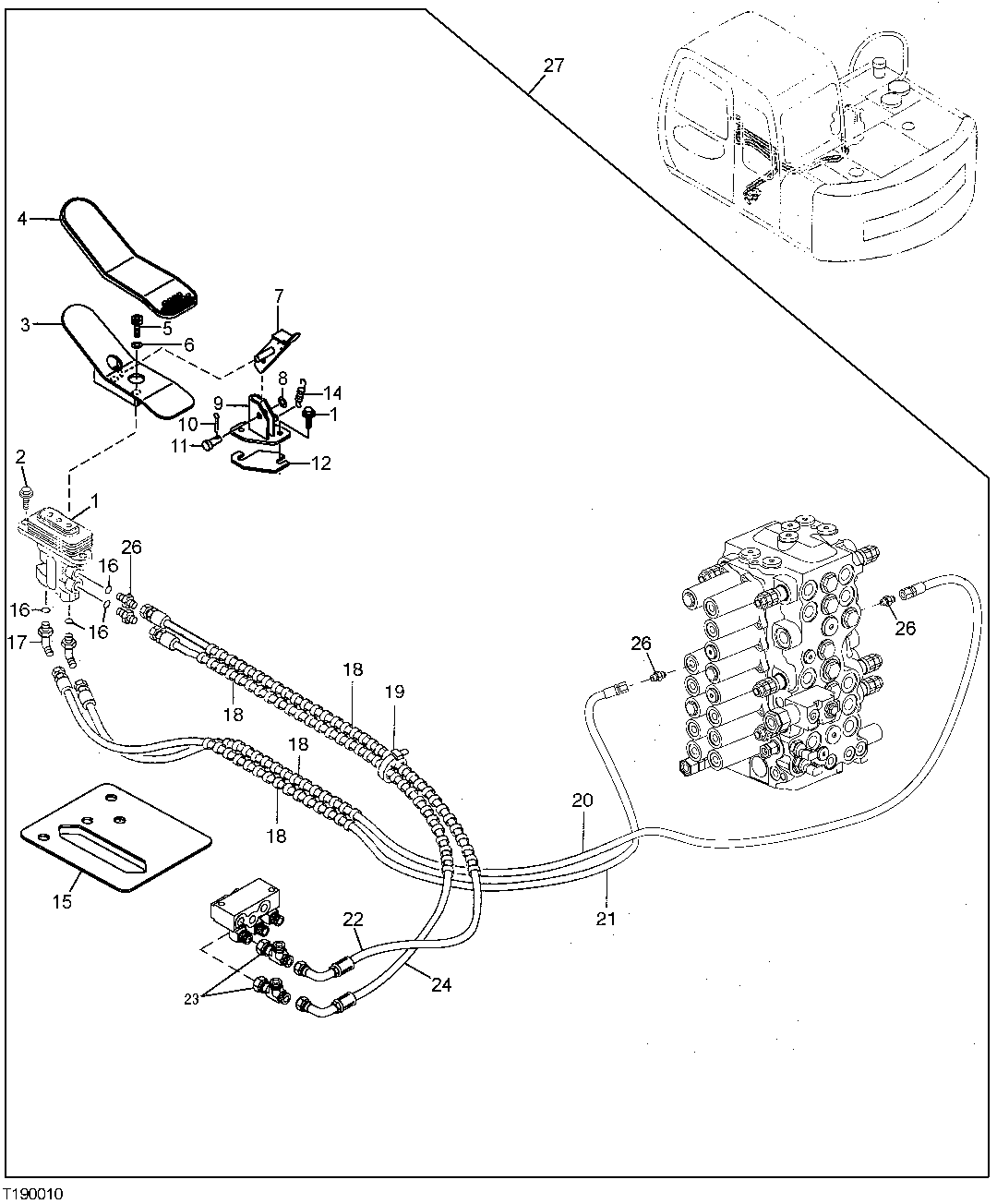

Запчасти John Deere 0 150 - FOOT PEDAL CONTROL KIT (REPLACEMENT) 3315 Control Linkage

1

4330467

Flow Control Hyd. Valve

1шт.

2

19M7550

Cap Screw

M10 X 35

3шт.

3

8070805

Pedal

1шт.

4

4283758

Cover

1шт.

5

J781020

Bolt

2шт.

6

12M7066

Lock Washer

10 mm

2шт.

7

8061258

Stop

1шт.

8

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

9

8060508

Bracket

1шт.

10

11M7080

Cotter Pin

2.500 X 16 mm

1шт.

11

4287795

Pin

1шт.

12

4402410

Solid Shim

3шт.

13

19M7550

Cap Screw

M10 X 35

3шт.

14

4279604

Spring

1шт.

15

Plate

1шт.

16

M800650

Packing

4шт.

17

4154670

Elbow Fitting

2шт.

18

4327315

Hose Guard

4327293 NLA, SUB FOR 4133527

4шт.

19

H77698

Tie Band

5шт.

20

AP36018

Hydraulic Hose

1шт.

21

AP36017

Hydraulic Hose

1шт.

22

AT304329

Hydraulic Hose - Fabricate

1шт.

23

AE45056

Tee Fitting

2шт.

24

AT304329

Hydraulic Hose - Fabricate

1шт.

26

4200465

Adapter Fitting

4шт.

27

Field Installation Kit

TWO WAY HYDRAULIC FOOT PEDAL CON TROL KIT, INCLUDES INSTALLATION I NSTRUCTIONS T202175, AT303097 NLA

1шт.

28

14M7296

Flange Nut

M10 NOT ILLUSTRATED

1шт.
