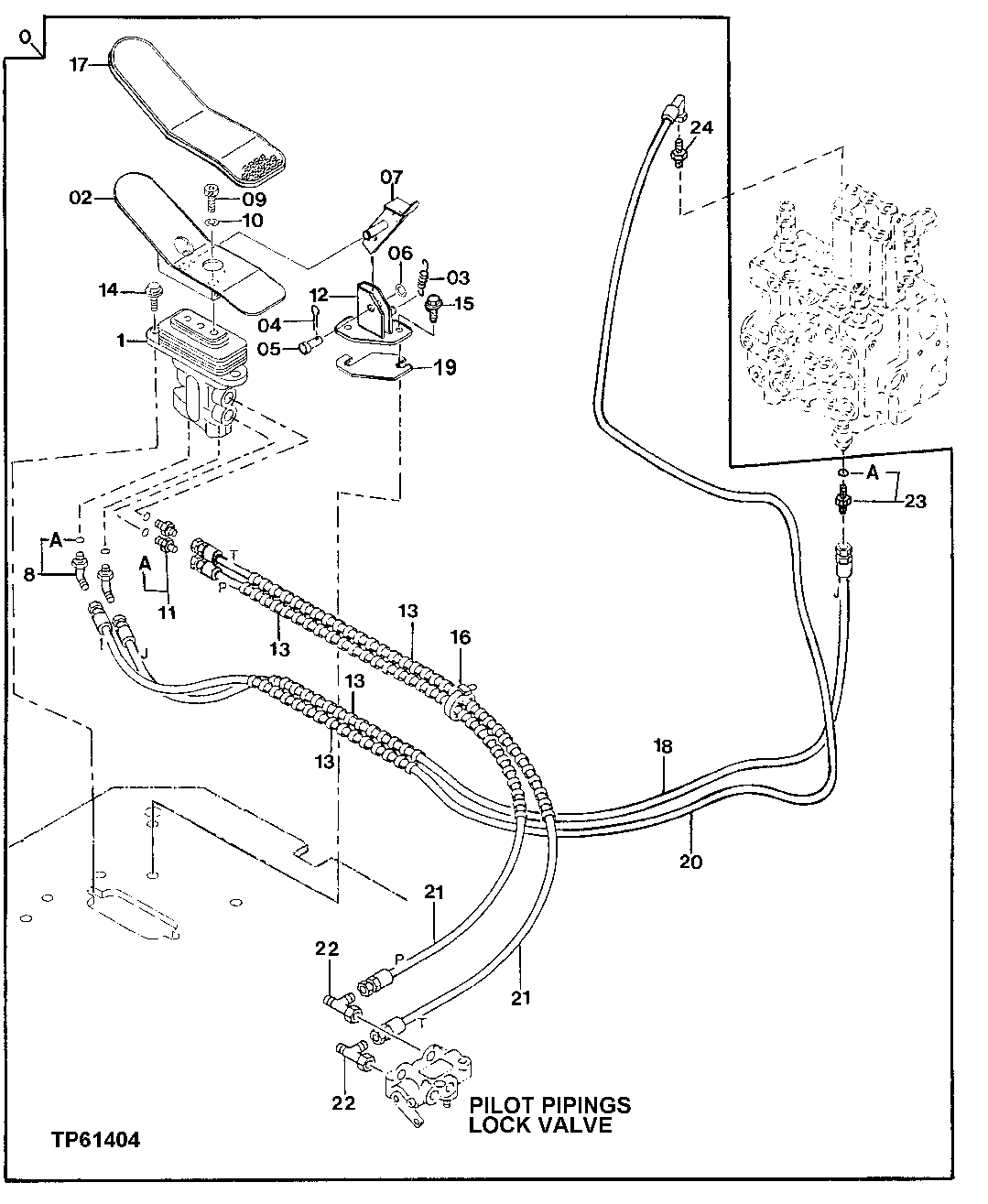

Запчасти John Deere 0 149 - FOOT PEDAL CONTROL 3315 Control Linkage

0

Control

FOOT PEDAL; AT184802 NLA; SUB TO AT303097

1шт.

1

4330467

Flow Control Hyd. Valve

SUB FOR AP34893

1шт.

2

8070805

Pedal

SUB FOR AP36030

1шт.

3

4279604

Spring

SUB FOR P65774

1шт.

4

11M7082

Cotter Pin

2.500 X 25 mm SUB FOR 11M7080

1шт.

5

4287795

Pin

SUB FOR P65777

1шт.

6

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

7

8061258

Stop

SUB FOR AP36029

1шт.

8

4154670

Elbow Fitting

SUB FOR TH100951

2шт.

8A

M800650

Packing

1шт.

9

J781020

Bolt

SUB FOR P65776

2шт.

10

12M7066

Lock Washer

10 mm

2шт.

11

4200465

Adapter Fitting

SUB FOR TH108328

2шт.

11A

M800650

Packing

1шт.

12

8060508

Bracket

SUB FOR AP36028

1шт.

13

4327315

Hose Guard

4327293 NLA; SUB FOR TH106022 OR 4133527

4шт.

14

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

15

19M7163

Cap Screw

M8 X 25

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

16

H77698

Tie Band

5шт.

17

4283758

Cover

SUB FOR AT158843

1шт.

18

AP36018

Hydraulic Hose

1шт.

19

4402410

Solid Shim

SUB FOR P65775; 0.8

3шт.

20

AP36017

Hydraulic Hose

1шт.

21

AT37950

Hydraulic Hose

11.1252" X 1270 mm (50") X 9/16"

2шт.

22

AT36921

Tee Fitting

2шт.

23

4200465

Adapter Fitting

SUB FOR TH108328

1шт.

23A

M800650

Packing

1шт.

24

AT318019

Adapter Fitting

SUB FOR 4255792, AT213811

1шт.
