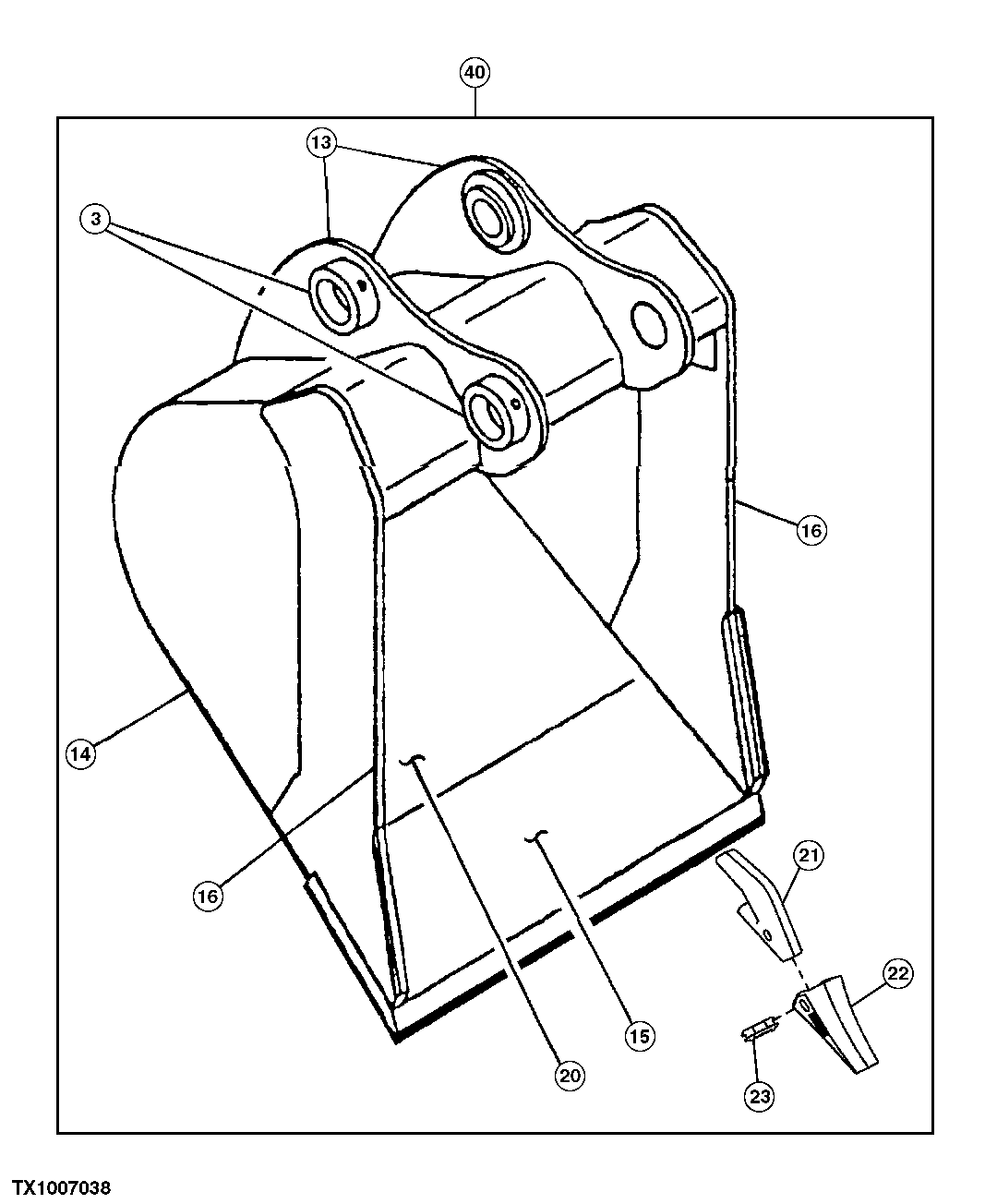

Запчасти John Deere 0 138 - Heavy Duty Bucket 3302 Bucket With Teeth

3

T115092

Bushing

2шт.

13

621899

Pivot

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

304222

Plate

(A) (RH / LH)

2шт.

15

AT163452

Cutting Edge

CTL

ARшт.

16

304221

Vertical Cutter

(A) (RH / LH) (SIDE CUTTERS)

2шт.

20

603520

Moldboard

(A) (24 INCH/0.27 CUBIC YARD)

1шт.

603522

Moldboard

(A) (30 INCH/0.36 CUBIC YARD)

1шт.

603523

Moldboard

(A) (36 INCH/0.45 CUBIC YARD)

1шт.

21

U43792

Bucket Tooth Adapter

(A)

ARшт.

22

TF23

Tooth

ARшт.

23

TF23P

Pin

ARшт.

40

Excavator Bucket

(24 INCH/0.27 CUBIC YARD) (4 TEETH) ( AT332 653 NLA) (SUB FOR AT182229 ) (SUB AT339009)

1шт.

Excavator Bucket

(30 INCH/0.36 CUBIC YARD) (4 TEETH) ( AT332 654 NLA) (SUB FOR AT182230 ) (SUB AT339012)

1шт.

Excavator Bucket

(36 INCH/0.45 CUBIC YARD) (5 TEETH) ( AT332 655 NLA) (SUB FOR AT182231 ) (SUB AT339013)

1шт.
