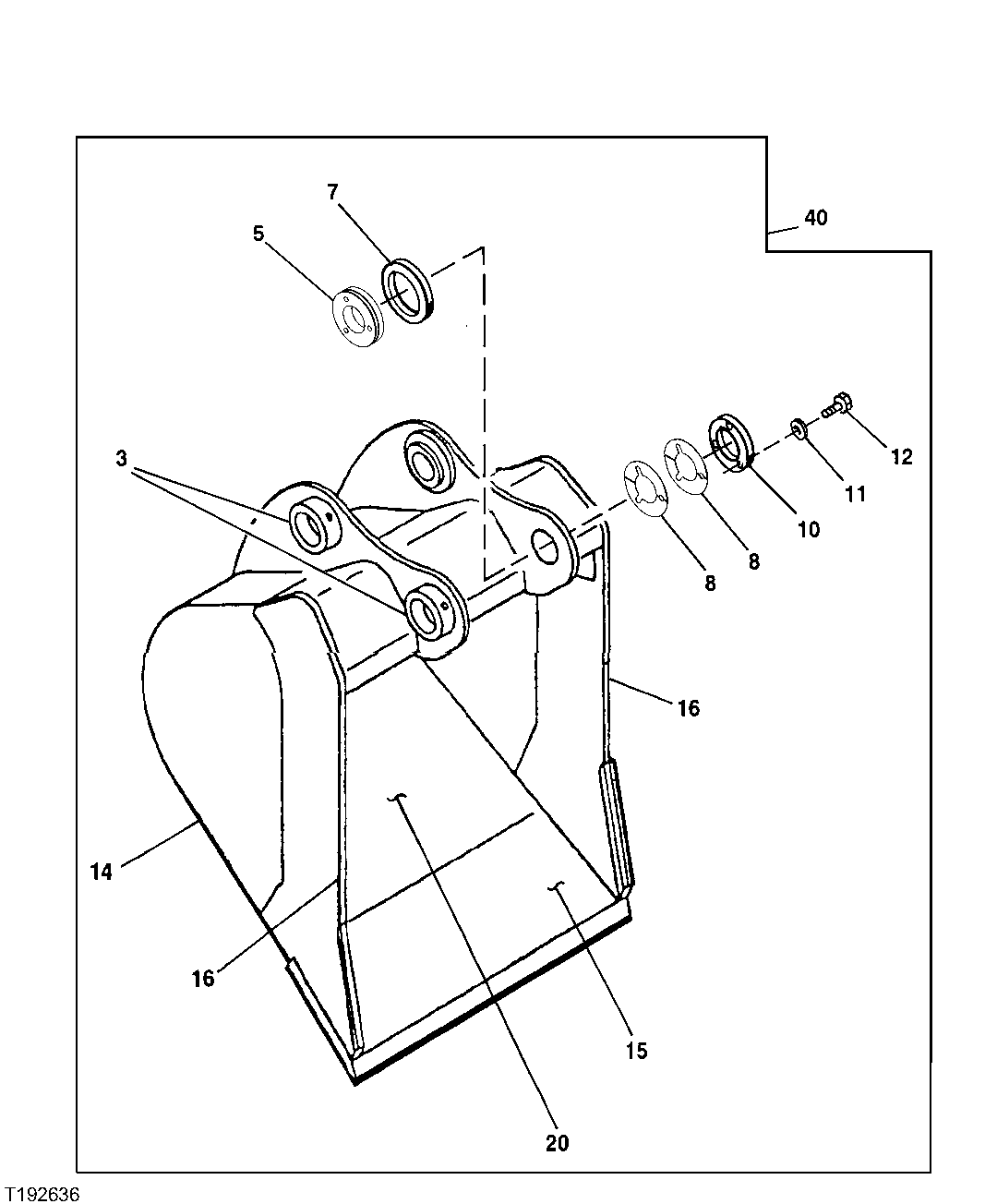

Запчасти John Deere 0 137 - Heavy Duty Bucket 3302 Bucket With Teeth

3

T115092

Bushing

2шт.

5

AT184010

Boss

3 Tapped Holes

1шт.

7

AT184011

Boss

1шт.

8

AT184008

Shim

3 Clearance Holes

7шт.

10

AT184009

Plate

1шт.

11

24M7047

Washer

13 X 24 X 2.500 mm

3шт.

12

19M8348

Cap Screw

M12 X 65

3шт.

13

621899

Pivot

(F) Order From Central Fabricat ors (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

304222

Plate

(F) Order From Central Fabri cators (RIGHT AND LEFT SIDE)

2шт.

15

Cutting Edge

( AT163452 CTL BULK MATERIAL)

1шт.

16

304221

Vertical Cutter

(F) Order From Central Fabricato rs (RIGHT AND LEFT SIDE CUTTERS)

2шт.

20

603517

Moldboard

(F) Order From Central Fabricators ( USE WITH 18 INCH - .19 CU. YD. BUCKET)

1шт.

603520

Moldboard

(F) Order From Central Fabricators ( USE WITH 24 INCH - .27 CU. YD. BUCKET)

1шт.

603522

Moldboard

(F) Order From Central Fabricators ( USE WITH 30 INCH - .36 CU. YD. BUCKET)

1шт.

603523

Moldboard

(F) Order From Central Fabricators ( USE WITH 36 INCH - .45 CU. YD. BUCKET)

1шт.

603524

Moldboard

(F) Order From Central Fabricators ( USE WITH 42 INCH - .65 CU. YD. BUCKET)

1шт.

40

Excavator Bucket

(B) ( AT182228 NLA) (1 8 INCH/0.19 CUBIC YARD)

1шт.

Excavator Bucket

(B) ( AT182229 NLA) (24 INCH/ 0.27 CUBIC YARD) (SUB AT332653)

1шт.

Excavator Bucket

(B) ( AT182230 NLA) (30 INCH/ 0.36 CUBIC YARD) (SUB AT332654)

1шт.

Excavator Bucket

(B) ( AT182231 NLA) (36 INCH/ 0.45 CUBIC YARD) (SUB AT332655)

1шт.

Excavator Bucket

(B) ( AT182232 NLA) (4 2 INCH/0.65 CUBIC YARD)

1шт.
