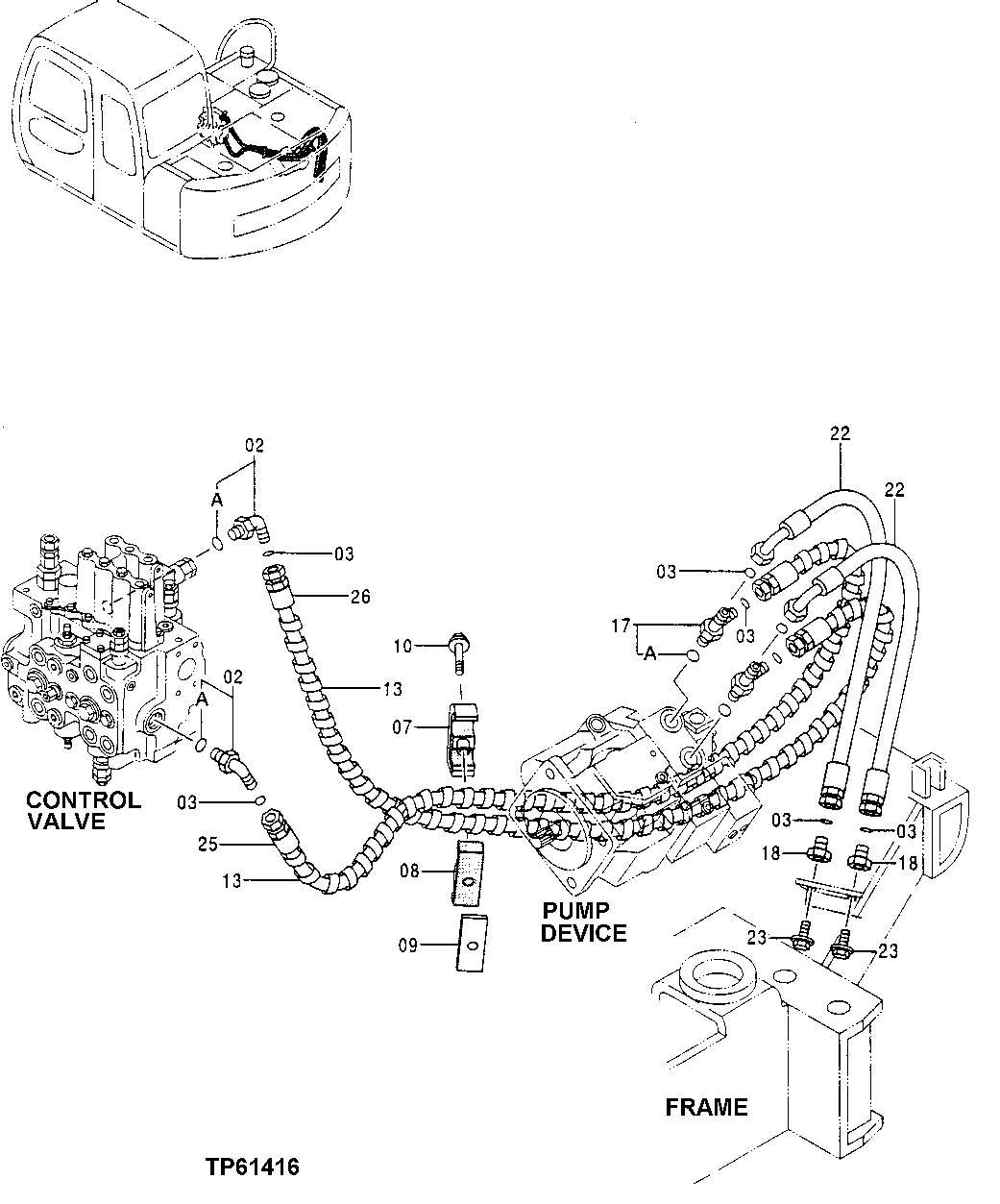

Запчасти John Deere 0 132 - Hydraulic Pump Hoses To Control Valve 2160 Vehicle Hydraulics

2

4157562

Elbow Fitting

(SUB FOR TH109540)

2шт.

2A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

3

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

8шт.

7

8061722

Clamp

(SUB FOR AP34797)

1шт.

8

AT318021

Clamp

(SUB FOR 4285722, AT155739)

1шт.

9

4303989

Adjusting Strap

(SUB FOR AT200541)

1шт.

10

19M8183

Cap Screw

M10 X 90

1шт.

12M7066

Lock Washer

10 mm

1шт.

13

TH100996

Hose Guard

6шт.

17

4218070

Tee Fitting

(SUB FOR AT200408)

2шт.

17A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

18

4204882

Fitting Plug

(SUB FOR TH109541)

2шт.

22

AP35907

Hydraulic Hose

Fabricate

2шт.

23

19M8011

Cap Screw

M12 X 30

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

25

AP35906

Hydraulic Hose

Fabricate

1шт.

26

4187392

Hydraulic Hose

(SUB FOR TH109837) Fabricate

1шт.
