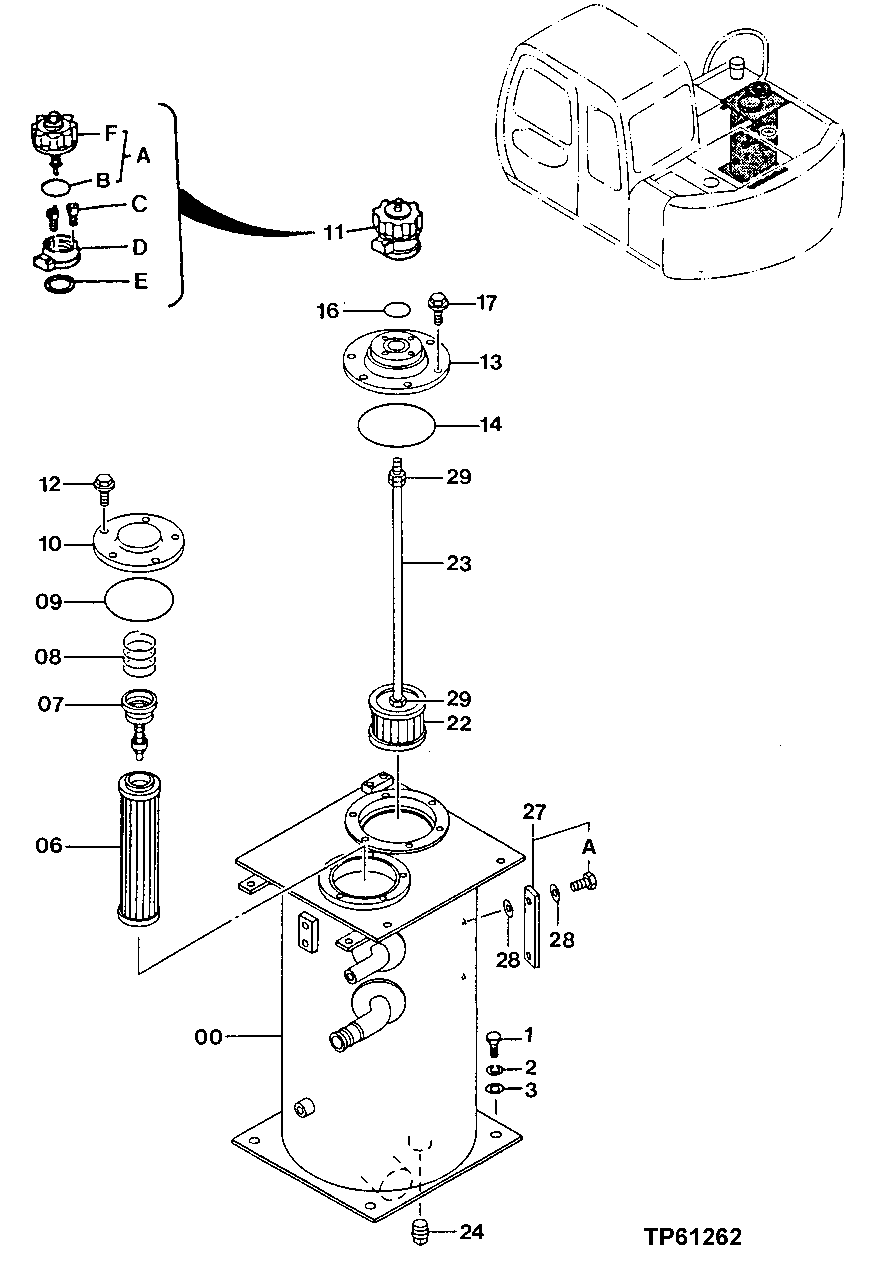

Запчасти John Deere 0 130 - Hydraulic Oil Reservoir and Filter 2160 Vehicle Hydraulics

0

6016946

Hydraulic Reservoir

1шт.

6016946

Hydraulic Reservoir

(SUB FOR AP35963)

1шт.

1

J901632

Bolt

(SUB FOR TH101753)

4шт.

2

12H294

Lock Washer

5/8"

4шт.

3

24M7338

Washer

17 X 30 X 3 mm

4шт.

6

AT308568

Filter Element

(ALSO ORDER CH17213 ) (SUB FO R TH111011 ) (SUB FOR 4225846)

1шт.

7

4094438

Flow Control Hyd. Valve

(SUB FOR TH100663)

1шт.

8

4094439

Spring

(SUB FOR TH100664)

1шт.

9

CH17213

Packing

1шт.

10

4264508

Cover

(SUB FOR AT154296)

1шт.

11

Breather

1шт.

11A

4326285

Cap

(SUB FOR AT167080)

1шт.

11B

T162516

O-Ring

1шт.

11C

19M8146

Screw

M5 X 16

1шт.

11D

4222875

Base

(SUB FOR TH111021)

1шт.

11E

4222876

Packing

(SUB FOR TH111022)

1шт.

11F

4251384

Filter Element

(SUB FOR AT122928)

1шт.

12

19M7938

Cap Screw

M10 X 20

5шт.

12M7066

Lock Washer

10 mm

5шт.

13

Cover

1шт.

14

TH100679

O-Ring

159.300 X 5.700 mm (6.272" X 0.224")

1шт.

16

CH11571

Packing

1шт.

17

19M7402

Cap Screw

M10 X 25

6шт.

22

4687426

Strainer

(SUB FOR AT250687 AND 4396602)

1шт.

23

4396619

Rod

(SUB FOR AT250688)

1шт.

24

94-2026

Plug

(SUB FOR TH101903)

1шт.

27

8053499

Level Gauge

(SUB FOR TH108293)

1шт.

27A

4100967

Bolt

(SUB FOR TH101894)

2шт.

28

449558

Washer

(SUB FOR TH100675)

4шт.

29

14M7274

Nut

M10

3шт.
