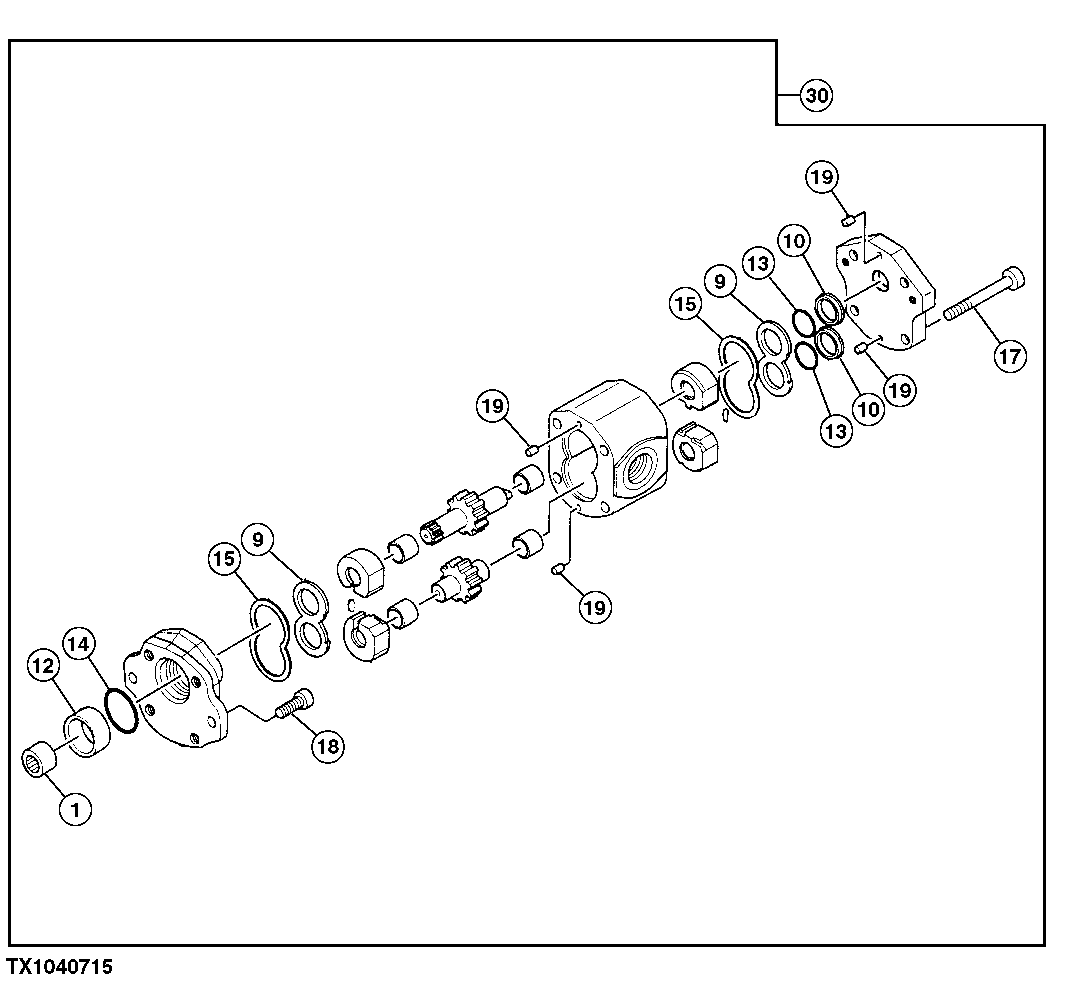

Запчасти John Deere 0 129 - Main Hydraulic Pump Components (Blade) 2160 Vehicle Hydraulics

0

Hydraulic Pump

4377971 NLA; SUB FOR AT250785, CONTAINS A LL ITEMS ON THIS PAGE - ADDITIONAL COMPONEN TS LISTED ON PREVIOUS PAGES Not Illustrated

1шт.

1

0386303

Coupling

1шт.

9

0295002

Plate

SUB FOR TH106820

2шт.

10

0295003

Guide

SUB FOR TH106821

2шт.

12

TH105805

Bushing

1шт.

13

0295006

O-Ring

26 X 2.500 mm (1.024" X 0.098") SUB FOR TH105862

2шт.

14

0295005

O-Ring

42 X 2.400 mm (1.654" X 3/32") SUB FOR TH105861

1шт.

15

0295004

Ring

SUB FOR TH105860

2шт.

17

19M8574

Screw

M10 X 85

4шт.

18

19M8533

Screw

M10 X 25

2шт.

19

0330401

Dowel Pin

5 X 10 mm (0.197" X 0. 394") SUB FOR TH110281

4шт.

30

4714874

Pump

SUB FOR 4397674 AND AT250722

1шт.
