Запчасти John Deere 0 119 - Main Shaft W/ Bearings 2160 Vehicle Hydraulics

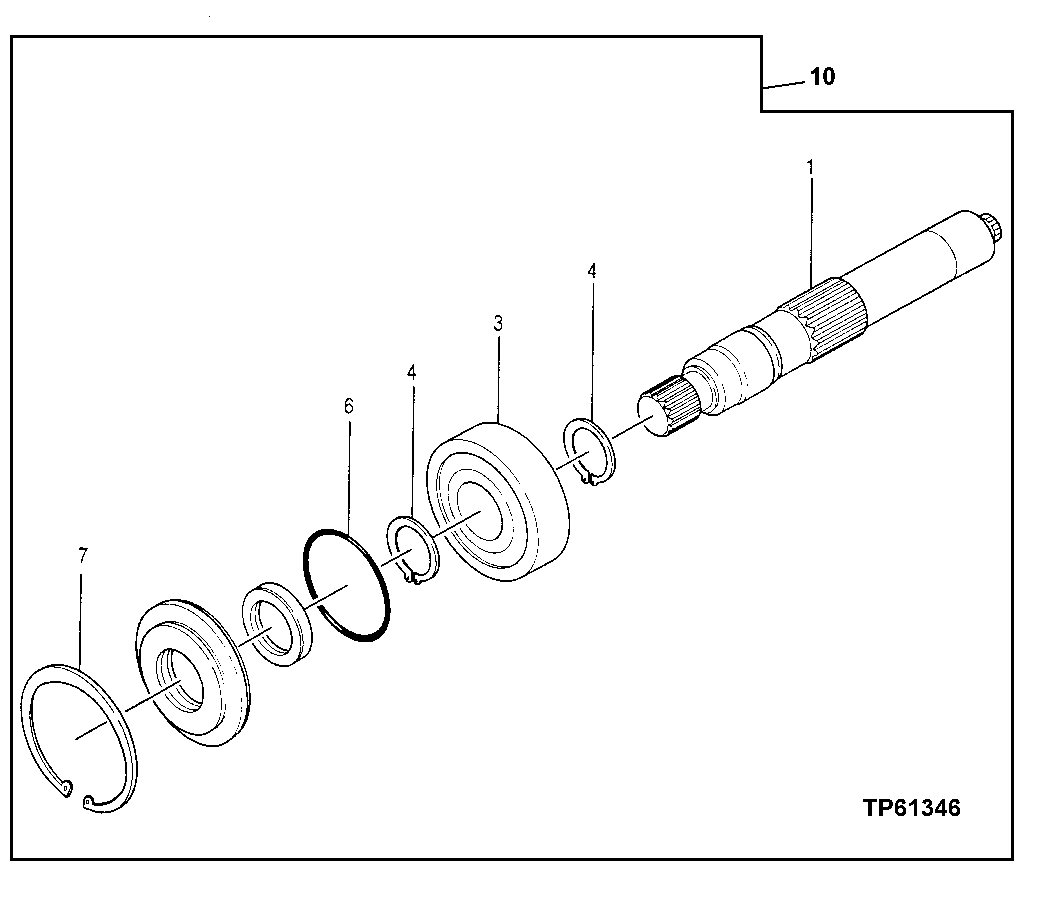

Схема запчастей John Deere 0 - 119 - Main Shaft W/ Bearings 2160 Vehicle Hydraulics

Артикул

Название

Примечание

Количество

0

4373709

Hydraulic Pump

1шт.

AT185235

Hydraulic Pump Reman

(REMAN FOR 4373709) (MARKED AP35930) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS L ISTED ON PREVIOUS AND FOLLOWING PAGES)

1шт.

1

0713201

Shaft

(SUB FOR AT250519)

1шт.

3

0640402

Bearing

(SUB FOR AT250500)

1шт.

4

0407903

Snap Ring

(SUB FOR AT153865)

2шт.

6

U44496

O-Ring

75.870 X 2.616 mm (2.987" X 0.103")

1шт.

7

40M7115

Snap Ring

(SUB FOR AT153850 ) (SUB FOR 0407706)

1шт.

10

4397665

Shaft

(SUB FOR AT250716)

1шт.

Выбрано товаров: 8
