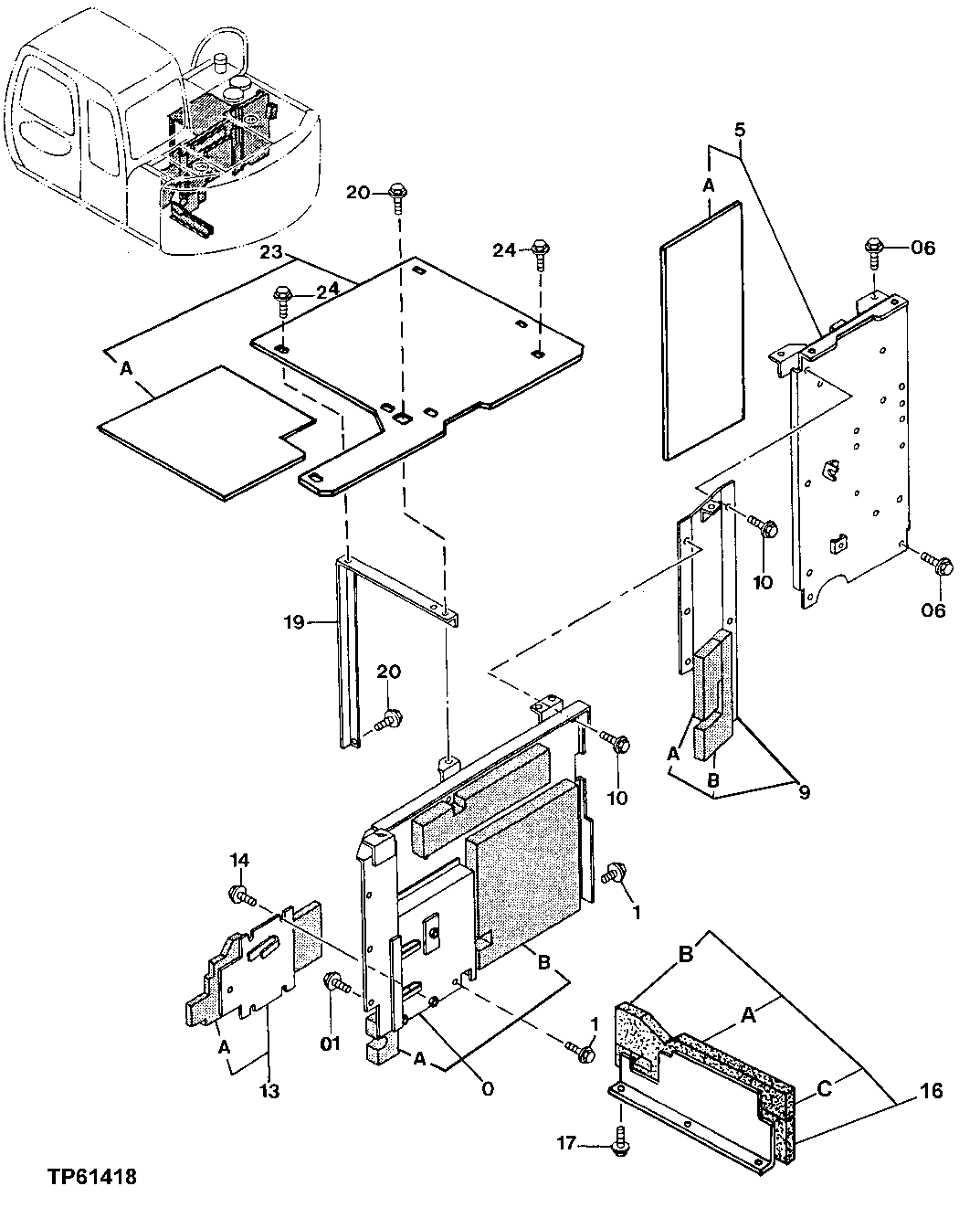

Запчасти John Deere 0 109 - Equipment/Engine Frame Covers and Guards 1910 Hood Or Engine Enclosure

0

7033921

Cover

(SUB FOR AP36057)

1шт.

0A

4332646

Pad

(SUB FOR P65838)

1шт.

0B

4393722

Pad

(SUB FOR P65836)

1шт.

1

19M7402

Cap Screw

M10 X 25

5шт.

12M7066

Lock Washer

10 mm

5шт.

24M7101

Washer

11 X 34 X 3 mm

5шт.

5

7033867

Cover

(SUB FOR AP36055)

1шт.

5A

4374044

Pad

(SUB FOR P65837)

1шт.

6

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7101

Washer

11 X 34 X 3 mm

4шт.

9

8070626

Cover

(SUB FOR AP36059)

1шт.

9A

4393586

Pad

(SUB FOR P65842)

1шт.

9B

4374040

Pad

(SUB FOR P65843)

1шт.

10

19M7402

Cap Screw

M10 X 25

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7101

Washer

11 X 34 X 3 mm

6шт.

13

9747048

Cover

(SUB FOR AP36065)

1шт.

13A

4374043

Pad

(SUB FOR P65848)

1шт.

14

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7101

Washer

11 X 34 X 3 mm

4шт.

16

8070651

Cover

(SUB FOR AP36063)

1шт.

16A

4394466

Pad

(SUB FOR P65845)

1шт.

16B

4394468

Pad

(SUB FOR P65846)

1шт.

16C

4399171

Pad

(SUB FOR P65847)

1шт.

17

19M7402

Cap Screw

M10 X 25

3шт.

12M7066

Lock Washer

10 mm

3шт.

24M7028

Washer

10.500 X 20 X 2 mm

3шт.

19

8066731

Support

(SUB FOR AP36068)

1шт.

20

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

23

8070648

Cover

(SUB FOR AP36061)

1шт.

23A

4374041

Pad

(SUB FOR P65844)

1шт.

24

19M7662

Cap Screw

M10 X 30

7шт.

12M7066

Lock Washer

10 mm

7шт.

24M7101

Washer

11 X 34 X 3 mm

7шт.
