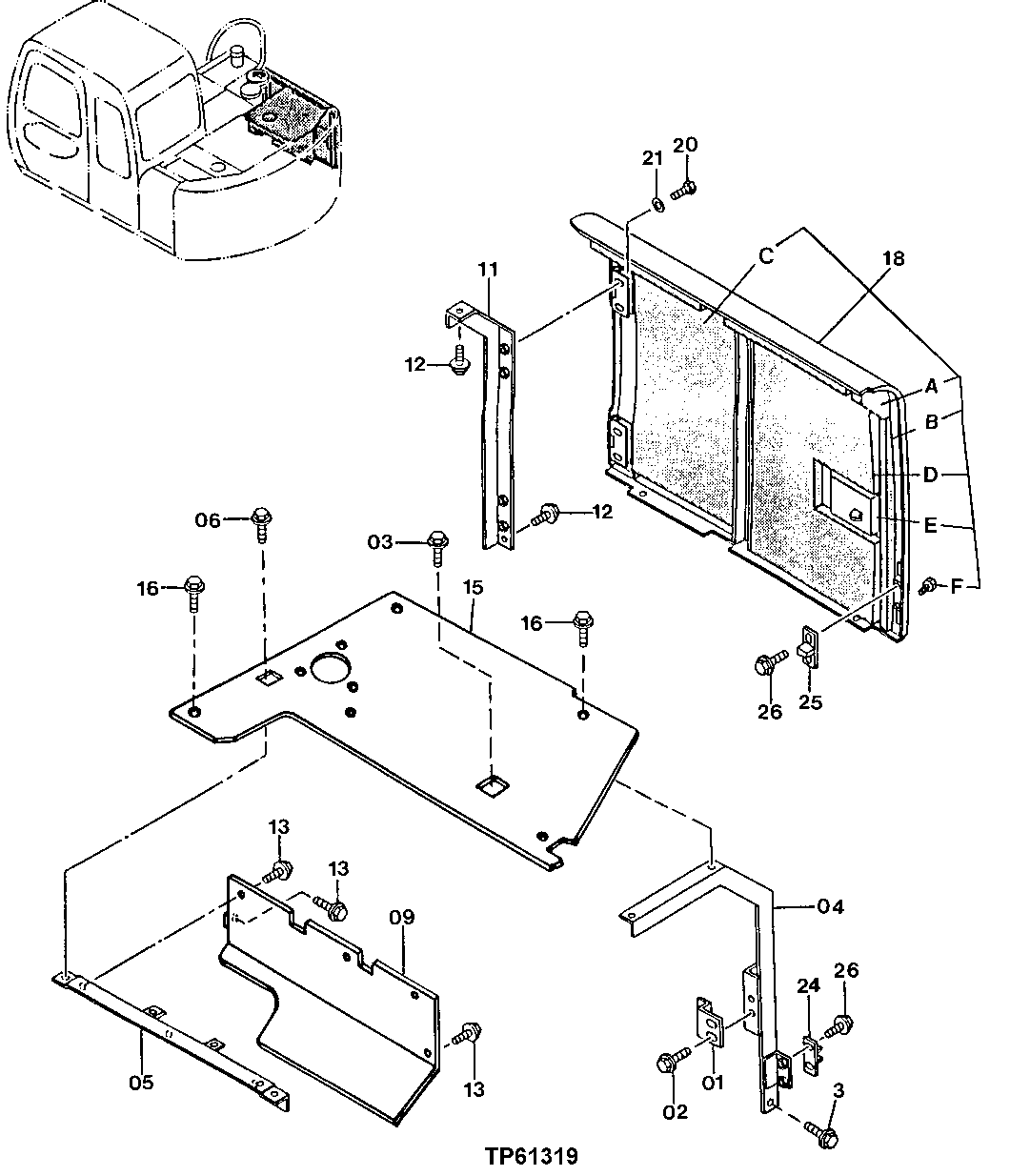

Запчасти John Deere 0 108 - Hydraulic Pump Compartment Top Cover and Supports 1910 Hood Or Engine Enclosure

1

4257087

Stop

SUB FOR AT154930

1шт.

2

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7101

Washer

11 X 34 X 3 mm

2шт.

3

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

4

AP36053

Support

1шт.

5

AP36050

Support

1шт.

6

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

9

AP36051

Cover

1шт.

11

AP36049

Support

1шт.

12

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

13

19M7402

Cap Screw

M10 X 25

5шт.

12M7066

Lock Washer

10 mm

5шт.

24M7101

Washer

11 X 34 X 3 mm

5шт.

15

8070673

Cover

1шт.

AP36052

Cover

1шт.

16

19M7662

Cap Screw

M10 X 30

5шт.

12M7066

Lock Washer

10 mm

5шт.

24M7101

Washer

11 X 34 X 3 mm

5шт.

18

AP36047

Door

1шт.

18A

P61600

Pad

1шт.

18B

P61605

Pad

1шт.

18C

Pad

P65830 NLA

1шт.

18D

Pad

AT185252 NLA

1шт.

18E

AT166994

Latch

1шт.

18F

M63200

Rivet

4.775 mm (3/16")

4шт.

20

19M7662

Cap Screw

M10 X 30

4шт.

21

M135494

Washer

12.500 X 35 X 4.500 mm (0.492" X 1.378 " X 0.177") SUB FOR AT121286 OR 4183252

4шт.

24

4175253

Bracket

SUB FOR AT318015 OR AT154915

1шт.

25

4175254

Stop

SUB FOR AT154916

1шт.

26

19M7923

Cap Screw

M6 X 12

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.
