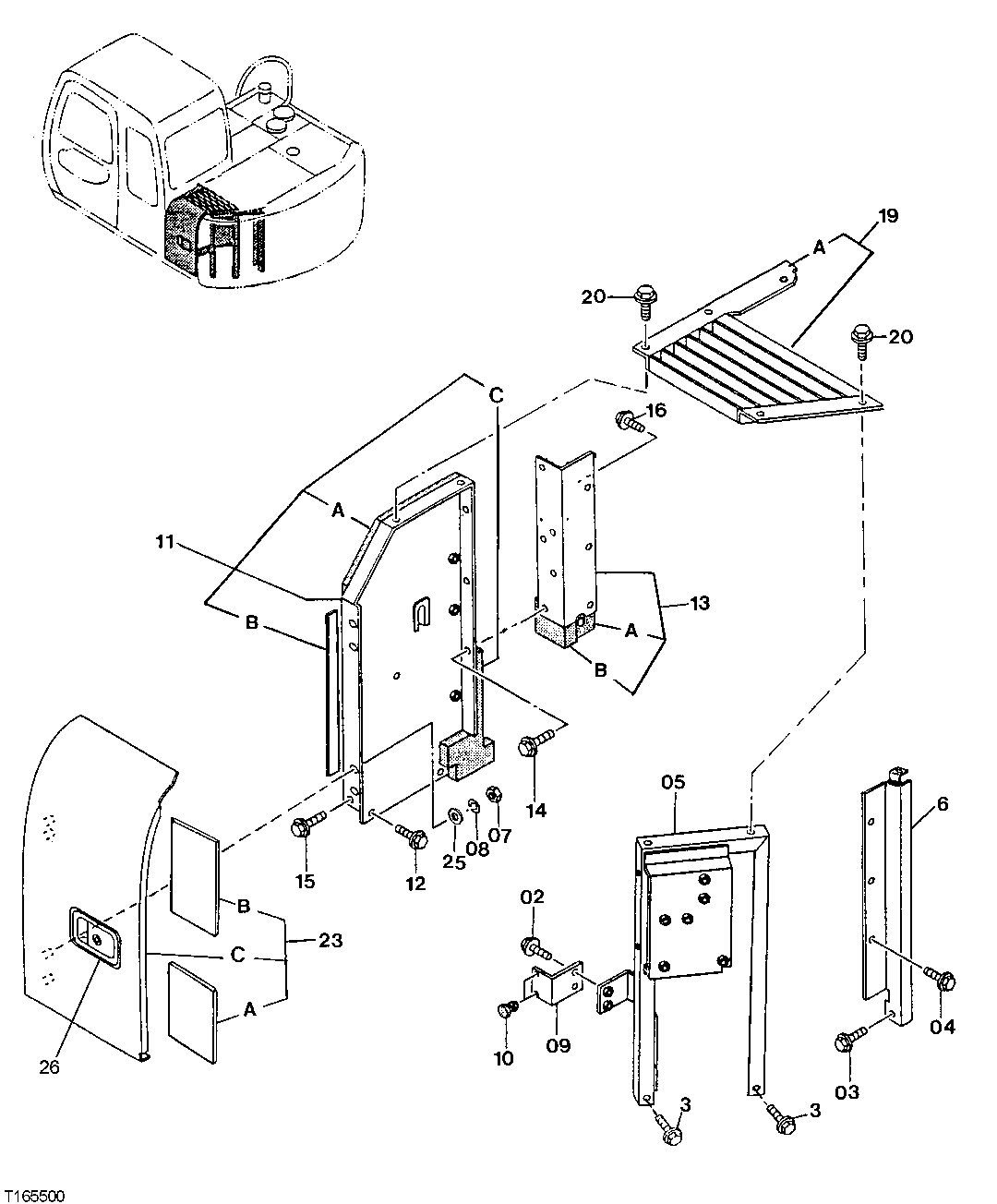

Запчасти John Deere 0 105 - Enclosure - Radiator Door 1910 Hood Or Engine Enclosure

2

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7101

Washer

11 X 34 X 3 mm

2шт.

3

19M7402

Cap Screw

M10 X 25

3шт.

12M7066

Lock Washer

10 mm

3шт.

24M7028

Washer

10.500 X 20 X 2 mm

3шт.

4

19M7402

Cap Screw

M10 X 25

3шт.

12M7066

Lock Washer

10 mm

3шт.

24M7028

Washer

10.500 X 20 X 2 mm

3шт.

5

AP36032

Support

(SUB FOR 7033989)

1шт.

6

8070800

Support

(SUB FOR AP36024)

1шт.

7

14M7274

Nut

M10

4шт.

8

12M7066

Lock Washer

10 mm

4шт.

9

4382963

Stop

(SUB FOR P65791)

1шт.

10

4382964

Bushing

(SUB FOR P65792)

2шт.

11

7033935

Cover

(SUB FOR AP36025)

1шт.

11A

4392044

Pad

(SUB FOR P65785)

1шт.

11B

4381632

Pad

(SUB FOR P65786)

1шт.

11C

4374033

Pad

(SUB FOR P65787)

1шт.

12

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7101

Washer

11 X 34 X 3 mm

2шт.

13

8070684

Support

(SUB FOR AP36010)

1шт.

13A

4395918

Pad

(SUB FOR P65789)

1шт.

13B

4395899

Pad

(SUB FOR P65790)

1шт.

14

19M7402

Cap Screw

M10 X 25

3шт.

12M7066

Lock Washer

10 mm

3шт.

24M7101

Washer

11 X 34 X 3 mm

3шт.

15

19M7572

Cap Screw

M10 X 45 ( J460412 NLA)

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

1шт.

16

19M7402

Cap Screw

M10 X 25

3шт.

12M7066

Lock Washer

10 mm

3шт.

24M7028

Washer

10.500 X 20 X 2 mm

3шт.

19

7033941

Cover

(SUB FOR AP36033)

1шт.

19A

4332580

Pad

(SUB FOR P65794)

1шт.

20

19M7662

Cap Screw

M10 X 30

5шт.

12M7066

Lock Washer

10 mm

5шт.

24M7101

Washer

11 X 34 X 3 mm

5шт.

23

5005387

Door

(SUB FOR AP36008)

1шт.

23A

P65768

Pad

1шт.

23B

4383102

Pad

(SUB FOR P65769)

1шт.

23C

4361763

Lock

(SUB FOR AT214010)

1шт.

25

24M7101

Washer

11 X 34 X 3 mm

4шт.

26

AT166994

Latch

1шт.

M63200

Rivet

4шт.
