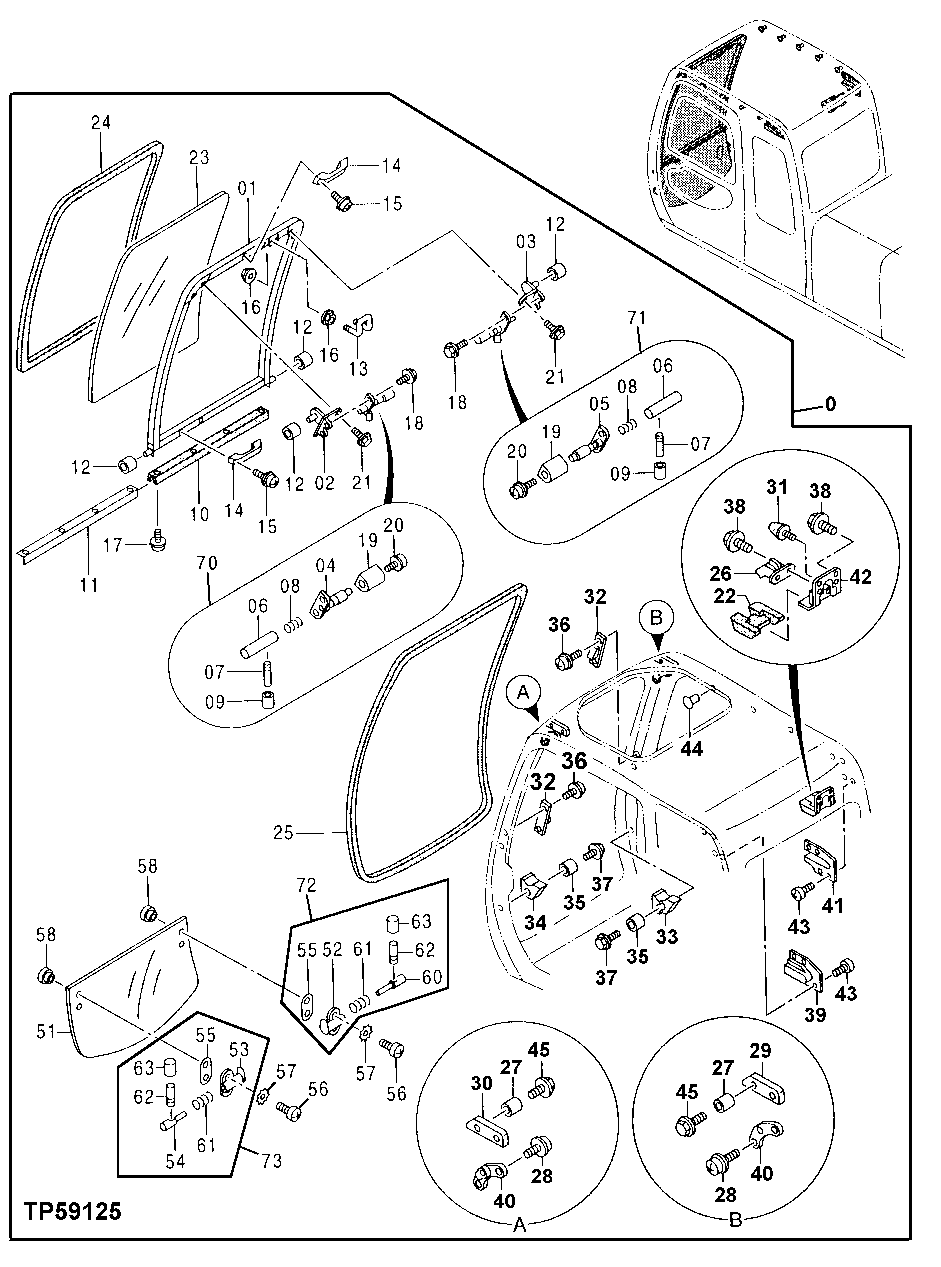

Запчасти John Deere 0 82 - Cab (Front Window) 1810 Operator Enclosure

0

4443758

Cab

SUB FOR 4396798; CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGE S

1шт.

1

4369596

Frame

SUB FOR AT214102

1шт.

2

4369604

Bracket

SUB FOR AT214108

1шт.

3

4369603

Bracket

SUB FOR AT214107

1шт.

4

FYA00045084

Retainer

SUB FOR 4369602 AND AT214106

1шт.

5

4369598

Retainer

SUB FOR AT214103

1шт.

6

4403327

Universal Driveshaft

SUB FOR AT214104, 4369599

2шт.

7

4295480

Lever

SUB FOR AT156993

2шт.

8

494918

Spring

SUB FOR TH106783

2шт.

9

4295876

Cover

SUB FOR AT156994

2шт.

10

4369607

Isolator

SUB FOR AT214111

1шт.

11

4369608

Channel

SUB FOR AT214112

1шт.

12

4369606

Bushing

SUB FOR AT214110

4шт.

13

4369605

Striker

SUB FOR AT214109

1шт.

14

4204579

Handle

SUB FOR TH108661

2шт.

15

19M8425

Cap Screw

M6 X 16

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

16

4414857

Nut

SUB FOR AT157068

4шт.

17

4372214

Screw

SUB FOR AT214301

4шт.

18

4372225

Screw With Washer

SUB FOR AT214311

4шт.

19

4456227

Cover

SUB FOR 4369600 AND AT214105

2шт.

20

J680514

Screw With Washer

SUB FOR AT213610

2шт.

21

Screw With Washer

SUB FOR AT214312; 4377824 NLA

4шт.

19M8011

Cap Screw

M12 X 30

4шт.

24M7128

Washer

12.500 X 24 X 2.500 mm

4шт.

12H301

Lock Washer

1/2"

4шт.

22

4369563

Cover

SUB FOR AT214073

1шт.

23

AT214113

Windowpane

1шт.

24

4369610

Weatherstrip

SUB FOR AT214114

1шт.

25

4369586

Weatherstrip

SUB FOR AT214096

1шт.

26

4369562

Latch

SUB FOR AT214072

1шт.

27

4369582

Bushing

SUB FOR AT214092

4шт.

28

4372210

Screw With Washer

SUB FOR AT214297

4шт.

29

4369580

Stop

SUB FOR AT214090

1шт.

30

4369581

Stop

SUB FOR AT214091

1шт.

31

4204586

Bumper

SUB FOR TH108668

1шт.

32

4369578

Catch

SUB FOR AT214088

4шт.

33

4403593

Stop

SUB FOR AT214085

1шт.

34

4403594

Stop

SUB FOR AT214086

1шт.

35

4369577

Bushing

SUB FOR AT214087

2шт.

36

4372211

Screw With Washer

SUB FOR AT214298

12шт.

37

4372221

Screw With Washer

SUB FOR AT214307

2шт.

38

19M7162

Cap Screw

M8 X 16 SUB FOR AT214308 OR 43722 22, ALONG WITH 24M7036 AND 12M7065

6шт.

24M7036

Washer

9 X 16 X 1.600 mm

6шт.

Washer

12M7065 NLA

6шт.

39

4369584

Cover

SUB FOR AT214094

1шт.

40

4369579

Guide

SUB FOR AT214089

2шт.

41

4369583

Cover

SUB FOR AT214093

1шт.

42

4369564

Bracket

SUB FOR AT214074

1шт.

43

21M7246

Screw

M6 X 16

8шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

8шт.

12M7006

Lock Washer

6 mm

8шт.

44

4372088

Clip

SUB FOR AT214287

10шт.

45

4372224

Screw With Washer

SUB FOR AT214310

4шт.

51

AT214097

Windowpane

1шт.

52

4369590

Latch

SUB FOR AT214098

1шт.

53

4369593

Latch

SUB FOR AT214100

1шт.

54

4204547

Pin

SUB FOR TH108626

1шт.

55

4369594

Gasket

SUB FOR AT214101

2шт.

56

4372213

Screw

SUB FOR AT214300

4шт.

57

4372561

Washer

SUB FOR AT214315

4шт.

58

4369674

Bushing

SUB FOR AT214172

4шт.

60

4369591

Pin Fastener

SUB FOR AT214099

1шт.

61

494918

Spring

SUB FOR TH106783

2шт.

62

4295480

Lever

SUB FOR AT156993

2шт.

63

4295876

Cover

SUB FOR AT156994

2шт.

70

Latch

SUB FOR AT182612; 4395903 NLA - FURNISH COMPONENTS

1шт.

71

4395902

Latch

SUB FOR AT182613

1шт.

72

4395905

Latch

SUB FOR AT182614

1шт.

73

4395904

Latch

SUB FOR AT182616

1шт.
