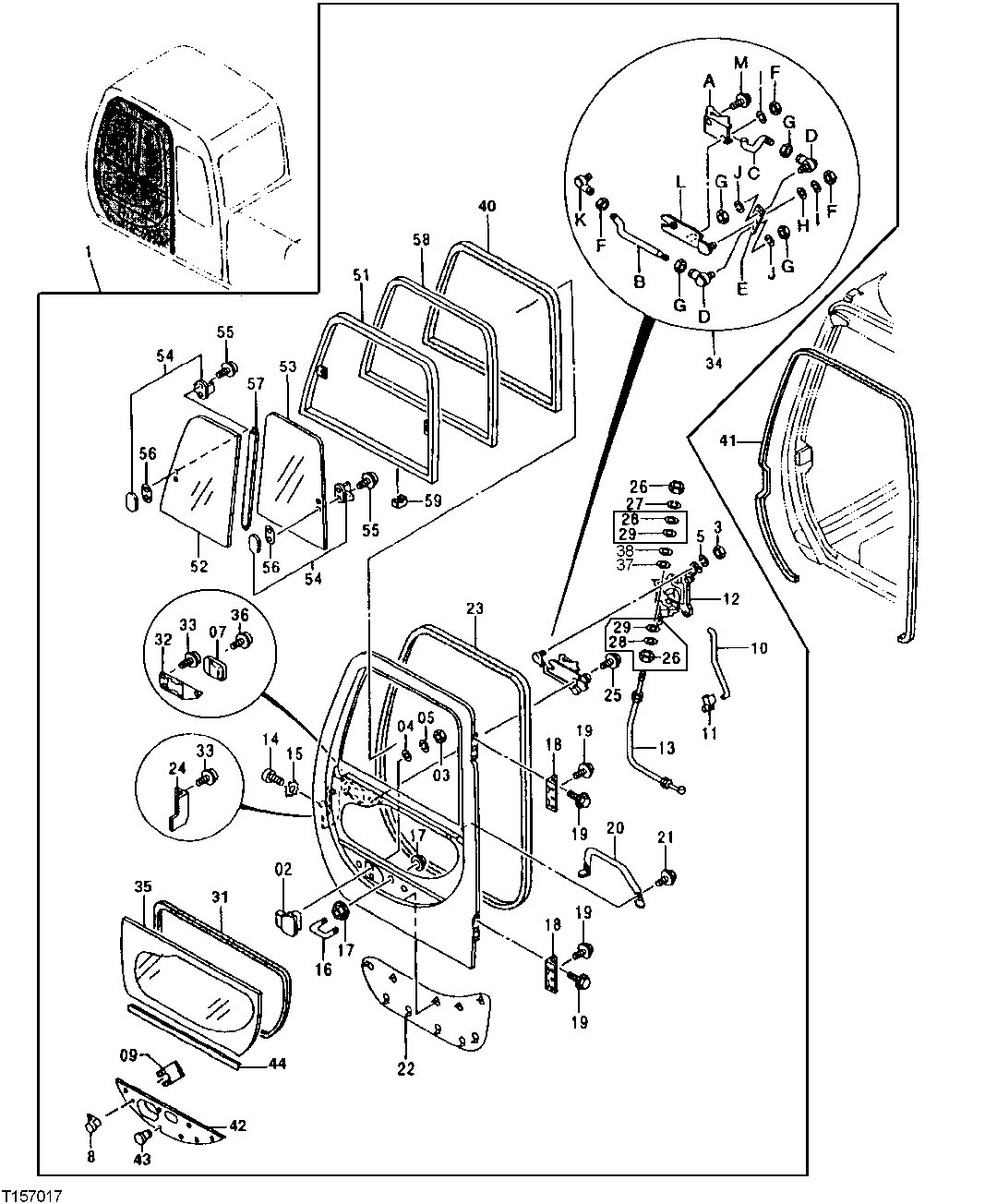

Запчасти John Deere 0 81 - Left Hand Cab Door and Windows 1810 Operator Enclosure

0

4443758

Cab

(SUB FOR 4396798) (NOT ILLUSTRATED) (CONTAI NS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPO NENTS LISTED ON PREVIOUS AND FOLLOWING PAGES )

1шт.

1

4385381

Door

(SUB FOR AT215574)

1шт.

2

4369645

Handle

(SUB FOR AT214145)

1шт.

3

14M7272

Nut

M6

3шт.

4

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

5

12M7006

Lock Washer

6 mm

3шт.

7

4369633

Cover

(SUB FOR AT214133)

1шт.

8

4362135

Lock

(SUB FOR AT176789)

1шт.

AT194969

Key

(SUB FOR AT147803) (H800) Not Illustrated

1шт.

9

4372091

Clip

(SUB FOR AT214290)

1шт.

10

4369643

Rod

(SUB FOR AT214143)

1шт.

11

4372092

Retainer

(SUB FOR AT214291)

1шт.

12

4369631

Lock

(SUB FOR AT214131)

1шт.

13

Cable

( 4369642 NLA - FURNISH 4458077 AL ONG WITH 4458079, 4455981, (3) 43 82885, 4458080) (SUB FOR AT214142)

1шт.

4458077

Cable

1шт.

14

4382885

Bolt

(SUB FOR AT213624, M470625)

3шт.

15

12M7081

Lock Washer

6.400 mm (SUB FOR AT214314 OR 4372560)

3шт.

16

4369661

U-Bolt

(SUB FOR AT214160)

1шт.

17

4414857

Nut

(SUB FOR AT157068)

4шт.

18

4369648

Hinge

(SUB FOR AT214148)

2шт.

19

R168831

Cap Screw

(SUB FOR AT214313, 4372261 OR 4356695)

12шт.

24M7271

Washer

10.500 X 20 X 2 mm

12шт.

20

4369646

Handrail

(SUB FOR AT214146)

1шт.

21

4372225

Screw With Washer

(SUB FOR AT214311)

2шт.

22

4369647

Cover

(SUB FOR AT214147)

1шт.

23

4369662

Weatherstrip

(SUB FOR AT214161)

1шт.

24

4369632

Cover

(SUB FOR AT214132)

1шт.

25

21M7246

Screw

M6 X 16

2шт.

24M7105

Washer

6 X 12 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

26

14M7297

Nut

M5

2шт.

14M7297

Nut

M5

1шт.

27

12M7064

Lock Washer

5 mm

1шт.

28

24M7027

Washer

5.300 X 10 X 1 mm

2шт.

29

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

30

4458080

Seal

Not Illustrated

1шт.

31

4400087

Seal

(SUB FOR AT214289, THIS APPLICATION ) ( ALSO ORDER 4400079 ) (SUB FOR AT218141)

1шт.

4400079

Seal

(ALSO ORDER 4400087)

1шт.

32

4369644

Cover

(SUB FOR AT214144)

1шт.

33

J680510

Screw With Washer

(SUB FOR AT213609)

5шт.

34

4369634

Handle

(SUB FOR AT214134)

1шт.

34A

4369635

Lever

(SUB FOR AT214135)

1шт.

34B

4369636

Rod

(SUB FOR AT214136)

1шт.

34C

4369637

Rod

(SUB FOR AT214137)

1шт.

34D

4369638

Ball Joint

(SUB FOR AT214138)

2шт.

34E

4369639

Strap

(SUB FOR AT214139)

1шт.

34F

14M7272

Nut

M6 (SUB FOR AT214302, 4372215)

3шт.

34G

14M7139

Nut

M4 (SUB FOR AT214303 OR 4372216)

4шт.

34H

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

34I

12M7006

Lock Washer

6 mm

2шт.

34J

12H315

Lock Washer

0.164" (SUB FOR 12M7063)

2шт.

34K

4369640

Ball Joint

(SUB FOR AT214140)

1шт.

34L

4369641

Bracket

(SUB FOR AT214141)

1шт.

34M

J450614

Screw With Washer

(SUB FOR AT213606)

1шт.

35

4369657

Windowpane

(SUB FOR 4383401 ) (SUB FOR AT215568)

1шт.

36

J660512

Bolt

(SUB FOR AT218140)

1шт.

37

4458079

Bushing

1шт.

38

4455981

Bushing

1шт.

40

4369656

Weatherstrip

(SUB FOR AT214155)

1шт.

41

4369663

Weatherstrip

(SUB FOR AT214162)

1шт.

42

4369658

Panel

(SUB FOR AT214157)

1шт.

43

4369659

Clip

(SUB FOR AT214158)

7шт.

44

4369660

Isolator

(SUB FOR AT214159)

1шт.

51

4398091

Frame

(SUB FOR AT183082)

1шт.

52

AT183083

Windowpane

1шт.

53

AT183084

Windowpane

1шт.

54

4369653

Lock

(SUB FOR AT214152)

2шт.

55

J680410

Screw With Washer

(SUB FOR AT213608)

4шт.

56

4420531

Spacer

(SUB FOR AT214292, 4372093)

2шт.

57

4398016

Weatherstrip

(SUB FOR AT183085)

1шт.

58

4398019

Frame

(SUB FOR AT183086)

1шт.

59

4147896

Spacer

(SUB FOR TH108646)

8шт.
