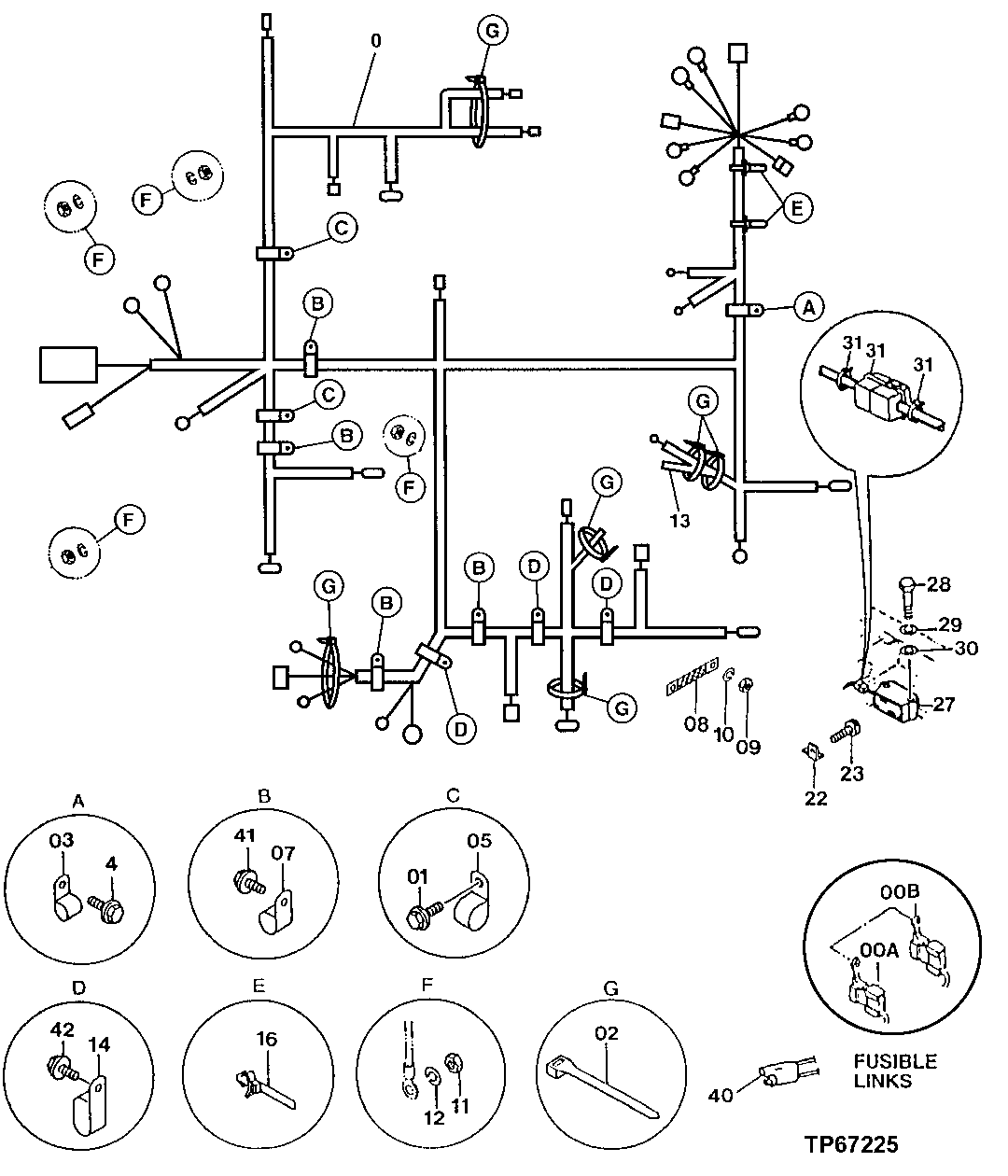

Запчасти John Deere 0 68 - Vehicle Main Wiring Harness and Mounting 1674 Wiring Harness & Switches

0

0003052

Wiring Harness

SUB FOR AP36135

1шт.

0A

4287671

Link

SUB FOR AT191867; FUBISB LE LINK - 80 AMP - BROWN

1шт.

0B

4287670

Fuse

SUB FOR AT200499; FUSIBL E LINK - 60 AMP - YELLOW

1шт.

0C

4374532

Diode

SUB FOR AT179476; NOT ILLUSTRATED, COMPON ENT OF MAIN WIRE HARNESS, PLASTIC CONNECTO R CONTAINS 5 DIODES, 1-KEYSWITCH, 1-SWING STOP CUSHION SOLENOID, 1-GRIP SOLENOID, 1- FUEL SHUTOFF SOLENOID, 1-OPTIONAL EQUIPMEN T

1шт.

1

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

2

H77698

Tie Band

7шт.

3

R73384

Clamp

SUB FOR TH108597 OR 4190253

1шт.

4

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

5

R72659

Clamp

SUB FOR AT122384 OR 4235654

2шт.

7

T24432

Clamp

4шт.

8

AT167399

Ground Cable

1шт.

9

14M7275

Nut

M12

1шт.

10

12H301

Lock Washer

1/2"

1шт.

11

14M7274

Nut

M10

4шт.

12

12M7066

Lock Washer

10 mm

4шт.

13

4395105

Wiring Harness

SUB FOR AP36132; BATTERY RELAY TO STARTER

1шт.

14

4190266

Clip

SUB FOR TH108793

3шт.

16

4254600

Clip

SUB FOR AT154928

2шт.

22

4257159

Bracket

SUB FOR AT154243

1шт.

23

M341010

Screw

SUB FOR P65980

1шт.

27

AT301074

Alarm System

SUB FOR AT154966, 4283028; TRAVEL MOTION

1шт.

28

19M8456

Cap Screw

M8 X 100

2шт.

29

Washer

12M7065 NLA

2шт.

30

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

31

H77698

Tie Band

3шт.

40

AT172578

Wiring Harness

DIODE, USED TO PROTECT AGAINST VOLTAGE SPIKES

1шт.

41

19M7938

Cap Screw

M10 X 20

4шт.

12M7066

Lock Washer

10 mm

4шт.

42

19M7938

Cap Screw

M10 X 20

3шт.

12M7066

Lock Washer

10 mm

3шт.
