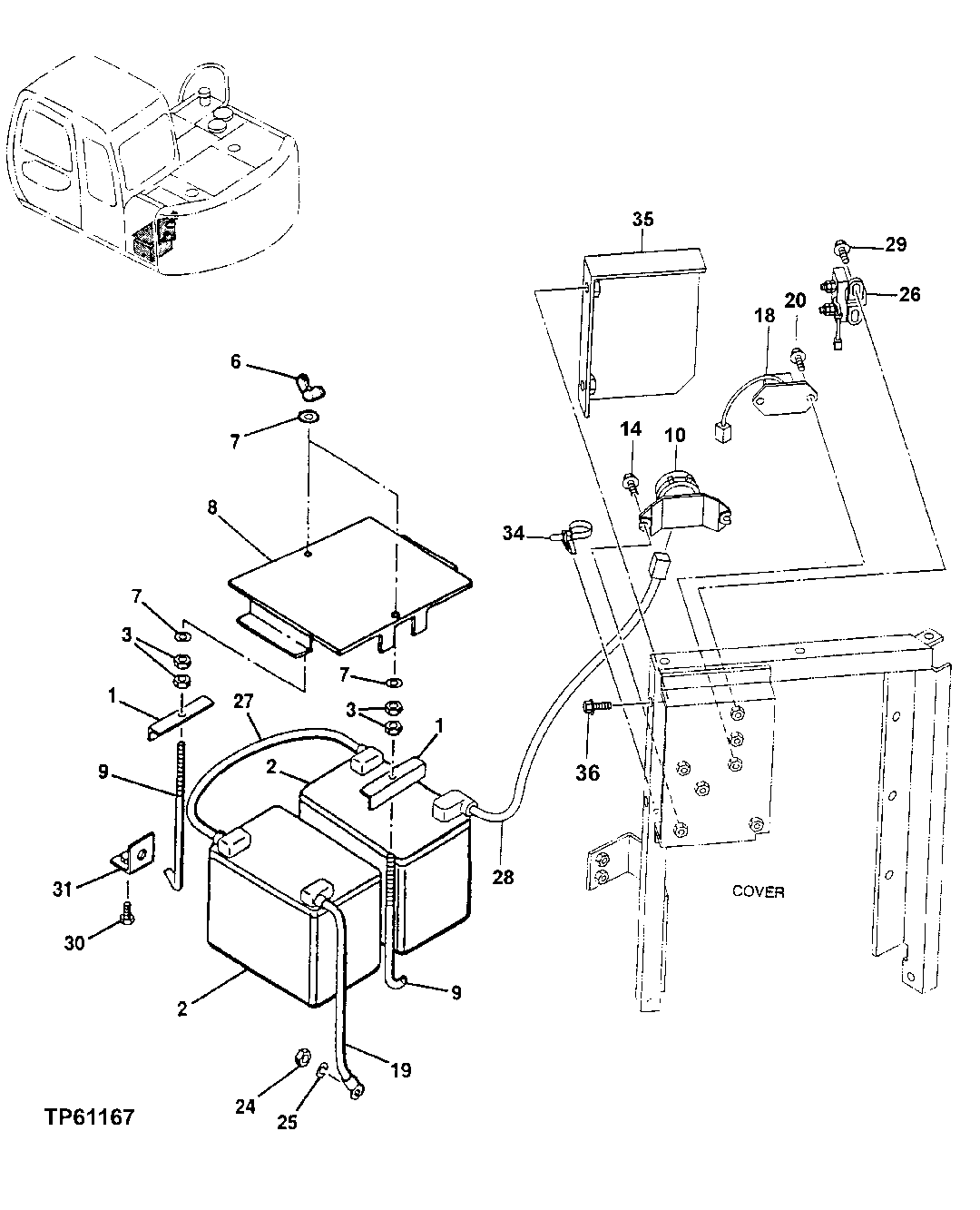

Запчасти John Deere 0 66 - Batteries, Battery Cables and Relay (100000 - ) 1674 Wiring Harness & Switches

1

4257035

Angle

SUB FOR AT200425

2шт.

2

TY25803

Dry Charged Battery

SUB FOR TY21766

2шт.

3

14M7274

Nut

M10

4шт.

6

14M7025

Wing Nut

M10

2шт.

7

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

8

DH800107

Cover

SUB FOR P60923

1шт.

9

4257034

Hook Bolt

SUB FOR AT155273

2шт.

10

8943795431

Relay

SUB FOR 4255762 AND AT154229 Battery

1шт.

14

19M7513

Cap Screw

M8 X 30

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

18

T113924

Relay

1шт.

19

AR45925

Battery Cable

482.600 mm (19") Battery To Ground

1шт.

20

19M7923

Cap Screw

M6 X 12

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

24

14M7274

Nut

M10

1шт.

25

12M7066

Lock Washer

10 mm

1шт.

26

AT211834

Relay

1шт.

27

AP33487

Wiring Harness

1шт.

28

4384721

Cable

SUB FOR AP36131

1шт.

29

19M7923

Cap Screw

M6 X 12

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

30

Bracket

1шт.

31

Bolt

1шт.

34

4254600

Clip

SUB FOR AT154928

2шт.

35

8069958

Cover

SUB FOR AP36434 STARTER AND BATTERY RELAY

1шт.

36

19M7932

Cap Screw

M8 X 16

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.
