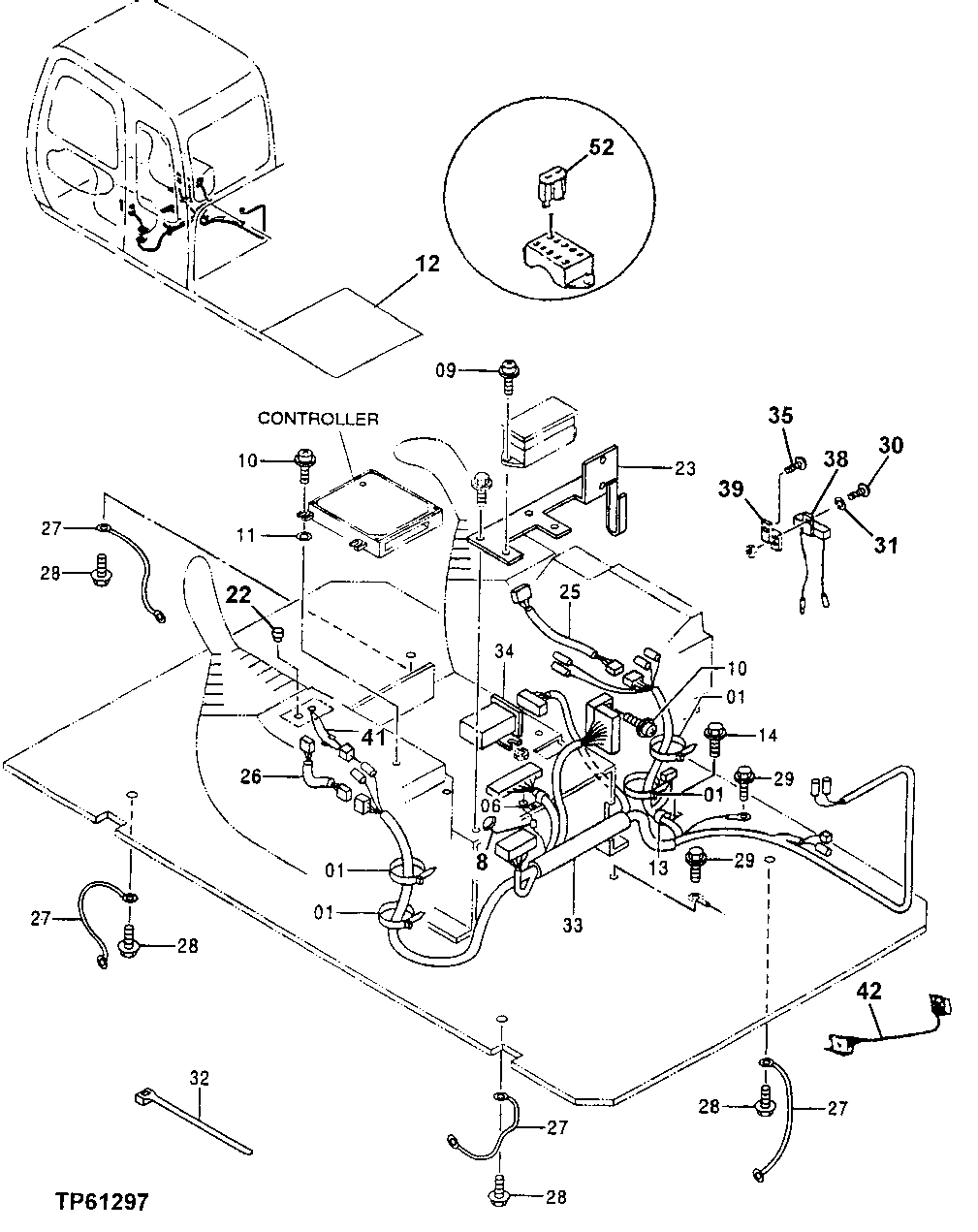

Запчасти John Deere 0 63 - Main Cab Wiring Harness 1674 Wiring Harness & Switches

1

H77698

Tie Band

7шт.

6

T28949

Clamp

(SUB FOR TH108460 OR 4190273)

1шт.

8

4359384

Switch

(SUB FOR AT213984)

1шт.

9

19M7077

Cap Screw

M6 X 20

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

10

Screw With Washer

( J460620 NLA ) (SUB FOR AT200012)

6шт.

21M7267

Screw

M6 X 20

6шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

6шт.

12M7006

Lock Washer

6 mm

6шт.

11

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

12

3075379

Cover

(SUB FOR AT213792)

1шт.

13

R72659

Clamp

(SUB FOR AT122384 OR 4235654)

1шт.

14

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

22

4294437

Cap

(SUB FOR AT215503)

1шт.

23

7033535

Bracket

(SUB FOR AT250737)

1шт.

25

4277927

Wiring Harness

(SUB FOR AT154955) (STARTER SWITCH)

1шт.

26

2037304

Wiring Harness

(SUB FOR AT213738) (RADIO)

1шт.

27

Wiring Harness

(FLOOR PLATE GROUND)

4шт.

28

19M8324

Cap Screw

M10 X 16

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

29

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

30

4204811

Screw

(SUB FOR AT155253)

1шт.

31

12H315

Lock Washer

0.164" (SUB FOR 12M7063)

1шт.

32

H77698

Tie Band

5шт.

33

0003051

Cab Wiring Harness

(SUB FOR AT250780) (CAB) (SEE DTAC SO LUTION FOR REPAIR KIT AND CONNECTORS)

1шт.

33A

4288109

Diode

(SUB FOR AT174465) (NOT IL LUSTRATED) (3 AMP - YELLOW)

1шт.

34

4303583

Relay

(SUB FOR AT250781) (QHS)

1шт.

35

21M7246

Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7105

Washer

6 X 12 X 1.600 mm

1шт.

38

4191772

Resistor

(SUB FOR AT155250) (ALTERNATOR EXITATION)

1шт.

39

4379070

Strap

(SUB FOR AT215559)

1шт.

41

4384758

Switch

Travel Alarm Switch (SUB FOR AT215573)

1шт.

42

Wiring Harness

( AT179050 NLA) (9 FT EXT ENSION) (TO CAB CONNECTOR)

1шт.

AT179051

Wiring Harness

(15 FT EXTENSION) (TO CAB CONNECTOR)

1шт.

52

57M7329

Fuse

1 AMP (BLACK)

6шт.

57M7125

Fuse

5 AMP (TAN)

8шт.

57M7121

Fuse

10 AMP (RED)

3шт.

57M7120

Fuse

20 AMP (YELLOW)

2шт.
