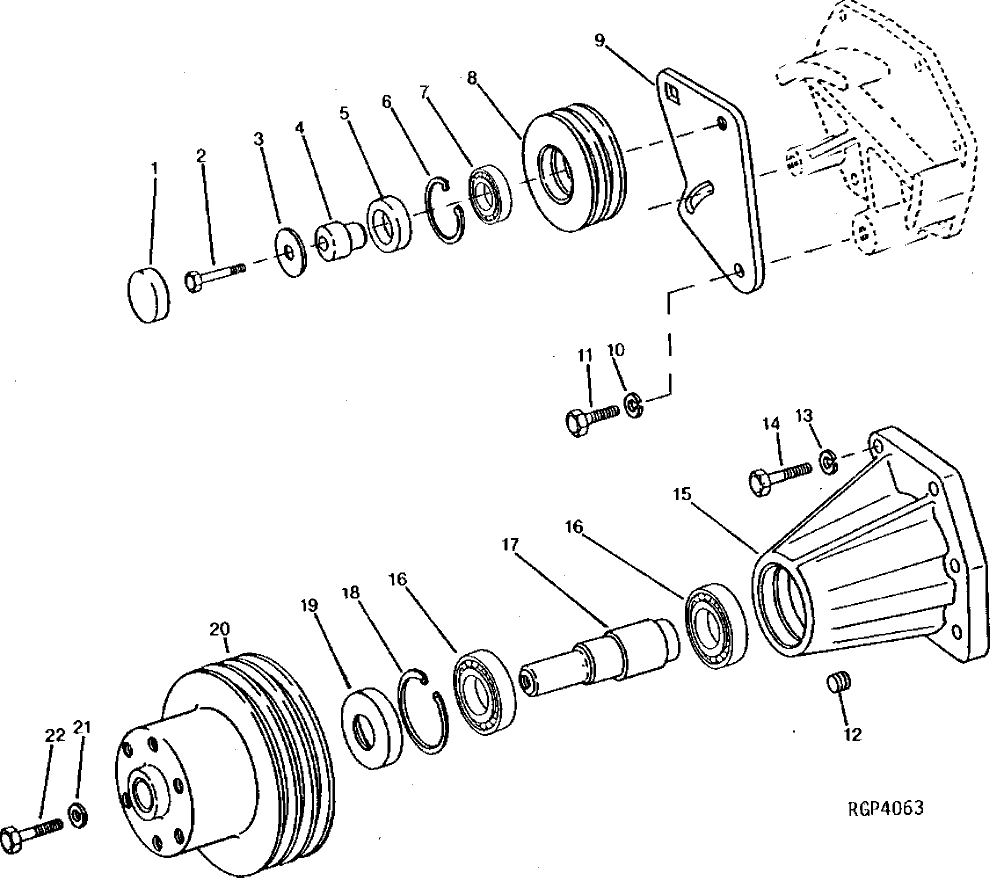

Запчасти John Deere 92DLC 59 - FAN DRIVE PULLEY, SUPPORT AND IDLER PULLEY 0429 FAN DRIVE 6076AT033 6076AT033

1

R66077

Plug

1шт.

2

19H2678

Cap Screw

7/16" X 2-1/8"

1шт.

3

24H1330

Washer

15/32" X 1-3/8" X 7/64"

1шт.

4

R70377

Hub

1шт.

5

AR92593

Seal

1шт.

6

R55408

Wear Ring

1шт.

7

JD8670

Ball Bearing

1шт.

8

R74114

Idler

(A)

1шт.

9

R108737

Bracket

1шт.

10

Lock Washer

NAшт.

11

19H1731

Cap Screw

3/8" X 1"

2шт.

12

15H686

Pipe Plug

(A) 1"

1шт.

13

12H304

Lock Washer

3/8"

4шт.

14

19H3219

Cap Screw

3/8" X 1-3/8"

4шт.

15

R107643

Housing

(A)

1шт.

16

JD10329

Ball Bearing

(A)

2шт.

17

R63987

Shaft

(A)

1шт.

18

R62191

Snap Ring

(A) 1.7 MM (.067") (RED)

ARшт.

R62192

Snap Ring

(A) (1.9 MM (.077") (GREEN)

ARшт.

R62193

Snap Ring

(A) 2.2 MM (.087") (BLUE)

ARшт.

R62194

Snap Ring

(A) 2.5 MM (.097") (WHITE)

ARшт.

19

RE20768

Seal

(A)

1шт.

20

R108392

Pulley

(A)

1шт.

21

T20217

Washer

(A)

1шт.

22

19H3057

Cap Screw

(A) 1/2" X 2-3/4"

1шт.

RE45559

Housing

1шт.
