Запчасти John Deere 92DLC 54 - Starting Motor (24 V 37MT) (Delco-Remy 10478819) (6076) 0422 Starting Motor And Fastenings 6076AT033 6076AT033

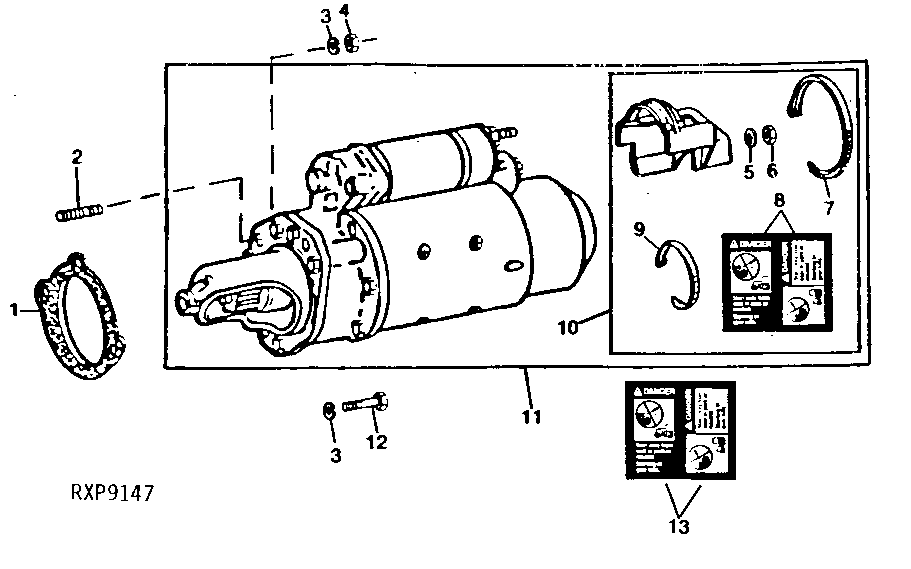

Схема запчастей John Deere 92DLC - 54 - Starting Motor (24 V 37MT) (Delco-Remy 10478819) (6076) 0422 Starting Motor And Fastenings 6076AT033 6076AT033

Артикул

Название

Примечание

Количество

1

R53108

Gasket

NAшт.

2

R114130

Stud

1шт.

3

12H304

Lock Washer

3/8"

NAшт.

4

E55662

Flange Nut

1шт.

5

AR102763

Nut

1шт.

6

14H631

Nut

0.190"

1шт.

7

H113196

Tie Band

1шт.

8

T146102

Label

(ENGLISH)

1шт.

9

R44302

Tie Band

1шт.

10

RE41759

Shield

(DELCO-REMY) (CONTAINED IN RE48134)

1шт.

11

RE48134

Kit

(DELCO-REMY NO. 10478819) (M ARKED RE48077) (SUB RE65175)

1шт.

TY6797

Starter Motor

(ALSO ORDER GROUND STUD)

1шт.

SE501455

Starter Motor

(REMAN FOR RE48134 OR TY6797)

1шт.

RE65175

Starter Motor

(DELCO-REMY NO. 10478819) (MARKED RE59586)

1шт.

SE501408

Starter Motor Reman

(REMAN FOR RE65175)

1шт.

12

19H3219

Cap Screw

3/8" X 1-3/8"

2шт.

13

T146106

Safety Sign

(SPANISH)

1шт.

T146104

Safety Sign

(FRENCH)

1шт.

T146515

Safety Sign

(GERMAN)

1шт.

T146516

Safety Sign

(ITALIAN)

1шт.

T146517

Safety Sign

(ENGLISH/FRENCH)

1шт.

Выбрано товаров: 21
