42 - Fuel Shut-Off Bracket And Electric Shut-Off Solenoid

Запчасти John Deere 92DLC 42 - Fuel Shut-Off Bracket And Electric Shut-Off Solenoid 0413 Fuel Injection System 6076AT033 6076AT033

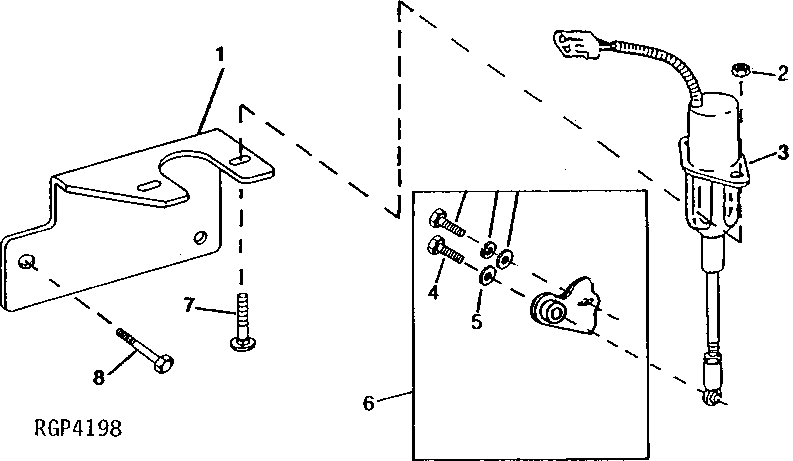

Схема запчастей John Deere 92DLC - 42 - Fuel Shut-Off Bracket And Electric Shut-Off Solenoid 0413 Fuel Injection System 6076AT033 6076AT033
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R120533

Bracket

1шт.

2

14M7165

Lock Nut

M6

2шт.

3

RE55416

Relay

(24 VOLT)

1шт.

4

19H1914

Cap Screw

1/4" X 1"

1шт.

5

24H1287

Washer

9/32" X 5/8" X 0.065"

1шт.

6

RE54741

Lever

1шт.

7

03M7068

Bolt

M6 X 20

2шт.

8

19H1822

Cap Screw

7/16" X 1"

2шт.
