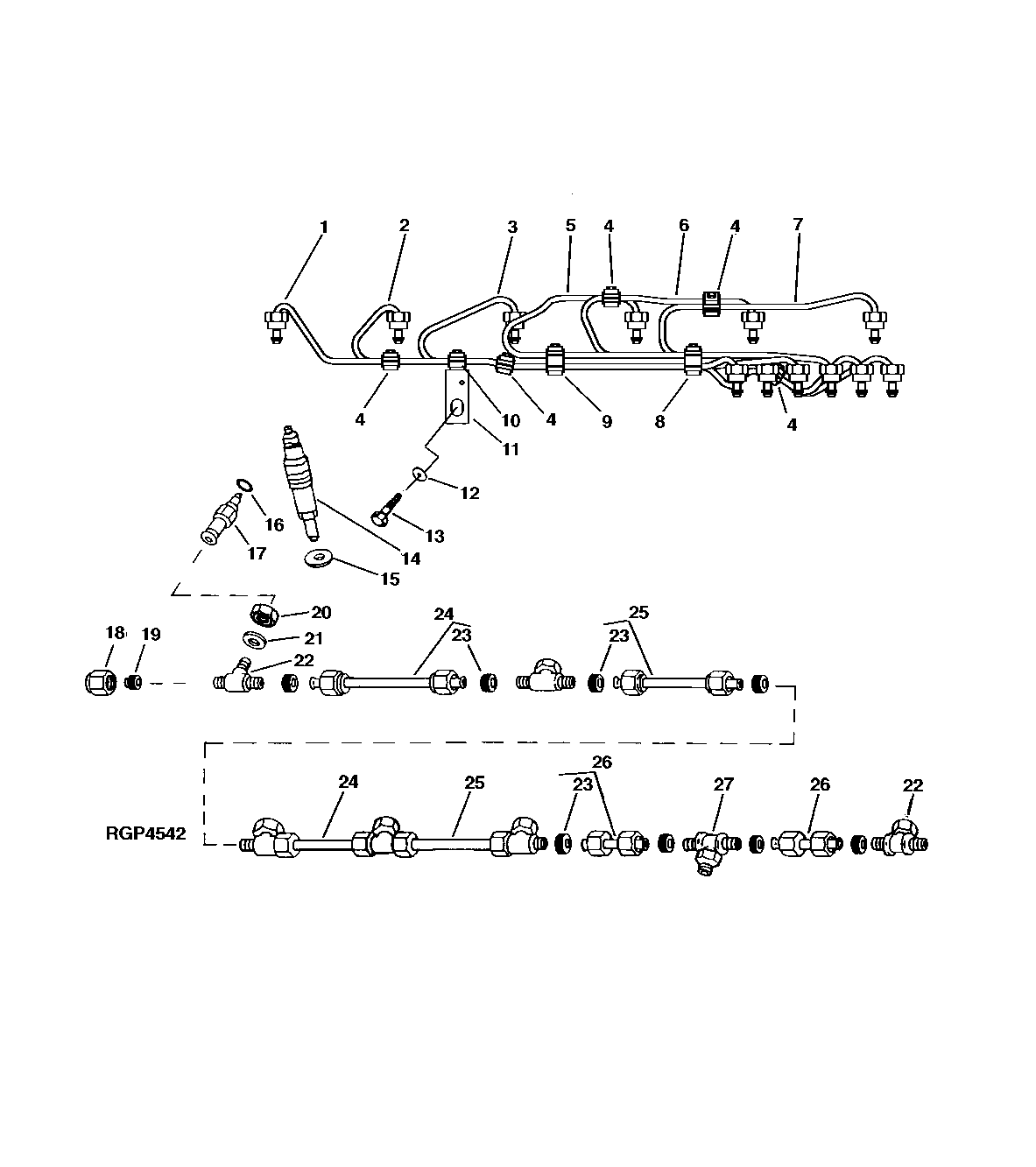

Запчасти John Deere 92DLC 38 - Fuel Injection Nozzles and Lines (558134 - ) 0413 Fuel Injection System 6076AT033 6076AT033

1

RE48434

Fuel Line

NO. 6

1шт.

2

RE48433

Fuel Line

NO. 5

1шт.

3

RE48432

Fuel Line

NO. 4

1шт.

4

R120185

Bolt

5шт.

R58186

Clamp

10шт.

R120181

Strap

5шт.

R120182

Strap

5шт.

5

RE48431

Fuel Line

NO. 3

1шт.

6

RE48430

Fuel Line

NO. 2

1шт.

7

RE48429

Fuel Line

NO. 1

1шт.

8

R120186

Bolt

2шт.

R71212

Clamp

1шт.

R120183

Strap

1шт.

R120184

Strap

1шт.

R59297

Half Clamp

2шт.

9

R59297

Half Clamp

2шт.

R120183

Strap

1шт.

R71212

Clamp

1шт.

R74804

Clamp

1шт.

R120186

Bolt

1шт.

R120184

Strap

1шт.

10

R120185

Bolt

2шт.

R59297

Half Clamp

2шт.

R120183

Strap

2шт.

11

RE55662

Absorber

1шт.

12

24H1884

Washer

13/32" X 13/16" X 0.120"

1шт.

13

19M7166

Cap Screw

M10 X 20

1шт.

14

RE46364

Injection Nozzle

(A) (ROBERT BOSCH)

6шт.

SE500178

Injection Nozzle Reman

(PKG OF 6) (NLA)

1шт.

SE501119

Injection Nozzle Reman

(PKG OF 1) (REMAN FOR RE46364)

ARшт.

RE30159

Injection Nozzle

(A) (DENSO) (SUB RE52109 AND R84472 OR SE500350 OR SE501136)

6шт.

SE500349

Injection Nozzle Reman

(PKG OF 6) (NLA)

1шт.

SE501135

Injection Nozzle Reman

(PKG OF 1) (REMAN FOR RE30159)

ARшт.

RE52109

Injection Nozzle

(DENSO)

6шт.

SE500350

Injection Nozzle Reman

(PKG OF 6) (NLA)

1шт.

SE501136

Injection Nozzle Reman

(PKG OF 1) (REMAN FOR RE52109)

ARшт.

15

R84472

Washer

7.360 X 18.160 X 2 mm

6шт.

16

R77551

O-Ring

6шт.

17

R87082

Fitting

(ALSO ORDER R77551)

6шт.

18

R51937

Tube Nut

1шт.

19

AR85519

Plug

1шт.

20

R79604

Tube Nut

6шт.

21

R79605

Washer

6шт.

22

R79606

Tee Fitting

6шт.

23

R51936

Sealing Washer

11шт.

24

RE15807

Fuel Line

2шт.

25

RE15808

Fuel Line

2шт.

26

RE36421

Fuel Line

2шт.

27

R97061

Tee Fitting

1шт.
