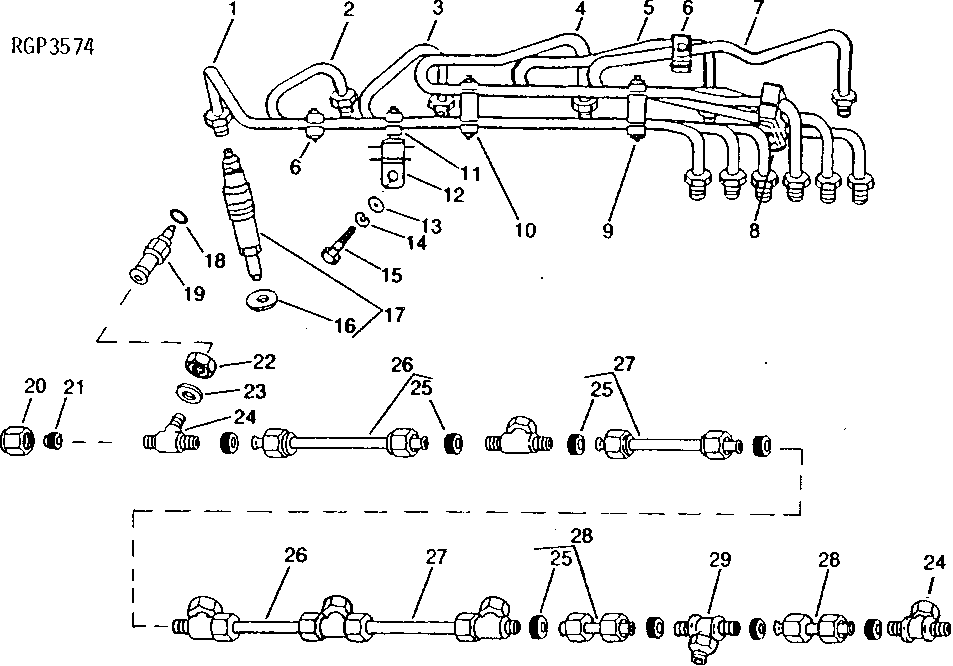

Запчасти John Deere 92DLC 37 - Fuel Injection Nozzles and Lines ( - 558133) 0413 Fuel Injection System 6076AT033 6076AT033

1

RE48434

Fuel Line

NO. 6

1шт.

2

RE48433

Fuel Line

NO. 5

1шт.

3

RE48432

Fuel Line

NO. 4

1шт.

4

RE48431

Fuel Line

NO. 3

1шт.

5

RE48430

Fuel Line

NO. 2

1шт.

6

R59305

Strap

2шт.

R58186

Clamp

8шт.

R61144

Strap

2шт.

21H1463

Cap Screw

0.190" X 7/8"

2шт.

7

RE48429

Fuel Line

NO. 1

1шт.

8

R59298

Strap

1шт.

R59297

Half Clamp

2шт.

21H1463

Cap Screw

0.190" X 7/8"

2шт.

9

R59298

Strap

2шт.

R71212

Clamp

1шт.

R61145

Strap

1шт.

R71398

Screw

4.826 X 38.100 mm

2шт.

10

R59305

Strap

1шт.

R58186

Clamp

1шт.

R74030

Clamp

1шт.

R74804

Clamp

1шт.

R61144

Strap

1шт.

R71398

Screw

4.826 X 38.100 mm

1шт.

11

R59298

Strap

1шт.

R59297

Half Clamp

2шт.

21H1463

Cap Screw

0.190" X 7/8"

2шт.

12

RE47120

Absorber

1шт.

13

24H1305

Washer

13/32" X 13/16" X 0.065"

1шт.

14

12M7066

Lock Washer

10 mm

1шт.

15

19M7166

Cap Screw

M10 X 20

1шт.

16

R84472

Washer

7.360 X 18.160 X 2 mm

6шт.

17

RE46364

Injection Nozzle

(ROBERT BOSCH)

6шт.

SE500178

Injection Nozzle Reman

(PKG OF 6) (NLA)

1шт.

SE501119

Injection Nozzle Reman

(PKG OF 1) (REMAN FOR RE46364)

ARшт.

RE30159

Injection Nozzle

(DENSO) (SUB RE52109 AND R84 472 OR SE500350 OR SE501136)

6шт.

SE500349

Injection Nozzle Reman

(PKG OF 6) (NLA)

1шт.

SE501135

Injection Nozzle Reman

(PKG OF 1) (REMAN FOR RE30159)

ARшт.

RE52109

Injection Nozzle

(DENSO)

6шт.

SE500350

Injection Nozzle Reman

(PKG OF 6) (NLA)

1шт.

SE501136

Injection Nozzle Reman

(PKG OF 1) (REMAN FOR RE52109)

ARшт.

18

R77551

O-Ring

6шт.

19

R87082

Fitting

(ALSO ORDER R77551)

6шт.

20

R51937

Tube Nut

1шт.

21

AR85519

Plug

1шт.

22

R79604

Tube Nut

6шт.

23

R79605

Washer

6шт.

24

R79606

Tee Fitting

6шт.

25

R51936

Sealing Washer

11шт.

26

RE15807

Fuel Line

2шт.

27

RE15808

Fuel Line

2шт.

28

RE36421

Fuel Line

2шт.

29

R97061

Tee Fitting

1шт.

RE16142

Fuel Line

(FUEL RETURN FRONT)

1шт.
