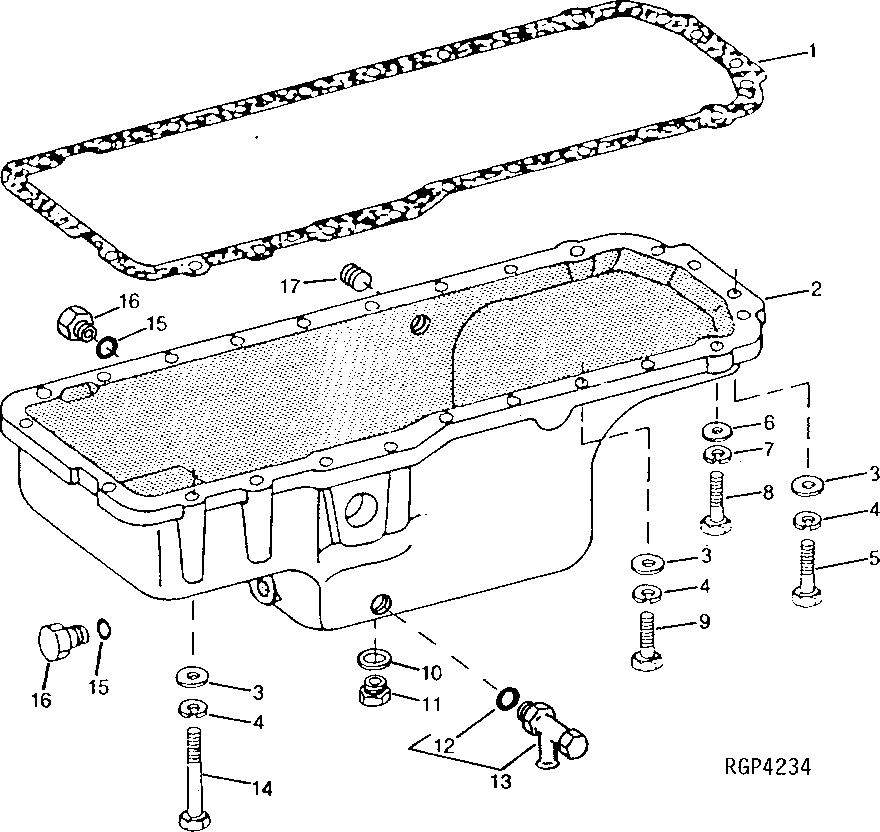

Запчасти John Deere 92DLC 32 - Oil Pan 0407 OILING SYSTEM 6076AT033 6076AT033

1

R49377

Gasket

1шт.

2

RE52106

Oil Pan

1шт.

3

24H1305

Washer

13/32" X 13/16" X 0.065"

22шт.

4

12H304

Lock Washer

3/8"

22шт.

5

19H3485

Cap Screw

3/8" X 2"

4шт.

6

24H1756

Washer

1/2" X 1" X 0.060"

2шт.

7

12H301

Lock Washer

1/2"

2шт.

8

19H2473

Cap Screw

1/2" X 1-3/4"

2шт.

9

19H3267

Cap Screw

3/8" X 1-5/8"

18шт.

10

A4827R

Washer

25.400 X 31.700 X 1.500 mm

1шт.

11

R26727

Drain Plug

1шт.

12

R47151

O-Ring

1шт.

13

AT152180

Drain Valve

1шт.

14

19H3485

Cap Screw

3/8" X 2"

2шт.

15

F3171R

O-Ring

2шт.

16

R27175

Drain Plug

2шт.

17

15H690

Pipe Plug

3/4"

1шт.
