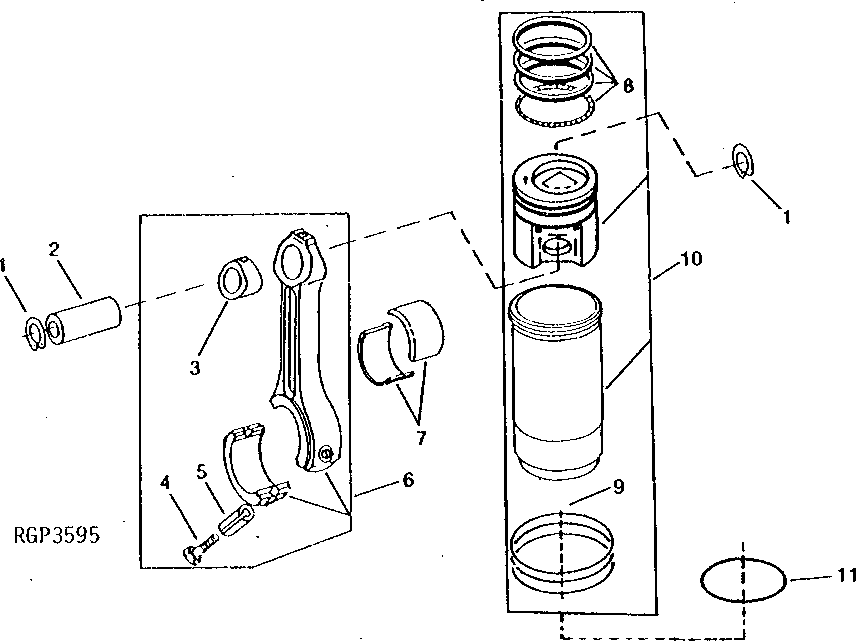

Запчасти John Deere 92DLC 22 - Piston, Rings, Liners and Connecting Rods 0403 Connecting Rods And Pistons 6076AT033 6076AT033

1

E1343FN

Snap Ring

12шт.

2

R57771

Piston Pin

6шт.

3

R74008

Bushing

6шт.

4

R66452

Cap Screw

12шт.

5

R53292

Sleeve

12шт.

6

AR93341

Connecting Rod

(MARKED R71074)

6шт.

SE500498

Connecting Rod Reman

(MARKED R71074) (REMAN FOR AR93341)

ARшт.

7

AR73277

Bearing

STD (PKG (2) R57583)

ARшт.

AR73278

Bearing

0.05MM (.002") US (PKG (2) R60485)

ARшт.

AR73279

Bearing

0.25MM (.010") US (PKG (2) R60486)

ARшт.

AR73280

Bearing

0.51MM (.020") US (PKG (2) R60487)

ARшт.

AR73281

Bearing

0.76MM (.030") US (PKG (2) R60488)

ARшт.

8

RE57517

Piston Ring Kit

6шт.

9

AR98850

O-Ring Kit

6шт.

10

RE60294

Piston-Liner Kit

(MARKED RE57512)

6шт.

11

R93948

Shim

0.05MM (.002") (MAXIMUM)

2шт.
