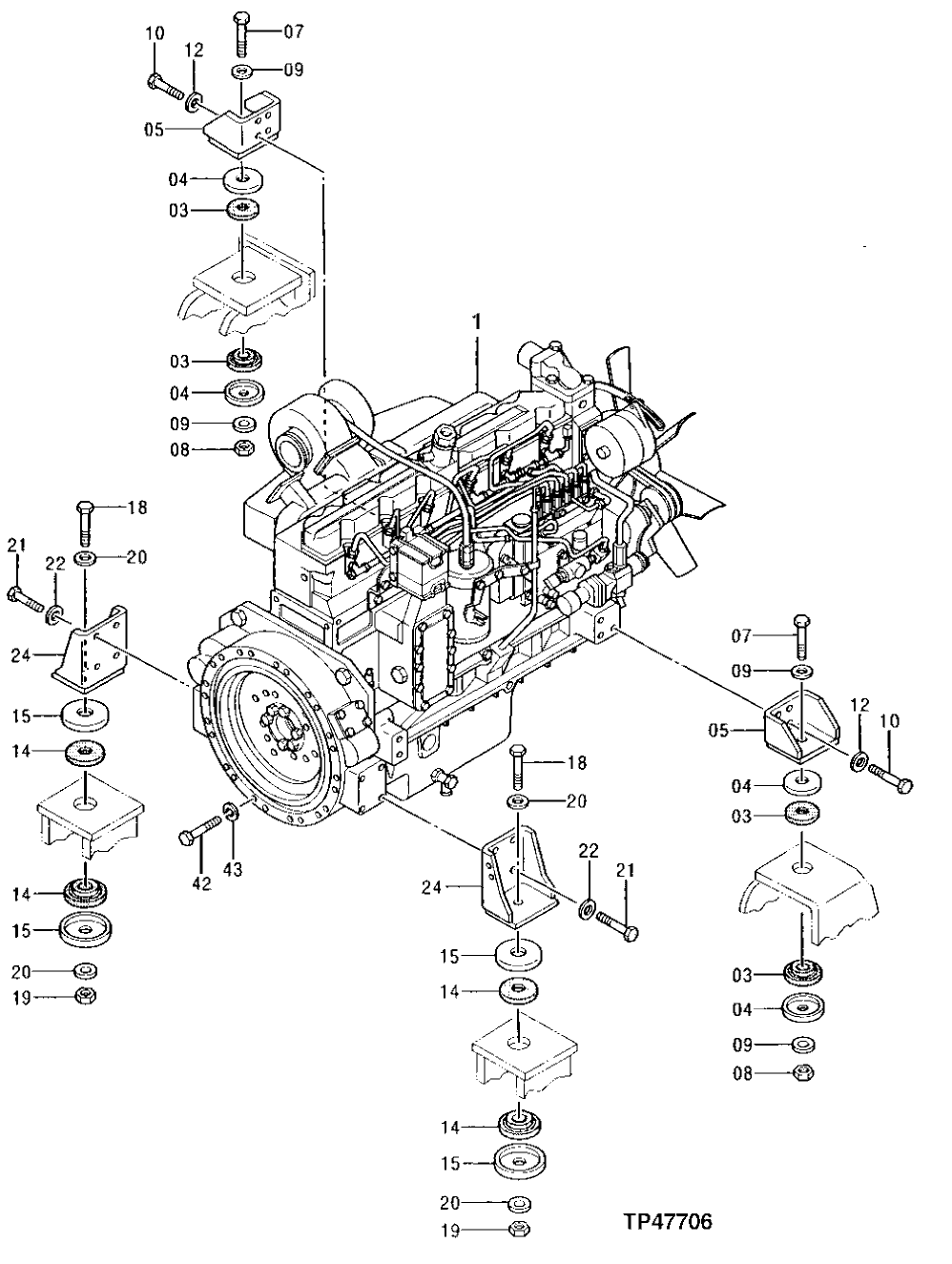

Запчасти John Deere 92DLC 14 - Engine Mounting 0400 REMOVAL AND INSTALLATION 6076AT033 6076AT033

1

Engine

1шт.

3

4256314

Isolator

(SUB FOR AT200995)

4шт.

4

4189018

Retainer

(SUB FOR TH109410)

4шт.

5

8054194

Bracket

(SUB FOR AT201138)

2шт.

7

J911816

Bolt

(SUB FOR TH110084)

2шт.

8

J951018

Nut

(SUB FOR TH100890)

2шт.

9

24M7353

Washer

20 X 34 X 3 mm

4шт.

10

19H2599

Cap Screw

5/8" X 2-1/2"

7шт.

12

24M7338

Washer

17 X 30 X 3 mm

7шт.

14

4197145

Isolator

(SUB FOR TH109409)

4шт.

15

4197147

Stop

(SUB FOR TH109411)

4шт.

18

19M7968

Cap Screw

M20 X 130

2шт.

19

14M7277

Nut

M20

2шт.

20

N231749

Washer

20.620 X 38.100 X 6.350 mm

4шт.

21

19H2994

Cap Screw

5/8" X 1-1/2"

8шт.

22

24M7338

Washer

17 X 30 X 3 mm

8шт.

24

8056547

Bracket

(SUB FOR AT201156)

2шт.

42

19H3483

Cap Screw

3/8" X 1-1/8"

12шт.

43

12H304

Lock Washer

3/8"

12шт.
