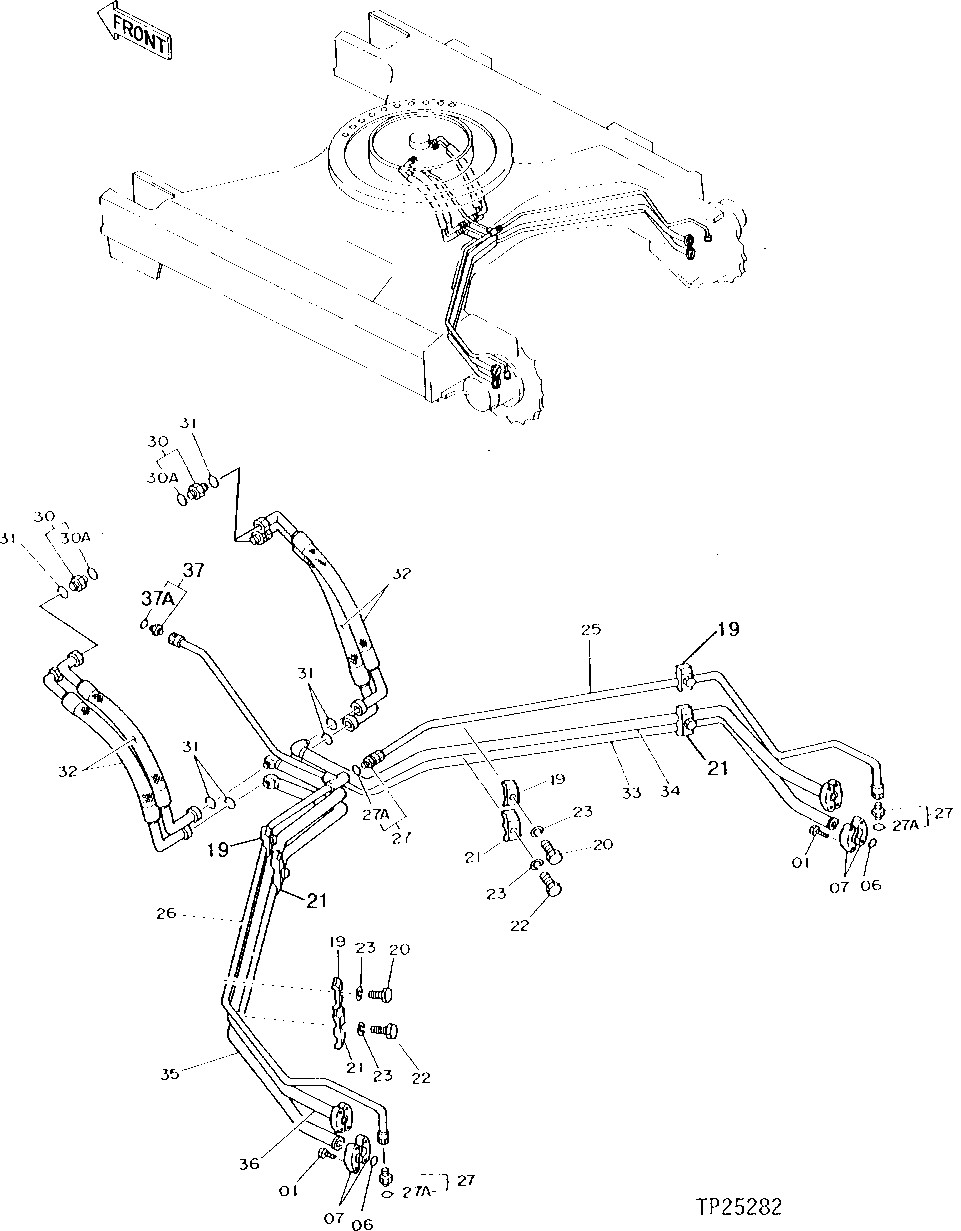

Запчасти John Deere 92DLC 13 - PROPEL HYDRAULIC LINES 0260 HYDRAULIC SYSTEM

1

19M8395

Screw

M12 X 40

16шт.

6

T78313

O-Ring

32.920 X 3.530 mm

4шт.

7

4085560

Flange Fitting

(SUB FOR TH101960)

8шт.

19

4190124

Clamp

(SUB FOR TH108727)

4шт.

20

19M7493

Cap Screw

M12 X 40

4шт.

21

4189860

Clamp

(SUB FOR TH108314)

4шт.

22

19M7363

Cap Screw

M12 X 60

4шт.

23

12H301

Lock Washer

1/2"

8шт.

25

7018543

Oil Line

(SUB FOR TH111449)

1шт.

26

7018544

Oil Line

(SUB FOR TH111450)

1шт.

27

4200466

Adapter Fitting

(SUB FOR TH108320)

3шт.

27A

CH11570

O-Ring

1шт.

30

4189601

Adapter Fitting

(SUB FOR AT107394)

4шт.

30A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

31

T76938

O-Ring

23.520 X 1.780 mm

8шт.

32

4210317

Hydraulic Hose

(SUB FOR TH111368)

4шт.

33

7018882

Oil Line

(SUB FOR TH111457)(RIGHT REVERSE)

1шт.

34

7018879

Oil Line

(SUB FOR TH111454)(RIGHT FORWARD)

1шт.

35

7018881

Oil Line

(SUB FOR TH111456)(LEFT REVERSE)

1шт.

36

7018880

Oil Line

(SUB FOR TH111455)(LEFT FORWARD)

1шт.

37

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

37A

CH11570

O-Ring

1шт.
