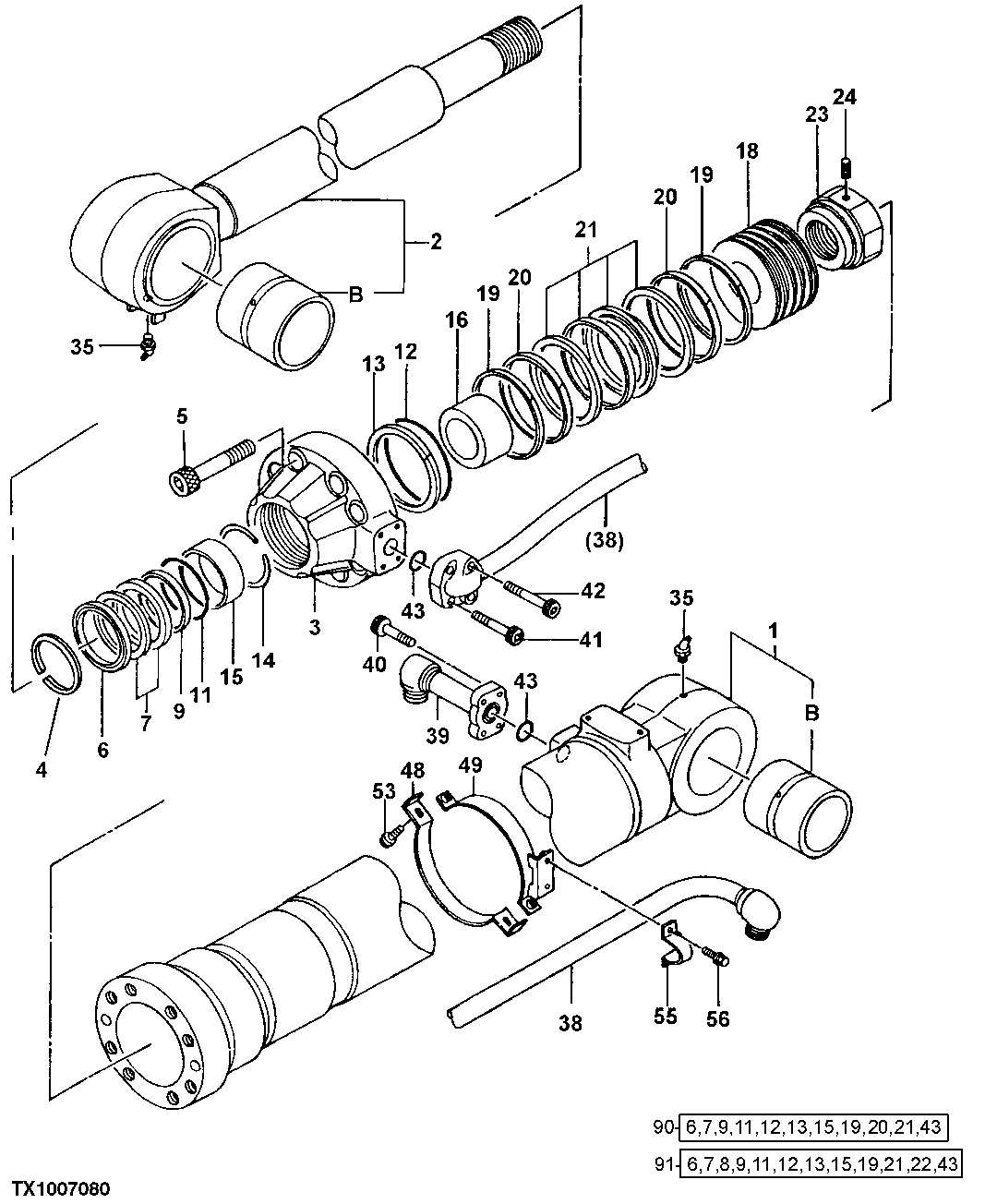

Запчасти John Deere 92DLC 203 - Bucket Cylinder 3360 HYDRAULIC SYSTEM

1

9121228

Tube

(SUB FOR AT205928)

1шт.

1B

3036656

Bushing

(SUB FOR TH111833)

1шт.

2

Piston

(SUB FOR AT205887 ) (SU B 4645911)( 7017178 NLA)

1шт.

4645911

Rod

1шт.

2B

3036657

Bushing

(SUB FOR AT205817)

1шт.

3

1022645

Hydraulic Cylinder Cap

(SUB FOR AT131253 ) (ALSO ORDER AT264274, AT264294 AND 4369508)

1шт.

4

4369508

Ring

RETAINING (CYLINDER SERIAL NUMBER) (SUB FOR AT217983)

1шт.

5

19M8630

Screw

M24 X 80

8шт.

6

AT264407

Seal

(A) (B) (SUB FOR TH11121 5)(CYLINDER SERIAL NUMBER)

1шт.

AT264294

Seal

(SUB FOR AT217969, 434820 1)(CYLINDER SERIAL NUMBER)

1шт.

7

AT264408

Seal

(A) (B) (SUB FOR TH111216)

1шт.

8

AT280433

Back-Up Ring

(B) (NOT ILLUSTRATED)

1шт.

9

4389326

Ring

(A) (B) (SUB FOR TH111217 ) (SUB FOR AT201003 AND AT264409)

1шт.

11

AT264406

O-Ring

(A) (B) 100.965 X 5.334 MM (3. 975" X 0.210") (SUB FOR TH111212)

1шт.

12

TH110052

O-Ring

(A) 134.600 X 5.700 mm (CYLINDER SERIAL NUMBER)

1шт.

AT264274

O-Ring

(B) (SUB FOR AT159582, 4267 138)(CYLINDER SERIAL NUMBER)

1шт.

13

AT264399

Back-Up Ring

(A) (B) (SUB FOR TH11005 5)(CYLINDER SERIAL NUMBER)

1шт.

14

4264982

Snap Ring

(SUB FOR AT131254)

1шт.

15

AT264239

Bushing

(A) (B) (SUB FOR AT131420)

1шт.

16

4194625

Ring

(SUB FOR TH111275)

1шт.

18

3036601

Piston

(SUB FOR AT205816)

1шт.

19

AT264400

Ring

(A) (B) (SUB FOR TH110062, 4185247)

2шт.

20

AT264275

Wear Ring

(A) (SUB FOR AT159585, 4194621)

2шт.

21

AT264402

Ring

(A) (B) (SUB FOR TH110065)

1шт.

22

AT264401

Wear Ring

(B) (SUB FOR TH110063)(NOT ILLUSTRATED)

1шт.

23

3039348

Nut

(SUB FOR TH111191)

1шт.

24

4201806

Set Screw

M12 X 20 (SUB FOR TH110066)

1шт.

35

T116334

Lubrication Fitting

2шт.

38

8036933

Line

(SUB FOR AT205896)

1шт.

39

8036932

Line

(SUB FOR AT205895)

1шт.

40

19M8448

Screw

M12 X 35

4шт.

41

19M8341

Screw

M12 X 45

2шт.

42

19M8444

Screw

M12 X 60

2шт.

43

AT264324

O-Ring

(A) (B) (SUB FOR TH100044)

2шт.

48

3043349

Clamp

1шт.

49

8074320

Clamp

(SUB FOR TH111988)

1шт.

53

12M7066

Lock Washer

10 mm

2шт.

19M7550

Cap Screw

M10 X 35

2шт.

55

4174241

Clamp

(SUB FOR TH110059)

1шт.

56

12M7066

Lock Washer

10 mm

2шт.

19M7402

Cap Screw

M10 X 25

2шт.

60

Seal

(ROD AND HEAD END) (NOT ILLUSTRATED OR INCLUDED IN CYLINDER ASSEMBLY - FOR DETA IL SEE BOOM AND ARM HYDRAULIC OIL LINES)

4шт.

70

AT176018

Arm

WHOLEGOODS (INCLUDES STANDARD ARM, BUCK ET CYLINDER AND LINKAGE) (NOT ILLUSTRATE D) (CONTAINS ALL ITEMS ON THIS PAGE - AD DITIONAL COMPONENTS LISTED ON OTHER PAGE S)

1шт.

AT176023

Arm

WHOLEGOODS (INCLUDES LONG ARM, BUCKET CYLINDER AND LINKAGE) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADD ITIONAL COMPONENTS LISTED ON OTHER PAGE S)

1шт.

90

AT327708

Seal Kit

(INCLUDES ALL (A) PARTS) (SUB FOR AT196474, THIS APPLICATION)

1шт.

91

AT264430

Seal Kit

INCLUDES ALL (B) PARTS

1шт.
