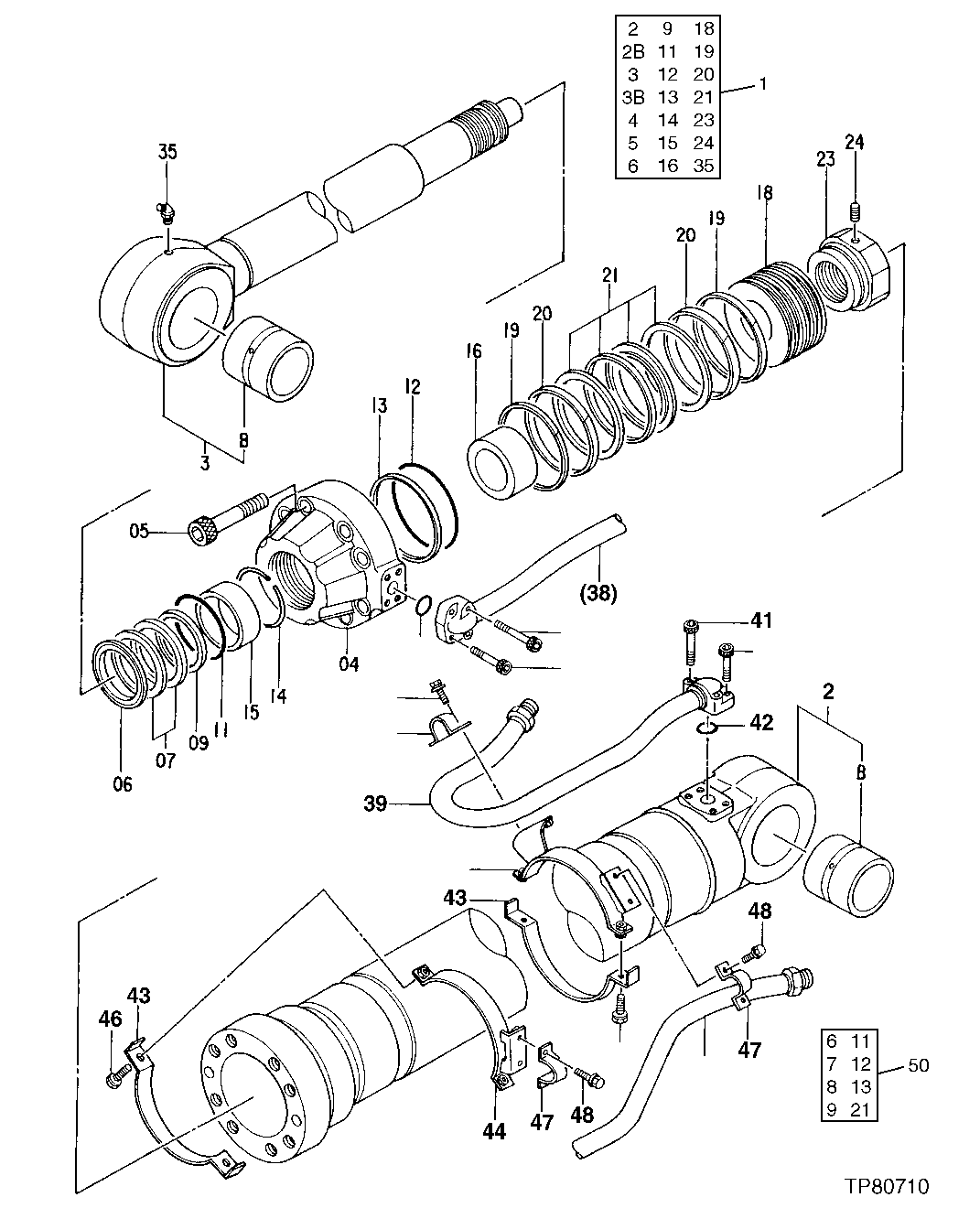

Запчасти John Deere 92DLC 202 - Arm Cylinder 3360 HYDRAULIC SYSTEM

1

9264711J

Hydraulic Cylinder

(ASSY) (SUB FOR AT205924, 9111164)

1шт.

Hydraulic Cylinder

REMAN (ASSY) ( 9111164EX OR AT264196 NLA)

1шт.

2

7017423

Hydraulic Cylinder Barrel

(SUB FOR TH111857)

1шт.

2B

3036656

Bushing

(SUB FOR TH111833)

1шт.

3

7027816

Rod

(SUB FOR AT206086)

1шт.

3B

3036656

Bushing

(SUB FOR TH111833)

1шт.

4

1015996

Hydraulic Cylinder Cap

(SUB FOR AT130833)

1шт.

5

19M8452

Screw

M24 X 90

8шт.

6

4171483

Seal

(SUB FOR TH111837)

1шт.

7

AT333702

Seal

(ALSO ORDER AT280445 ) (SUB FO R TH111838, 4171485 OR 4411660)

1шт.

9

AT264414

Seal

(SUB FOR TH111839, 4171487 OR 4411655)

1шт.

11

4169532

O-Ring

(SUB FOR TH111841)

1шт.

12

TH102822

O-Ring

134.600 X 5.700 mm

1шт.

13

4113178

Back-Up Ring

(SUB FOR TH111842)

1шт.

14

4268206

Snap Ring

(SUB FOR AT130834)

1шт.

15

4290509

Bushing

(SUB FOR AT159652)

1шт.

16

4194627

Ring

(SUB FOR TH111843)

1шт.

18

3036602

Piston

(SUB FOR TH111844)

1шт.

19

AT264415

Ring

(SUB FOR TH111845, 4171490)

2шт.

20

AT264416

Wear Ring

(SUB FOR TH111846, 4194622)

2шт.

21

AT264417

Ring

(SUB FOR TH111847, 4386916)

1шт.

23

3039349

Nut

(SUB FOR TH111848)

1шт.

24

4201806

Set Screw

M12 X 20 (SUB FOR TH110066)

1шт.

35

T116334

Lubrication Fitting

1шт.

38

8036931

Oil Line

(SUB FOR TH111849)

1шт.

39

8036930

Oil Line

(SUB FOR TH111850)

1шт.

40

19M8341

Screw

M12 X 45

4шт.

41

19M8444

Screw

M12 X 60

4шт.

42

AT264324

O-Ring

(SUB FOR TH100044)

2шт.

43

3043350

Clamp

(SUB FOR AT205826)

2шт.

44

8043040

Clamp

(SUB FOR AT205913)

1шт.

45

8044209

Clamp

(SUB FOR AT205914)

1шт.

46

12M7066

Lock Washer

10 mm

4шт.

19M7550

Cap Screw

M10 X 35

4шт.

47

4174241

Clamp

(SUB FOR TH110059)

3шт.

48

12M7066

Lock Washer

10 mm

6шт.

19M7402

Cap Screw

M10 X 25

6шт.

50

9181752

Seal Kit

(ALSO ORDER TH111845 AND TH 111846 ) (SUB FOR TH111854)

1шт.
