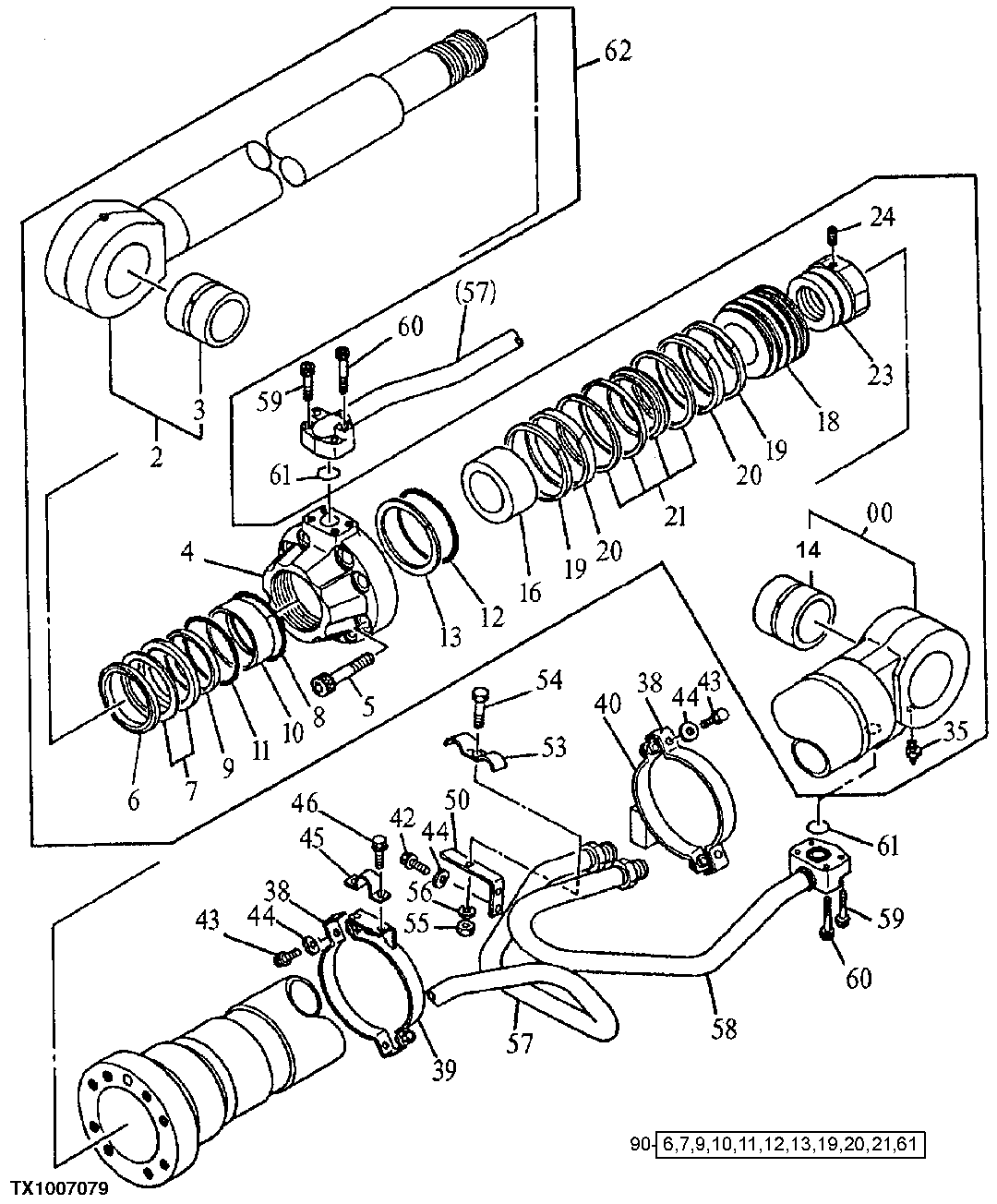

Запчасти John Deere 92DLC 201 - Left Boom Cylinder 3360 HYDRAULIC SYSTEM

0

9121226

Tube

(SUB FOR AT205926)

1шт.

2

7017176

Rod

(SUB FOR AT206101)

1шт.

3

3039847

Bushing

(SUB FOR AT206100)

1шт.

4

1016386

Cylinder Head

(SUB FOR AT205814)

1шт.

5

19M8630

Screw

M24 X 80

8шт.

6

AT264407

Seal

(SUB FOR TH111215)

1шт.

7

AT264408

Seal

(SUB FOR TH111216)

1шт.

8

4264982

Snap Ring

(SUB FOR AT131254)

1шт.

9

4389326

Ring

(SUB FOR TH111217 ) (SUB FOR AT201003 AND AT264409)

1шт.

10

AT264239

Bushing

(SUB FOR AT131420)

1шт.

11

AT264406

O-Ring

(SUB FOR TH111212)

1шт.

12

TH110052

O-Ring

1шт.

13

AT264399

Back-Up Ring

(SUB FOR TH110055)

1шт.

14

3039847

Bushing

(SUB FOR AT206100)

1шт.

16

4194625

Ring

(SUB FOR TH111275)

1шт.

18

3036601

Piston

(SUB FOR AT205816)

1шт.

19

AT264400

Ring

(SUB FOR TH110062, 4185247)

2шт.

20

AT264275

Wear Ring

(SUB FOR AT159585, 4194621)

2шт.

21

AT264402

Ring

(SUB FOR TH110065)

1шт.

22

AT264401

Wear Ring

(SUB FOR TH110063)(NOT ILLUSTRATED)

1шт.

23

3039348

Nut

(SUB FOR TH111191)

1шт.

24

4201806

Set Screw

(SUB FOR TH110066)

1шт.

35

TH100074

Lubrication Fitting

1шт.

38

3043349

Clamp

(SUB FOR TH111883)

2шт.

39

8074320

Clamp

(SUB FOR TH111988)

1шт.

40

8043038

Clamp

(SUB FOR AT206098)

1шт.

42

19M7662

Cap Screw

M10 X 30

2шт.

43

19M7550

Cap Screw

M10 X 35

4шт.

44

12M7066

Lock Washer

10 mm

6шт.

45

4174241

Clamp

(SUB FOR TH110059)

1шт.

46

19M7402

Cap Screw

M10 X 25

2шт.

50

4195487

Support

(SUB FOR AT205833)

1шт.

53

4229234

Clamp

(SUB FOR TH111990)

1шт.

54

19M8348

Cap Screw

M12 X 65

1шт.

55

14M7275

Nut

M12

1шт.

56

12H301

Lock Washer

1/2"

1шт.

57

8036929

Line

(SUB FOR AT205894)

1шт.

58

8039639

Line

(SUB FOR AT205903)

1шт.

59

19M8341

Screw

M12 X 45

4шт.

60

19M8444

Screw

M12 X 60

4шт.

61

AT264324

O-Ring

(SUB FOR TH100044)

2шт.

62

9264710J

Hydraulic Cylinder

(SUB FOR AT205923)(INCL UDES KEYS 0 THROUGH 35)

1шт.

Hydraulic Cylinder

REMAN (INCLUDES KEYS 0 THROUGH 35) ( 9111163EX OR AT264216 NLA)

1шт.

63

Seal

(ROD AND HEAD END) (NOT ILLUSTRATED OR INCLUDED IN CYLINDER ASSEMBLY - FOR DETA IL SEE BOOM AND ARM HYDRAULIC OIL LINES)

4шт.

90

AT327708

Seal Kit

(SUB FOR TH111625, OR A T196474THIS APPLICATION)

1шт.
