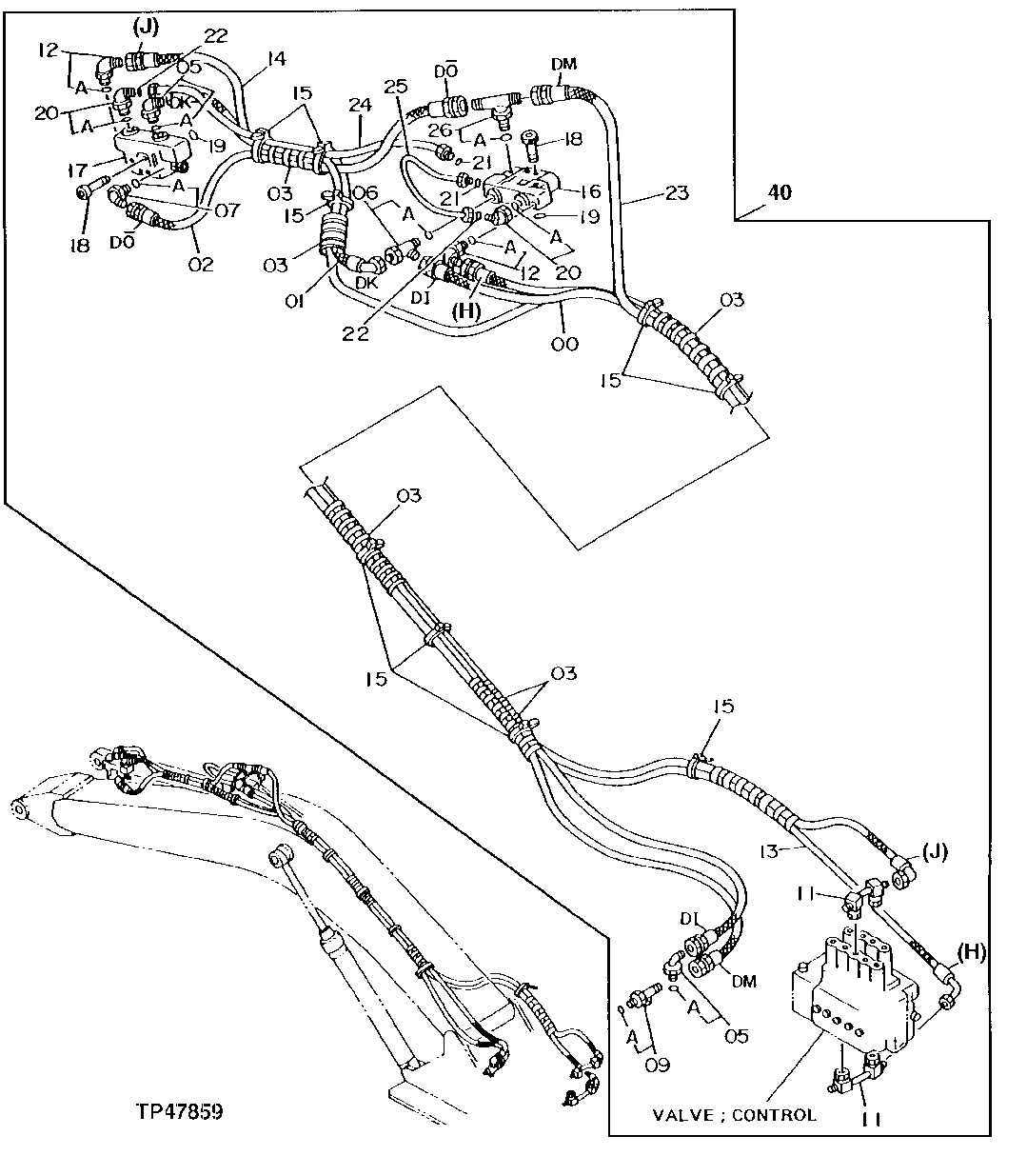

Запчасти John Deere 92DLC 196 - LOAD LOWERING VALVE ARM PIPINGS 3360 HYDRAULIC SYSTEM

0

AT205870

Hydraulic Hose

1шт.

1

AT205871

Hydraulic Hose

1шт.

2

AT205886

Hydraulic Hose

1шт.

3

Hydraulic Hose

(CUT TO LENGTH FROM XHG-075 BULK MATERIAL)

7шт.

XHG-075

Hose Guard

1шт.

5

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

2шт.

5A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

6

4205363

Tee Fitting

(SUB FOR AT126362)

1шт.

6A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

7

4154672

Elbow Fitting

(SUB FOR TH101008)

1шт.

7A

4506418

O-Ring

17.800 X 2.400 mm (SUB FOR U46489)

1шт.

9

4219347

Tee Fitting

(SUB FOR AT205859)

1шт.

9A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

11

8039468

Line

(SUB FOR AT127914)

2шт.

12

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

2шт.

12A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

13

AT205873

Hydraulic Hose

1шт.

14

AT205872

Hydraulic Hose

1шт.

15

H77698

Tie Band

10шт.

16

4224361

Flow Control Hyd. Valve

(SUB FOR AT205868)

1шт.

17

4223107

Flow Control Hyd. Valve

(SUB FOR AT205865)

1шт.

18

19M8547

Screw

M12 X 90 (SUB FOR AT127258 OR M341290)

8шт.

19

AT264324

O-Ring

(SUB FOR TH100044)

2шт.

20

Elbow Fitting

( AT158880 NOT AVAILABLE FOR SERVICE)

2шт.

20A

TH101926

O-Ring

28.700 X 3.500 mm

1шт.

21

T76938

O-Ring

23.520 X 1.780 mm

2шт.

22

T78612

O-Ring

2шт.

23

AT205869

Hydraulic Hose

1шт.

24

8042281

Line

(SUB FOR AT205908)

1шт.

25

8042282

Line

(SUB FOR AT122432)

1шт.

26

4221224

Tee Fitting

(SUB FOR AT318018 AND AT154156)

1шт.

26A

4506418

O-Ring

17.800 X 2.400 mm (SUB FOR U46489)

1шт.

40

AT173921

Kit

(HOSE RUPTURE - LOAD LOWERING VALVE ARM) (ASSEMBLY DOES NOT CONTAIN CONTROL VALVE)

1шт.
