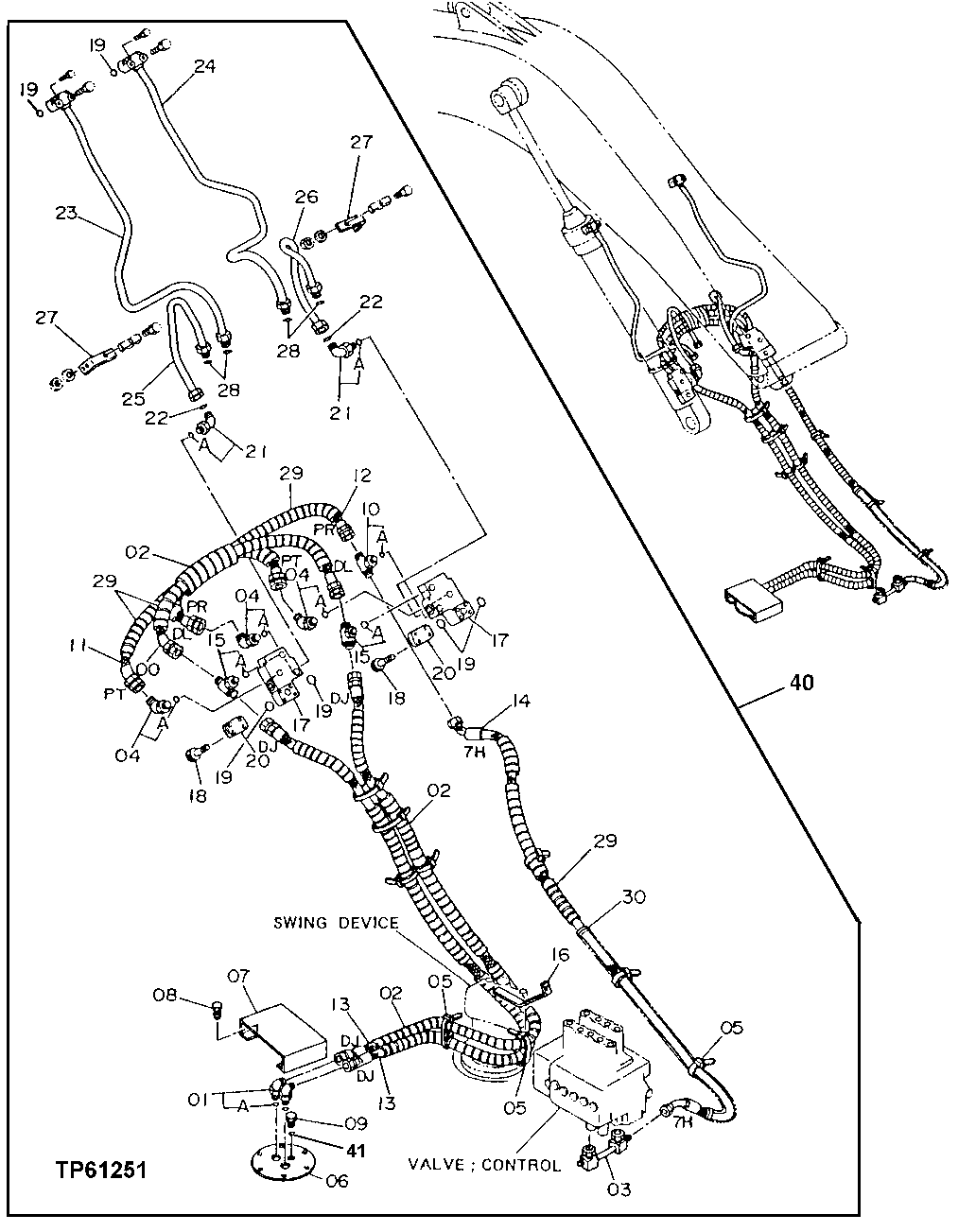

Запчасти John Deere 92DLC 195 - LOAD LOWERING VALVE BOOM PIPINGS 3360 HYDRAULIC SYSTEM

0

AT175064

Hydraulic Hose

1шт.

1

4190246

Elbow Fitting

SUB FOR TH106154

2шт.

1A

4506418

O-Ring

17.800 X 2.400 mm SUB FOR U46489

1шт.

2

Hose Guard

MAKE FROM XHG-075, BULK MATERIAL , CUT TO LENGTH SUB FOR AT138222

19шт.

3

8039468

Line

SUB FOR AT127914

1шт.

4

4154670

Elbow Fitting

SUB FOR TH100951

3шт.

4A

M800650

Packing

1шт.

5

H77698

Tie Band

9шт.

6

3041809

Cover

SUB FOR AT205825

1шт.

7

4222251

Cover

SUB FOR AT205864

1шт.

8

19M7402

Cap Screw

M10 X 25

4шт.

9

15M7036

Drain Plug

SUB FOR 4092534, 4217653, TH1092 85 OR 0309805, ALSO ORDER CH11570

1шт.

10

4226388

Tee Fitting

SUB FOR AT205878

1шт.

10A

M800650

Packing

1шт.

11

AT205877

Hydraulic Hose

1шт.

12

AT205880

Hydraulic Hose

1шт.

13

AT205879

Hydraulic Hose

2шт.

14

AT205881

Hydraulic Hose

1шт.

15

4221272

Tee Fitting

SUB FOR AT205862

2шт.

15A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

16

4224967

Bracket

SUB FOR AT205875

1шт.

17

4201402

Flow Control Hyd. Valve

SUB FOR AT205835

2шт.

18

4086072

Screw

SUB FOR AT205828

8шт.

19

AT264324

O-Ring

SUB FOR TH100044

6шт.

20

3039864

Cover

SUB FOR AT205822

2шт.

21

4222074

Elbow Fitting

SUB FOR AT205863

2шт.

21A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.

22

T78612

O-Ring

2шт.

23

8042404

Line

SUB FOR AT205911

1шт.

24

8042405

Line

SUB FOR AT205912)

1шт.

25

8042402

Line

SUB FOR AT205909

1шт.

26

8042403

Line

SUB FOR AT205910

1шт.

27

4225023

Support

SUB FOR AT205876

2шт.

28

T76938

O-Ring

23.520 X 1.780 mm

4шт.

29

4327315

Hose Guard

4327293 NO LONGER AVAILABLE SUB FOR TH106022 OR 4133527

8шт.

30

4233030

Tube

SUB FOR AT205882

1шт.

40

AT173920

Kit

HOSE RUPTURE - LOAD LOWERING VALVE BOOM PIPI NGS, ASSEMBLY DOES NOT CONTAIN CONTROL VALVE

1шт.

41

CH11570

O-Ring

13.800 X 2.400 mm

1шт.
