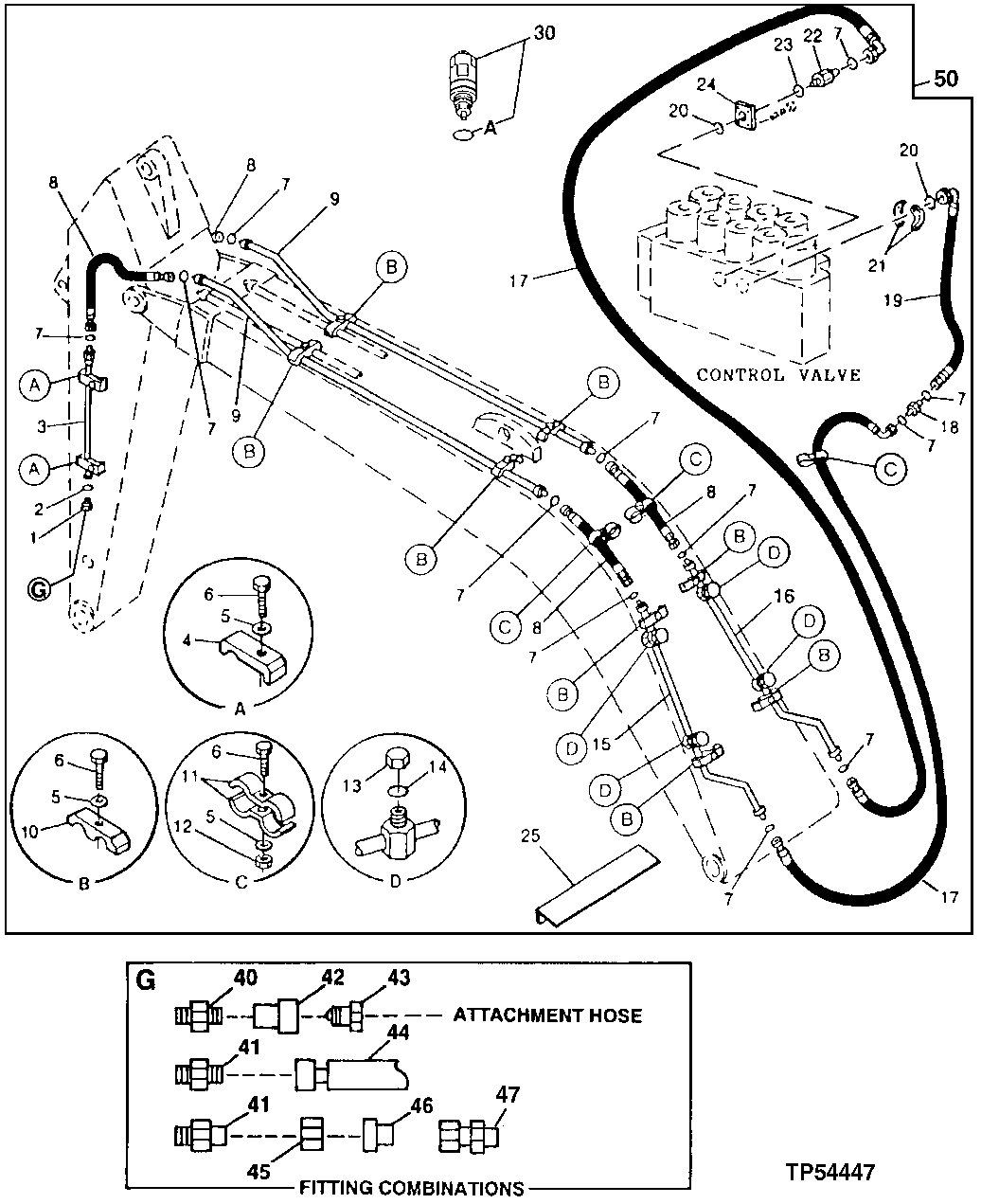

Запчасти John Deere 92DLC 194 - BOOM AND ARM AUXILIARY HYDRAULIC LINES 3360 HYDRAULIC SYSTEM

1

T78612

O-Ring

2шт.

2

T78612

O-Ring

2шт.

3

AT175001

Oil Line

2шт.

4

4190127

Clamp

(SUB FOR TH108313)

4шт.

5

12H301

Lock Washer

16шт.

6

19M7753

Cap Screw

16шт.

7

T76938

O-Ring

15шт.

8

AT175002

Hydraulic Hose

4шт.

9

AT159786

Oil Line

2шт.

10

4153488

Clamp

(SUB FOR TH103780)(LEFT SIDE)

4шт.

4189860

Clamp

(SUB FOR TH108314)(RIGHT SIDE)

4шт.

11

4202103

Clamp

(SUB FOR TH108302)

6шт.

12

14M7275

Nut

4шт.

13

38H1418

Fitting

4шт.

14

T77858

O-Ring

4шт.

15

AT174241

Oil Line

1шт.

16

AT174982

Oil Line

1шт.

17

AT175031

Hydraulic Hose

2шт.

18

38H1281

Union Fitting

1шт.

19

AT175003

Hydraulic Hose

1шт.

20

T59014

O-Ring

2шт.

21

R29424

Flange Fitting

2шт.

22

38H1179

Adapter Fitting

1шт.

23

U12547

O-Ring

1шт.

24

T158221

Flange Fitting

1шт.

25

Shield

( T158271 NOT AVAILABLE FOR SERVICE)

1шт.

30

4228353

Pressure Relief Valve

(SUB FOR TH111705)(AUXILIARY)

2шт.

30A

U12547

O-Ring

1шт.

40

38H1196

Adapter Fitting

(-20) 1 11/16 ORFS X ( -16) 1 5/16 SAE O-RING

2шт.

4207425

Adapter Fitting

(SUB FOR TH111740)(-20) 1 1 1/16 ORFS X (-16) 1 IN BSPP

2шт.

38H1165

Adapter Fitting

(-20) 1 11/16 ORFS X (-20) 1 5/8 SAE O-RING

2шт.

4267610

Adapter Fitting

(SUB FOR AT137960)(-20) 1 11/ 16 ORFS X (-20) 1 1/4 IN BSPP

2шт.

41

38H1282

Union Fitting

(-20) 1 11/16 ORFS X (-20) 1 11/16 ORFS

2шт.

42

AT117364

Hydr. Quick Coupler Socket

FEMALE QUICK COUPLER ( -12) 1 1/16 SAE O-RING

2шт.

AT120499

Coupling

FEMALE QUICK COUPLER ( -16) 1 5/16 SAE O-RING

2шт.

43

AT117365

Hydr. Quick Coupler Plug

MALE QUICK COUPLER (-12) 1 1/16 SAE O-RING

2шт.

AT120498

Coupling

MALE QUICK COUPLER (-16) 1 5/16 SAE O-RING

2шт.

44

X1JS78-20-16

Hose Fitting

HOSE END - STRAIGHT - 1 1/4 X 1 IN

2шт.

X1J978-20-16

Elbow Fitting

HOSE END - 90 DEG 1 1/4 X 1 IN

2шт.

45

X20BL-S

Tube Nut

ORFS (-20) 1 11/16

2шт.

46

38H1477

Reducer

ORFS (-20) TO (-12)

2шт.

47

38H1070

Fitting

(1 3/16 ORFS X 1 1/16 SAE O-RING)

2шт.

50

AT174240

Kit

(AUXILIARY HYDRAULIC LINES) (ALSO ORDE R TH111922 POPPET AND TH111923 SPRING)

1шт.
