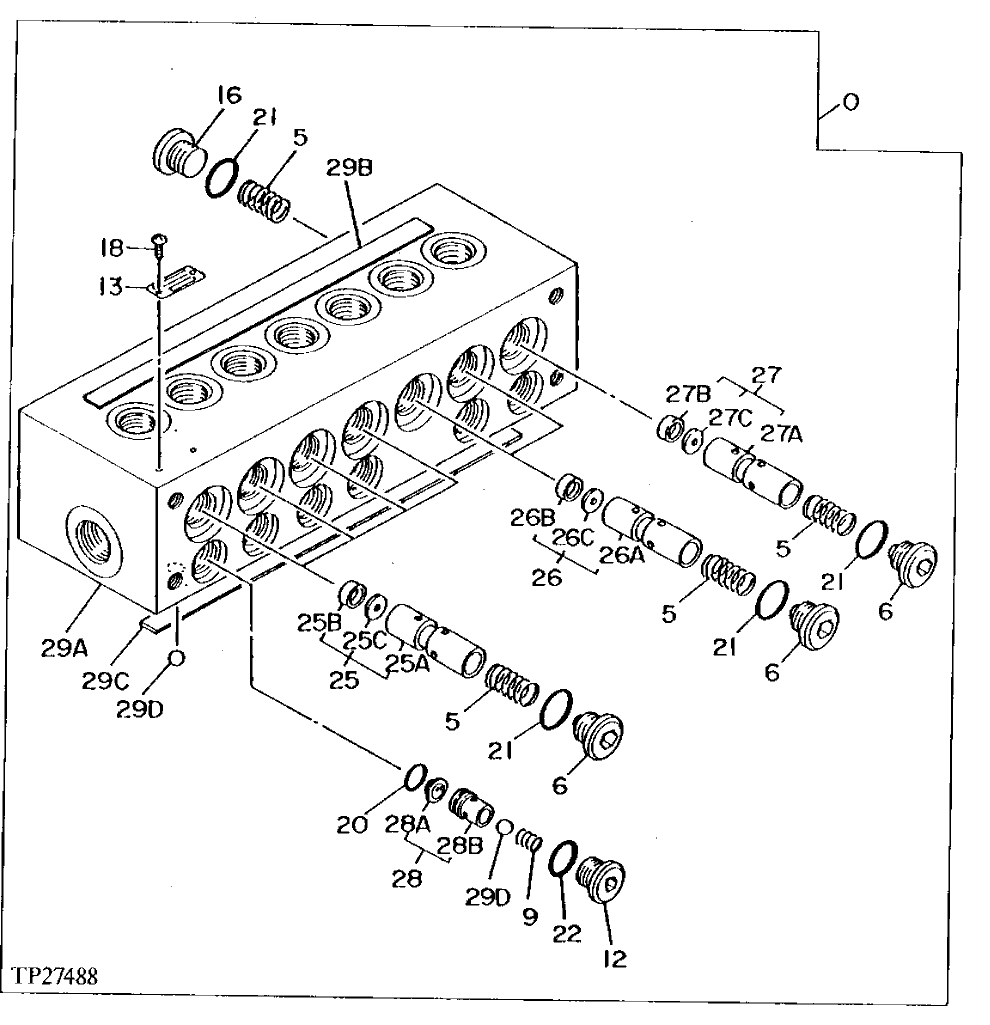

Запчасти John Deere 92DLC 188 - SHOCKLESS VALVE 3360 HYDRAULIC SYSTEM

0

4188552

Flow Control Hyd. Valve

(SUB FOR TH109593)(FLOW REGULATOR)

1шт.

5

0309801

Spring

(SUB FOR TH109280)

14шт.

6

0309802

Pipe Plug

(SUB FOR TH109281)

7шт.

9

0309803

Spring

(SUB FOR TH109282)

6шт.

12

AT49216

Fitting Plug

(CONTAINS O-RING)

6шт.

T70177

O-Ring

11.887 X 1.981 mm (NOT ILLUSTRATED)

1шт.

13

Identification Plate

(NOT AVAILABLE FOR SERVICE)

1шт.

16

15M7036

Drain Plug

(SUB FOR TH109285 OR 0309805)

7шт.

18

0208717

Screw

(SUB FOR TH102697)

2шт.

20

CH11569

Packing

6шт.

21

CH11570

O-Ring

14шт.

22

R26448

O-Ring

11.887 X 1.981 mm

6шт.

25

0309807

Plunger

(SUB FOR TH109287)

4шт.

25A

Plunger

(SUB TH109287)

1шт.

25B

Ring

(SUB TH109287)

1шт.

25C

Orifice

(SUB TH109287)

1шт.

26

4212780

Plunger

(SUB FOR TH111865)

2шт.

26A

Plunger

(SUB TH111865)

1шт.

26B

Ring

(SUB TH111865)

1шт.

26C

Orifice

(SUB TH111865)

1шт.

27

4212781

Plunger

(SUB FOR TH111866)

1шт.

27A

Plunger

(SUB TH111866)

1шт.

27B

Ring

(SUB TH111866)

1шт.

27C

Orifice

(SUB TH111866)

1шт.

28

0309810

Filter

(SUB FOR TH109290)

6шт.

28A

Filter

(SUB TH109290)

1шт.

28B

Sleeve

(SUB TH109290)

1шт.

29A

Housing

(SUB TH109593)

1шт.

29B

Seal

( TH109292 NO LONGER AVAILABLE)

1шт.

29C

Seal

( TH109293 NO LONGER AVAILABLE)

1шт.

29D

L38718

Ball

6 mm

12шт.
