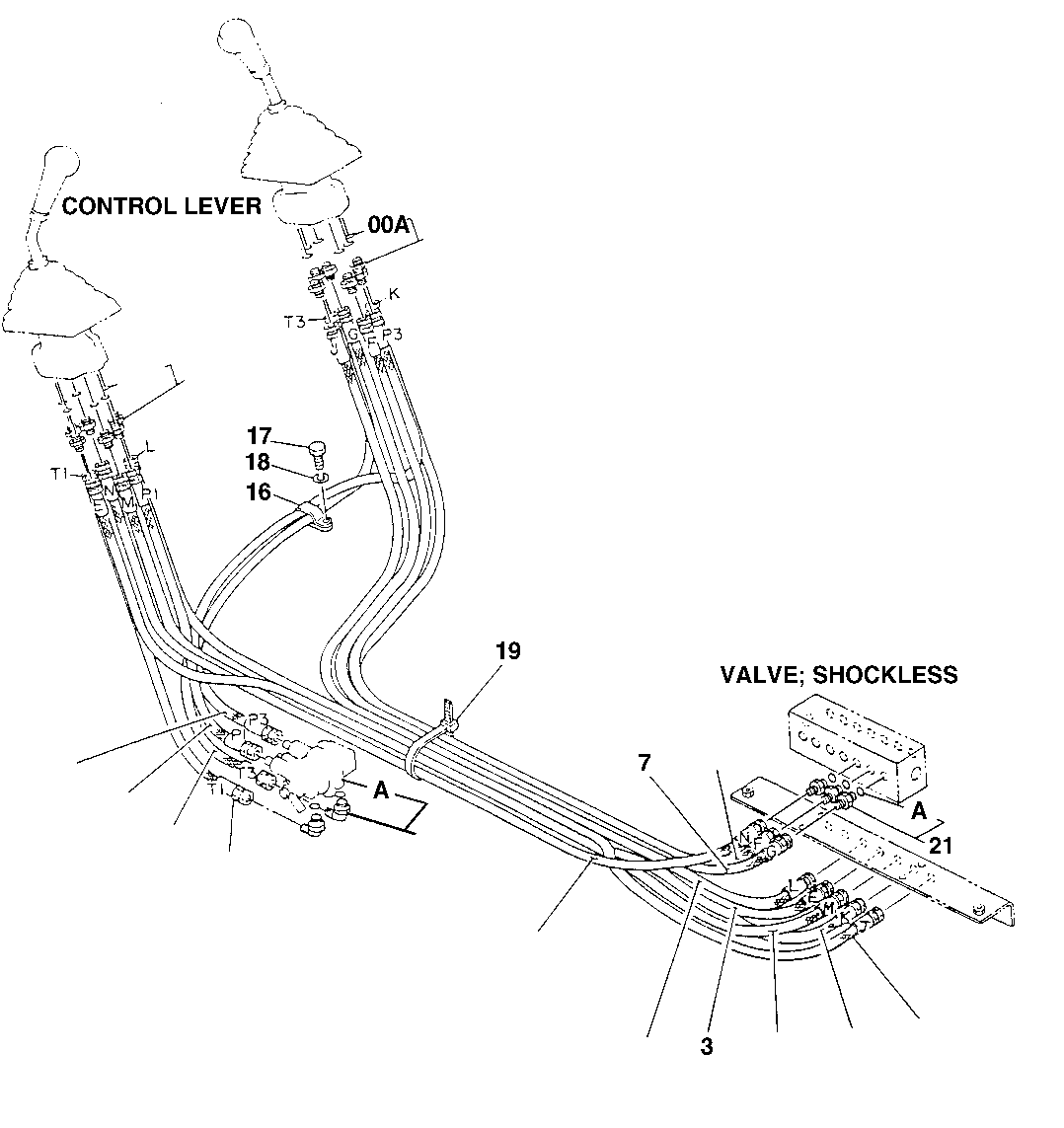

Запчасти John Deere 92DLC 185 - PILOT PLUMBING 3360 HYDRAULIC SYSTEM

0

4200467

Adapter Fitting

(SUB FOR TH108417)

12шт.

0A

M800650

Packing

1шт.

1

4203024

Hydraulic Hose

(SUB FOR TH108468)(L)

1шт.

2

4203024

Hydraulic Hose

(SUB FOR TH108468)(N)

1шт.

3

AH99310

Hydraulic Hose

(E)

1шт.

4

AH99310

Hydraulic Hose

(M)

1шт.

6

AE42000

Hydraulic Hose

(K)

1шт.

7

4203024

Hydraulic Hose

(SUB FOR TH108468)(G)

1шт.

8

4203024

Hydraulic Hose

(SUB FOR TH108468)(J)

1шт.

9

4203024

Hydraulic Hose

(SUB FOR TH108468)(F)

1шт.

11

AT48428

Hydraulic Hose

(P1)

1шт.

12

AH108250

Hose

(T1)

1шт.

13

AT46299

Hydraulic Hose

(P3)

1шт.

14

AT46299

Hydraulic Hose

(T3)

1шт.

16

M45242

Clip

(SUB FOR TH108321 ) (SUB FOR 4190292)

1шт.

17

19M8324

Cap Screw

1шт.

18

12M7066

Lock Washer

1шт.

19

H77698

Tie Band

1шт.

20

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

2шт.

20A

CH11570

O-Ring

1шт.

21

4200466

Adapter Fitting

(SUB FOR TH108320)

3шт.

21A

CH11570

O-Ring

1шт.
