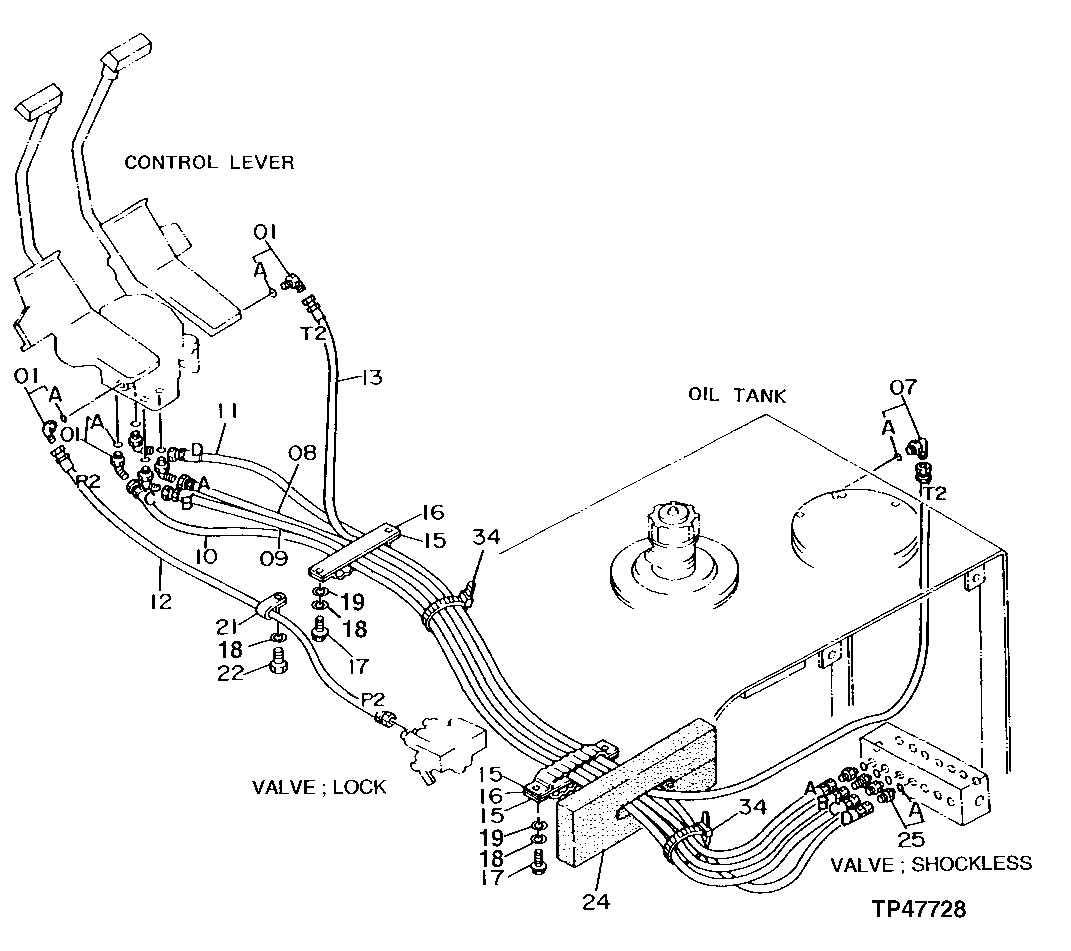

Запчасти John Deere 92DLC 184 - PILOT PLUMBING 3360 HYDRAULIC SYSTEM

1

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR TH101930)

6шт.

1A

M800650

Packing

1шт.

7

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

7A

CH11570

O-Ring

1шт.

8

4203024

Hydraulic Hose

(SUB FOR TH108468)(A)

1шт.

9

4203024

Hydraulic Hose

(SUB FOR TH108468)(B)

1шт.

10

AE42000

Hydraulic Hose

(C)

1шт.

11

AE42000

Hydraulic Hose

(D)

1шт.

12

AT57860

Hydraulic Hose

(P2)

1шт.

13

AH89075

Hydraulic Hose

(T2)

1шт.

15

9727639

Hose Clamp

(SUB FOR TH108456)

3шт.

16

9727637

Plate

(SUB FOR TH108457)

2шт.

17

19M7550

Cap Screw

M10 X 35

4шт.

18

12M7066

Lock Washer

10 mm

5шт.

19

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

21

4190275

Clamp

(SUB FOR TH108598)

1шт.

22

19M8324

Cap Screw

M10 X 16

1шт.

24

4204324

Isolator

(SUB FOR TH109620)

1шт.

25

4200466

Adapter Fitting

(SUB FOR TH108320)

4шт.

25A

CH11570

O-Ring

1шт.

34

H77698

Tie Band

2шт.
