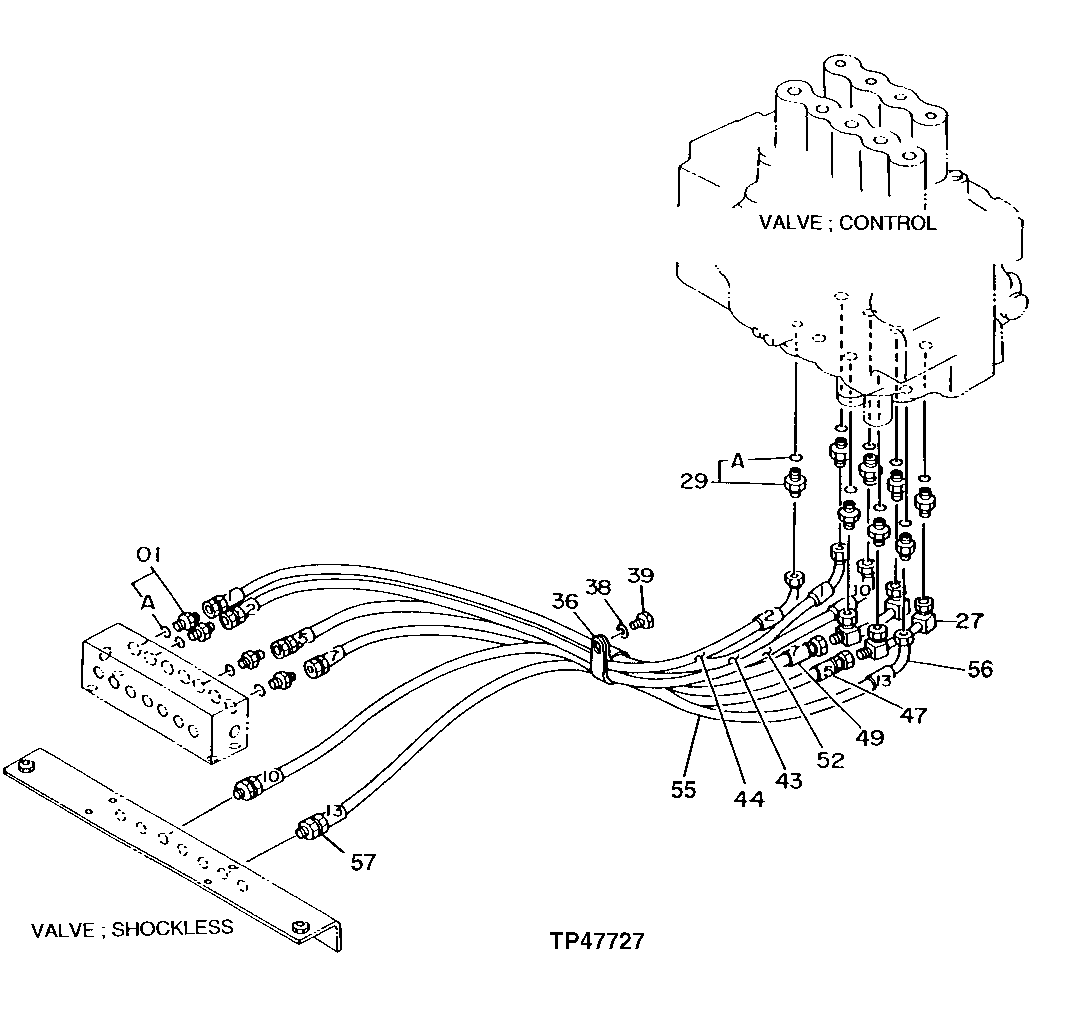

Запчасти John Deere 92DLC 182 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

1

4200466

Adapter Fitting

(SUB FOR TH108320)

4шт.

1A

CH11570

O-Ring

1шт.

27

8038370

Line

(SUB FOR TH109597)

2шт.

29

4200466

Adapter Fitting

(SUB FOR TH108320)

8шт.

29A

CH11570

O-Ring

1шт.

36

N198631

Clamp

(SUB FOR TH109598 OR 4190265)

1шт.

38

12M7066

Lock Washer

1шт.

39

19M3142

Cap Screw

1шт.

43

AT69452

Hydraulic Hose

1шт.

44

AT69452

Hydraulic Hose

1шт.

47

AT48717

Hydraulic Hose

1шт.

49

AT48434

Hydraulic Hose

1шт.

52

AT46299

Hydraulic Hose

1шт.

55

AT46299

Hydraulic Hose

1шт.

56

AE24616

Elbow Fitting

1шт.

57

R27238

Fitting

1шт.

14H832

Nut

1шт.
