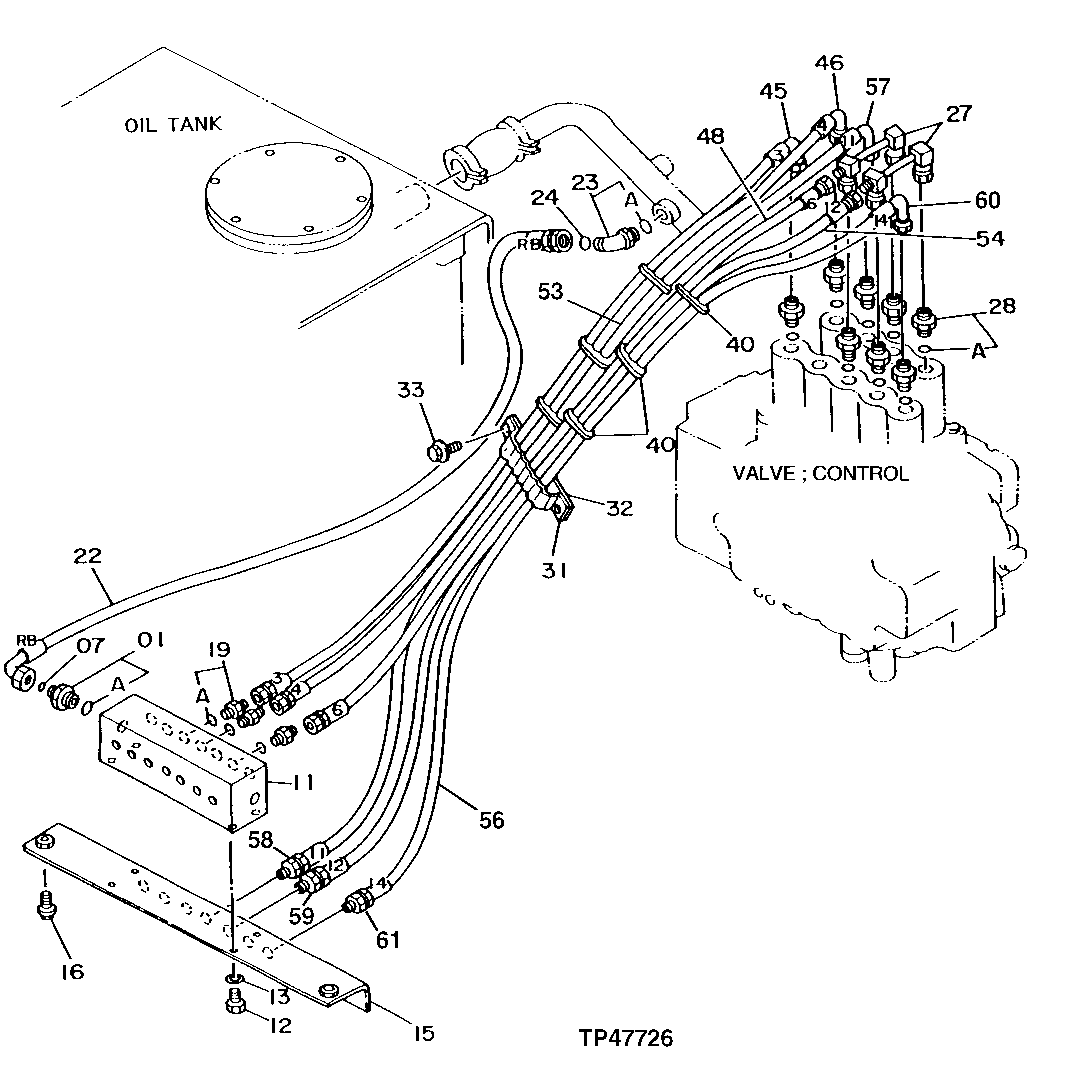

Запчасти John Deere 92DLC 181 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

1

4189602

Fitting

(SUB FOR TH108350)

1шт.

1A

4506418

O-Ring

(SUB FOR U46489)

1шт.

7

T77857

O-Ring

1шт.

11

4188552

Flow Control Hyd. Valve

(SUB FOR TH109593)

1шт.

12

19M7938

Cap Screw

4шт.

13

12M7066

Lock Washer

4шт.

15

8035594

Bracket

(SUB FOR TH109594)

1шт.

16

19M7662

Cap Screw

2шт.

24M7028

Washer

2шт.

12M7066

Lock Washer

2шт.

19

4200466

Adapter Fitting

(SUB FOR TH108320)

3шт.

19A

CH11570

O-Ring

1шт.

22

AT135719

Hydraulic Hose

(SUB FOR AT100651)

1шт.

23

A853344

Elbow Fitting

(SUB FOR TH108401, 4200580)

1шт.

23A

4506418

O-Ring

(SUB FOR U46489)

1шт.

24

T77857

O-Ring

1шт.

27

8038370

Line

(SUB FOR TH109597)

2шт.

28

4202422

Adapter Fitting

(SUB FOR TH108440)

8шт.

28A

CH11570

O-Ring

1шт.

31

9727639

Hose Clamp

(SUB FOR TH108456)

1шт.

32

9727637

Plate

(SUB FOR TH108457)

1шт.

33

19M7662

Cap Screw

2шт.

24M7028

Washer

2шт.

12M7066

Lock Washer

2шт.

40

4203210

Clamp

(SUB FOR TH109599)

6шт.

45

AT72803

Hydraulic Hose

1шт.

46

AT72803

Hydraulic Hose

1шт.

48

AR90081

Hydraulic Hose

1шт.

53

AT48422

Hydraulic Hose

1шт.

54

AT46297

Hydraulic Hose

1шт.

56

AT46297

Hydraulic Hose

1шт.

57

AE24616

Elbow Fitting

1шт.

58

R27238

Fitting

1шт.

14H832

Nut

1шт.

59

R27238

Fitting

1шт.

14H832

Nut

1шт.

60

AE24616

Elbow Fitting

1шт.

61

R27238

Fitting

1шт.

14H832

Nut

1шт.
