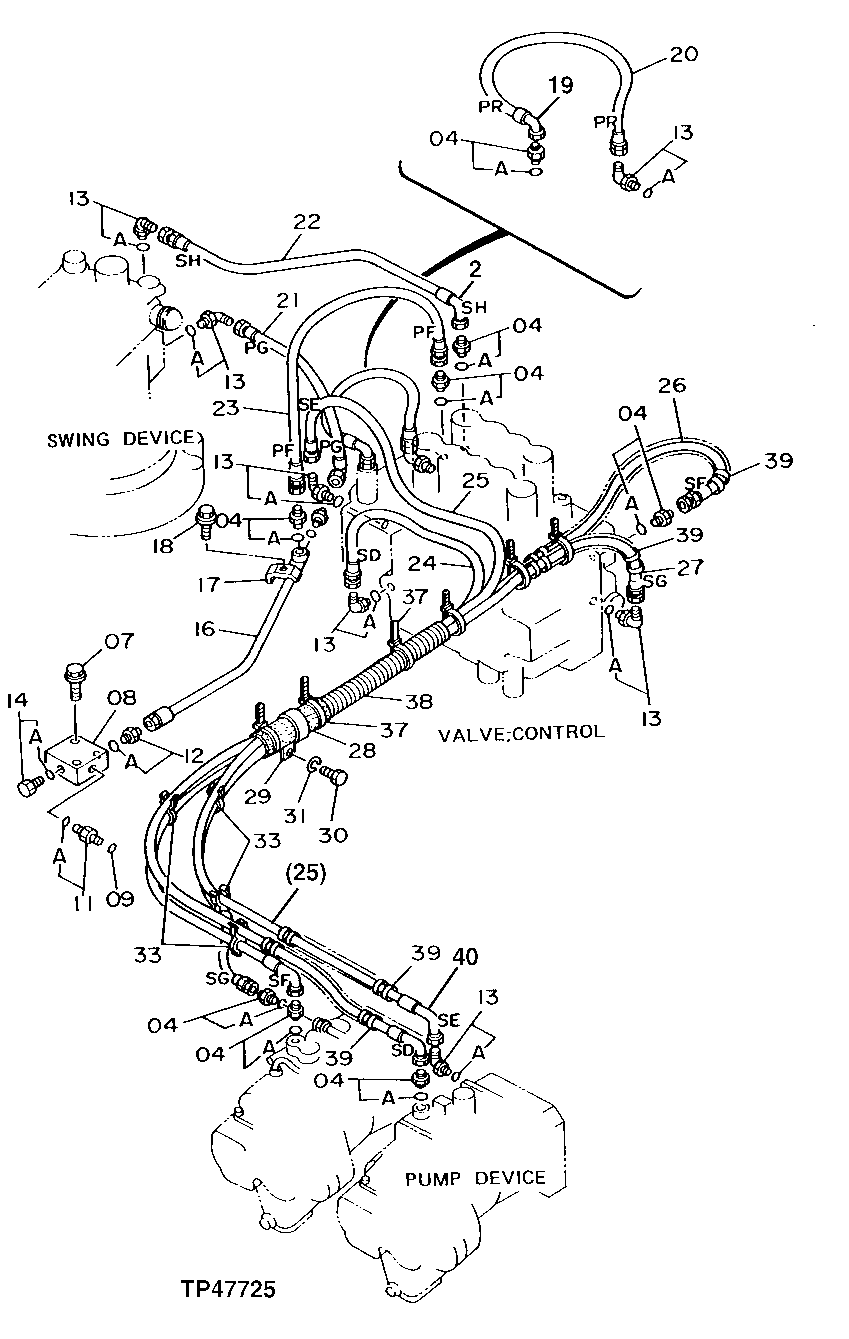

Запчасти John Deere 92DLC 180 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

2

AH89069

Elbow Fitting

2шт.

4

4200465

Adapter Fitting

(SUB FOR TH108328)

9шт.

4A

M800650

Packing

1шт.

7

12M7066

Lock Washer

2шт.

24M7028

Washer

2шт.

Cap Screw

(M10 X 60) ( 19M5536 NO LONGER AVAILABLE)

2шт.

8

9072360

Check Valve

(SUB FOR TH108415)

1шт.

9

T77857

O-Ring

1шт.

11

4189602

Fitting

(SUB FOR TH108350)

1шт.

11A

4506418

O-Ring

(SUB FOR U46489)

1шт.

12

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

12A

CH11570

O-Ring

1шт.

13

4154670

Elbow Fitting

(SUB FOR TH100951)

7шт.

13A

M800650

Packing

1шт.

14

AT318013

Drain Plug

(SUB FOR 4093624 ) (SUB FOR TH102536)

1шт.

14A

M800650

Packing

1шт.

16

9727732

Line

(SUB FOR TH109579)

1шт.

17

4190124

Clamp

(SUB FOR TH108727)

1шт.

18

12H301

Lock Washer

1шт.

19M7496

Cap Screw

1шт.

19

AH89069

Elbow Fitting

1шт.

20

TH108352

Hydraulic Hose

1шт.

21

AH89069

Elbow Fitting

1шт.

AE42718

Hydraulic Hose

1шт.

22

AE42718

Hydraulic Hose

1шт.

23

AE42282

Hydraulic Hose

1шт.

24

4203076

Hydraulic Hose

(SUB FOR TH109583)

1шт.

25

AT132003

Hydraulic Hose

1шт.

26

4203076

Hydraulic Hose

(SUB FOR TH109583)

1шт.

27

AE42281

Hydraulic Hose

1шт.

28

4217691

Isolator

(SUB FOR AT205851)

1шт.

29

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

1шт.

30

19M3142

Cap Screw

1шт.

31

12M7066

Lock Washer

1шт.

33

H77698

Tie Band

(SUB FOR M88199)

4шт.

37

H77698

Tie Band

6шт.

38

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

1шт.

39

Sleeve

( TY20965 NO LONGER AVAILABLE) (SUB TO DIREC T SHIP PROGRAM (ST-CZ) ORDER NUMBER XAS-6-19)

4шт.

40

AH89069

Elbow Fitting

1шт.
