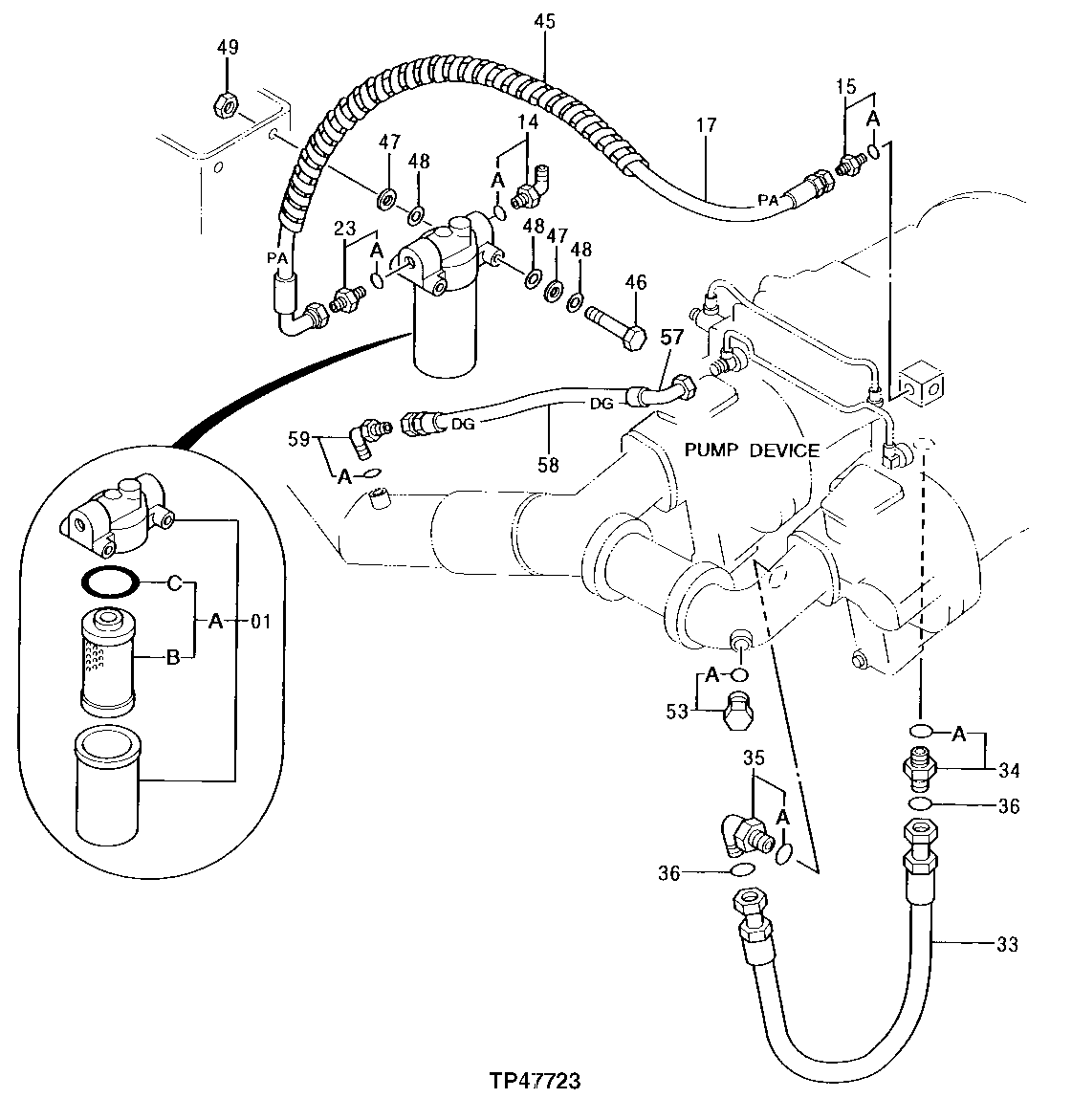

Запчасти John Deere 92DLC 178 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

1

4631976

Oil Filter

(SUB FOR TH108402, 4191300)

1шт.

1A

AT186554

Filter Element

(SUB FOR AT147821)

1шт.

1B

Filter Element

(NOT AVAILABLE FOR SERVICE)

1шт.

1C

AT264334

O-Ring

(SUB FOR TH100101)

1шт.

14

4200471

Elbow Fitting

(SUB FOR TH108399)

1шт.

14A

4506418

O-Ring

(SUB FOR U46489)

1шт.

15

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

15A

CH11570

O-Ring

1шт.

17

4283567

Hydraulic Hose

(SUB FOR AT66084)

1шт.

23

4200469

Adapter Fitting

(SUB FOR TH108400)

1шт.

23A

4506418

O-Ring

(SUB FOR U46489)

1шт.

33

AT107220

Hydraulic Hose

1шт.

34

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

1шт.

34A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

35

4157562

Elbow Fitting

(SUB FOR TH109540)

1шт.

35A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

36

T77858

O-Ring

2шт.

45

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

1шт.

46

J901005

Bolt

(SUB FOR AT205812)

2шт.

47

4218231

Washer

(SUB FOR AT205854)

4шт.

48

24M7101

Washer

6шт.

49

14M7274

Nut

2шт.

53

AT318013

Drain Plug

(SUB FOR 4093624 ) (SUB FOR TH102536)

1шт.

53A

M800650

Packing

1шт.

57

AH89069

Elbow Fitting

1шт.

58

AT132513

Hydraulic Hose

1шт.

59

4154670

Elbow Fitting

(SUB FOR TH100951)

1шт.

59A

M800650

Packing

1шт.
