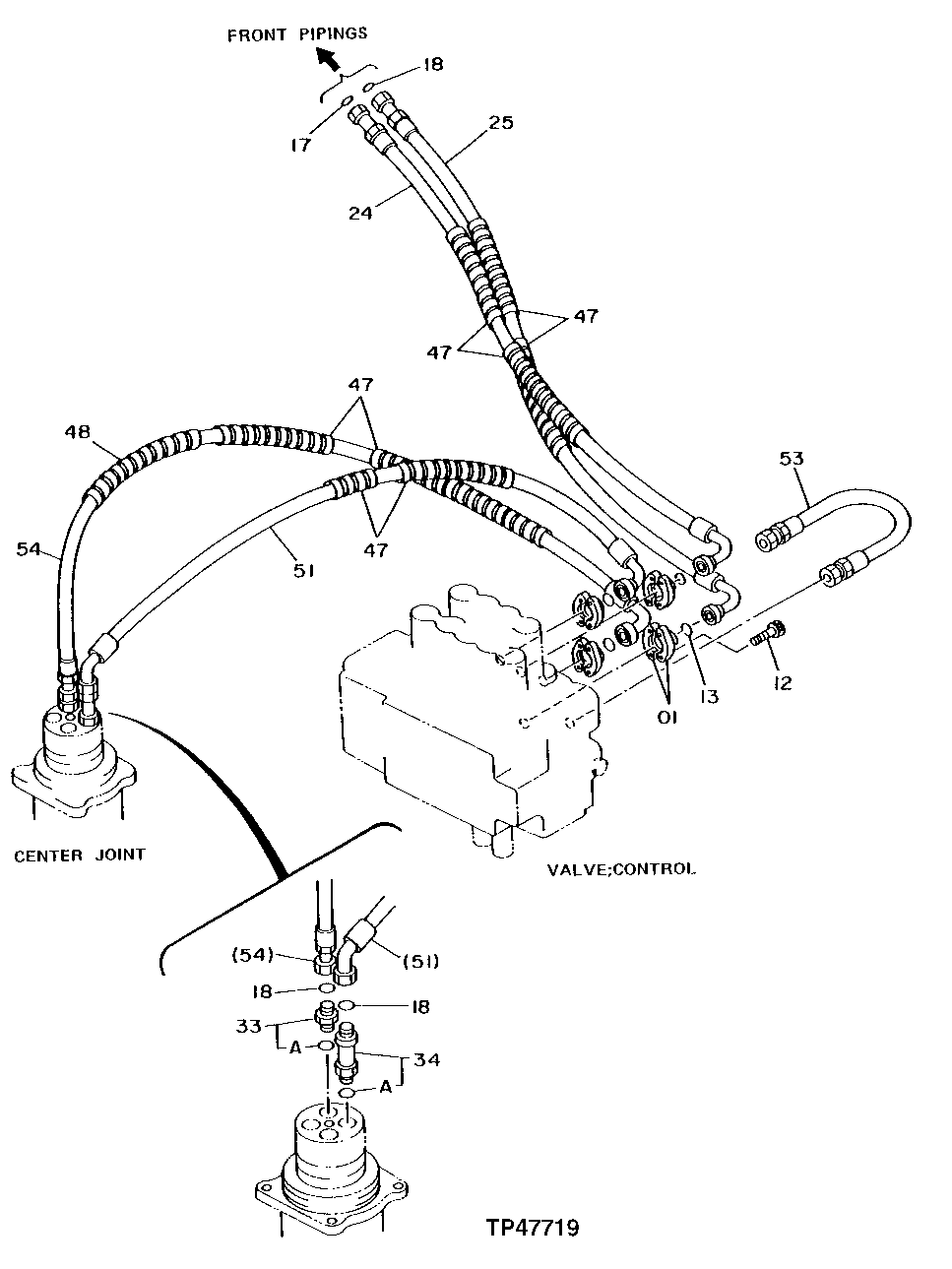

Запчасти John Deere 92DLC 175 - MAIN PIPINGS 3360 HYDRAULIC SYSTEM

1

R29424

Flange Fitting

8шт.

12

19M8337

Screw

16шт.

13

T59014

O-Ring

4шт.

17

T77858

O-Ring

1шт.

18

T76938

O-Ring

3шт.

24

4219341

Hydraulic Hose

(SUB FOR AT205858)

1шт.

25

4217303

Hydraulic Hose

(SUB FOR AT205848)

1шт.

33

4189601

Adapter Fitting

(SUB FOR AT107394)

1шт.

33A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

34

4198411

Adapter Fitting

(SUB FOR TH111292)

1шт.

34A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

47

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

10шт.

48

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

1шт.

51

4219338

Hydraulic Hose

(SUB FOR AT205856)

1шт.

53

AR78829

Hydraulic Hose

1шт.

54

4219339

Hydraulic Hose

(SUB FOR AT205857)

1шт.
