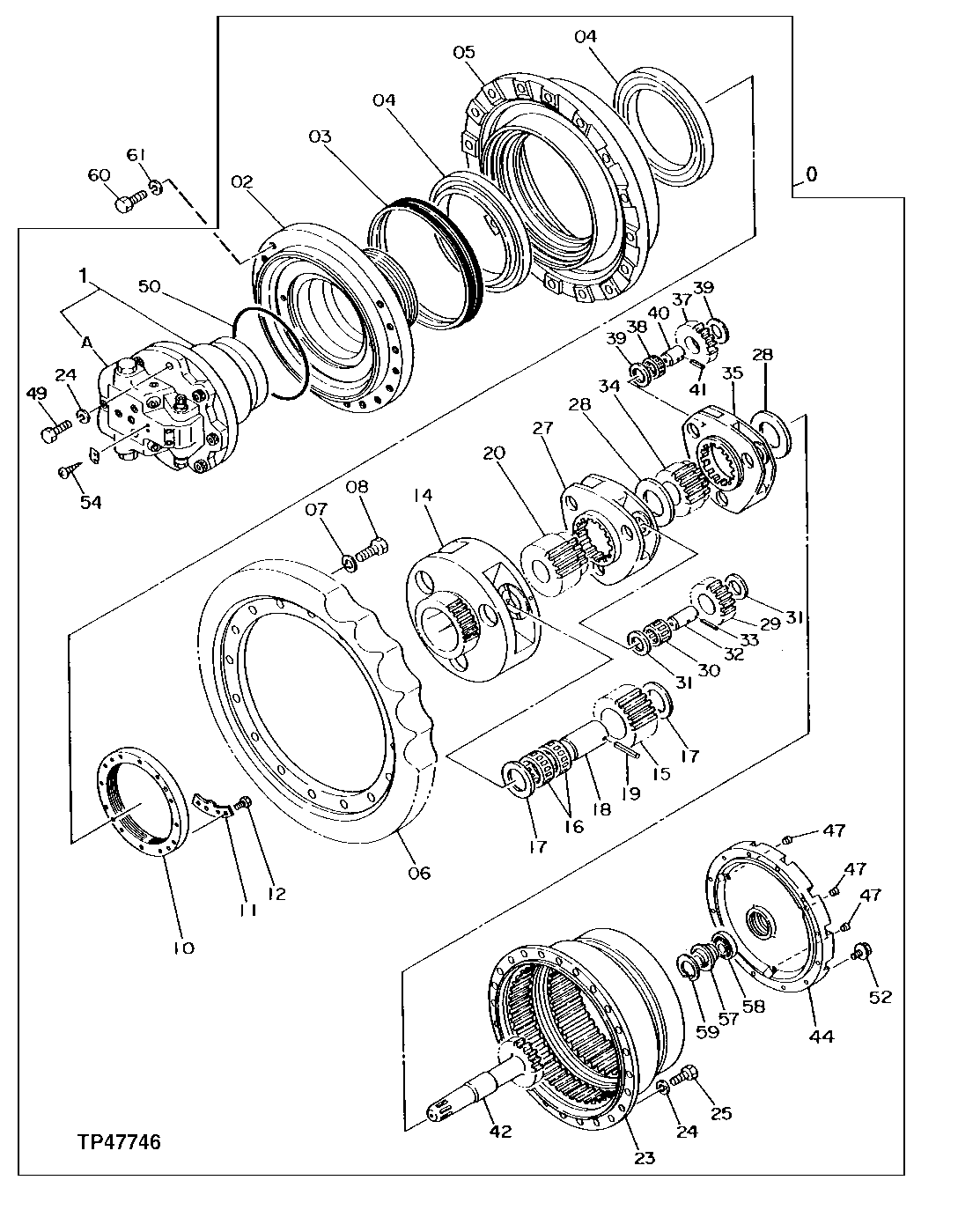

Запчасти John Deere 92DLC 8 - Travel Device 0260 HYDRAULIC SYSTEM

0

Device

( AT205845 NO LONGER AVAILABLE FOR SERVICE)

2шт.

1

AT217342

Hydraulic Motor

(SUB FOR AT205915), NLA, (ORDER 9100519EX)

1шт.

9100519

Hydraulic Motor

NLA, (ORDER 9100519EX)

1шт.

9100519EX

Hydraulic Motor Reman

(REMAN FOR 9700519 OR AT217342)

1шт.

1A

9083458

Flow Control Hyd. Valve

(SUB FOR AT205917)

1шт.

2

1010465

Housing

(SUB FOR TH111089)

1шт.

3

4066695

Seal

1шт.

4

TH111245

Tapered Roller Bearing

2шт.

5

1010466

Drum

(SUB FOR TH111090)

1шт.

6

AT317663

Drive Sprocket

(SUB FOR TH111091 OR 1010467)

1шт.

7

12M7070

Lock Washer

20 mm

16шт.

8

19M8224

Cap Screw

M20 X 60

16шт.

10

3036256

Nut

(SUB FOR TH111143)

1шт.

11

4192974

Lock Plate

(SUB FOR TH111244)

1шт.

12

19M7872

Cap Screw

M12 X 25

2шт.

14

1010468

Planet Pinion Carrier

(SUB FOR TH111092)

1шт.

15

3036257

Gear

(SUB FOR TH111144)

3шт.

16

TH111246

Needle Bearing

6шт.

17

4219595

Thrust Washer

60 X 98 X 1.200 mm (SUB FOR AT131899)

6шт.

18

4192978

Pin Fastener

60 X 100 mm (SUB FOR TH111248)

3шт.

19

4192021

Spring Pin

8 X 85 mm (SUB FOR TH111240)

3шт.

20

3036258

Sun Gear

(SUB FOR TH111145)

1шт.

23

1010537

Ring Gear

(SUB FOR AT206036)

1шт.

24

12H294

Lock Washer

5/8"

26шт.

25

19M7489

Cap Screw

M16 X 45

24шт.

27

1010471

Housing

(SUB FOR AT206035)

1шт.

28

4401293

Spacer

(SUB FOR TH111249)

2шт.

29

3036259

Gear

(SUB FOR AT206043)

3шт.

30

TH111232

Cylindrical Roller Bearing

3шт.

31

4192982

Plate

(SUB FOR T107736)

6шт.

32

4144558

Bushing

(SUB FOR TH102298)

3шт.

33

34M7014

Spring Pin

5 X 60 mm

3шт.

34

3036261

Sun Gear

(SUB FOR AT206044)

1шт.

35

2025965

Housing

(SUB FOR AT206039)

1шт.

37

3041961

Gear

(SUB FOR AT206045)

3шт.

38

TH111202

Cylindrical Roller Bearing

3шт.

39

4192983

Plate

(SUB FOR TH111250)

6шт.

40

4192977

Bushing

15 X 35 X 43 mm (SUB FOR TH111247)

3шт.

41

4192020

Spring Pin

4 X 55 mm (SUB FOR TH111239)

3шт.

42

2025966

Shaft

(SUB FOR AT206040)

1шт.

44

2032092

Cover

(SUB FOR AT206041)

1шт.

47

94-2013

Fitting Plug

(SUB FOR TH100648)

3шт.

49

19M8350

Cap Screw

M16 X 85

2шт.

50

4193063

O-Ring

229.400 X 3.100 mm (SUB FOR TH111252)

1шт.

52

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

12шт.

19M8011

Cap Screw

M12 X 30

12шт.

54

37H99

Screw

0.100" X 1/4"

2шт.

57

4278011

Pin Fastener

(SUB FOR AT130955)

1шт.

58

4278168

Bearing

(SUB FOR AT130956)

1шт.

59

40M7228

Snap Ring

1шт.

60

19M7892

Cap Screw

M20 X 80

34шт.

61

12M7070

Lock Washer

20 mm

34шт.
